Desiccant Pouch Inserter

CVC 1103

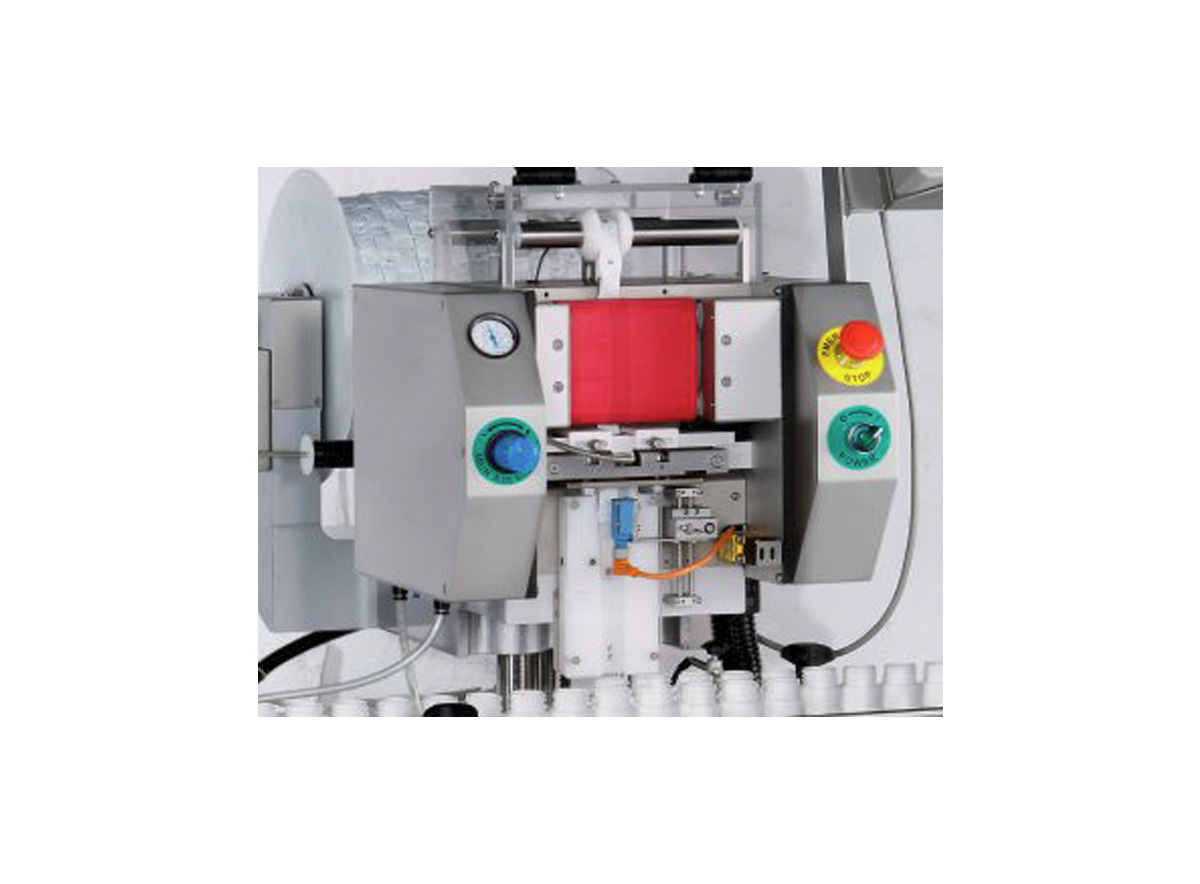

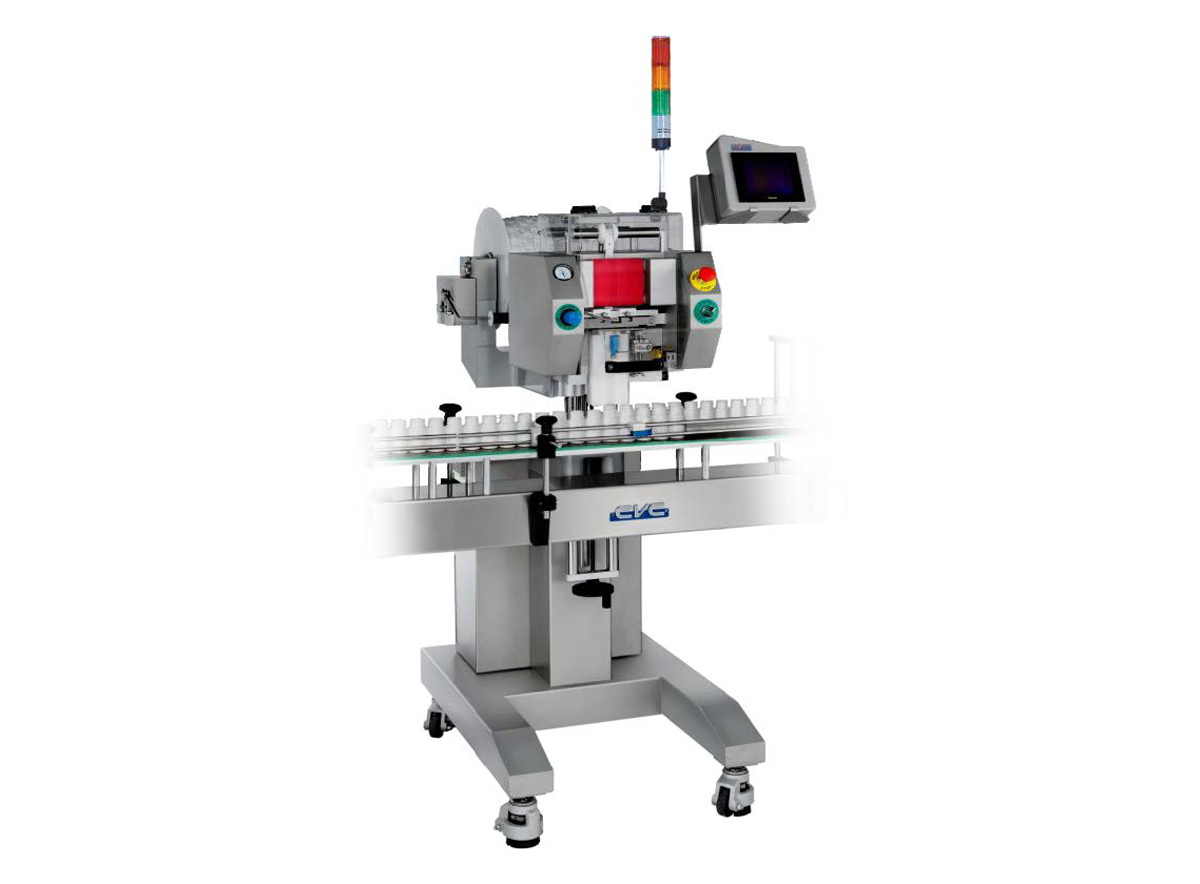

The CVC 1103 Pouch Desiccant Inserter is a compact highly cost-effective means to insert desiccants or oxygen absorbents into a variety of bottles and containers. The system cuts packets from a roll and inserts them into containers at speeds of up to 120 bottles per minute. The CVC 1103 is Siemens PLC controlled with ser vo motor. Options include tower lamp and feed screw for higher speed applications.

STANDARD FEATURES

  • Safety guards with automatic machine stop
  • Pneumatic gating for positive stop
  • Bottle backlog sensor
  • 1 to 5 Pouch Insertions per bottle
CVC 1103
CVC 1103
INTEGRATED PRODUCT HOPPER
INTEGRATED PRODUCT HOPPER
Previous Next Play Pause

TECHNICAL SPECIFICATIONS

AVAILABLE OPTIONS:

  • Infeed feed screw system for high speed applications
  • Tower lamp
  • 21 CFR Part 11 License

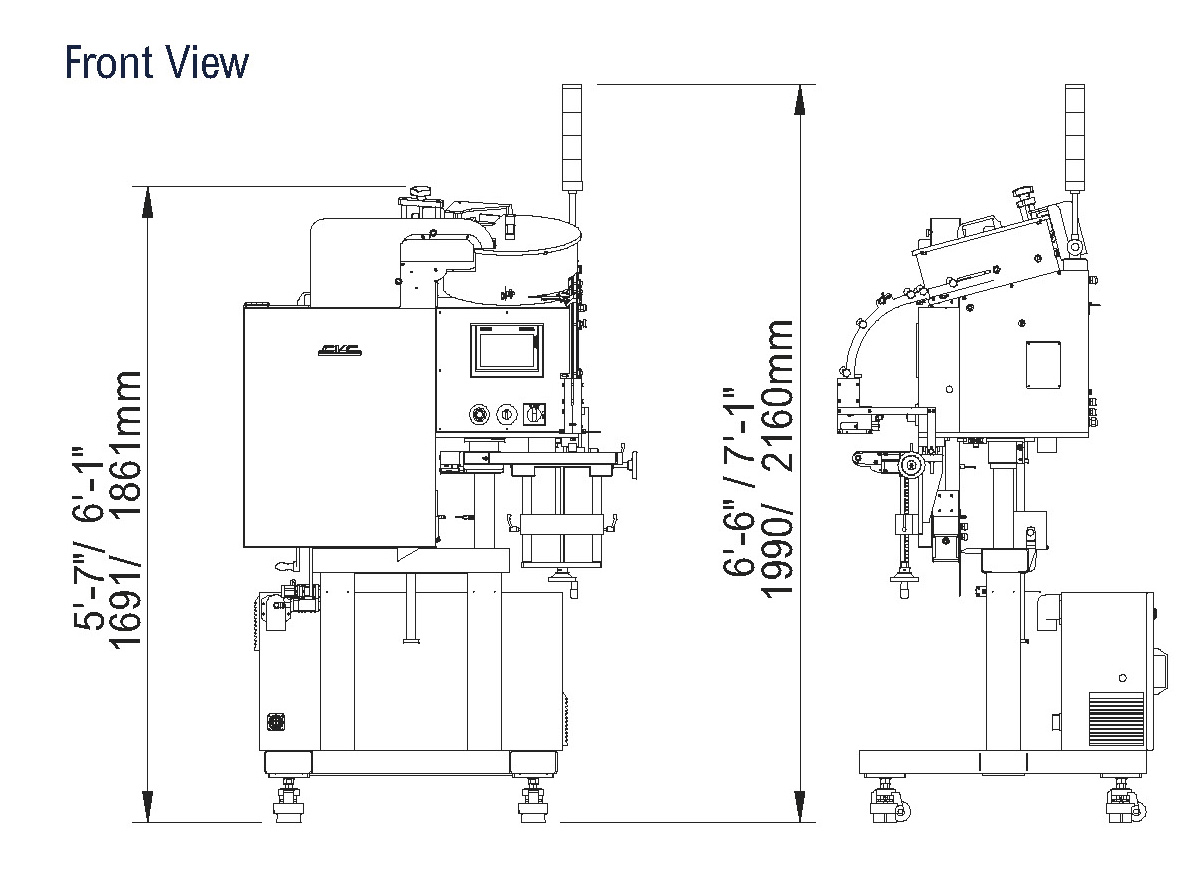

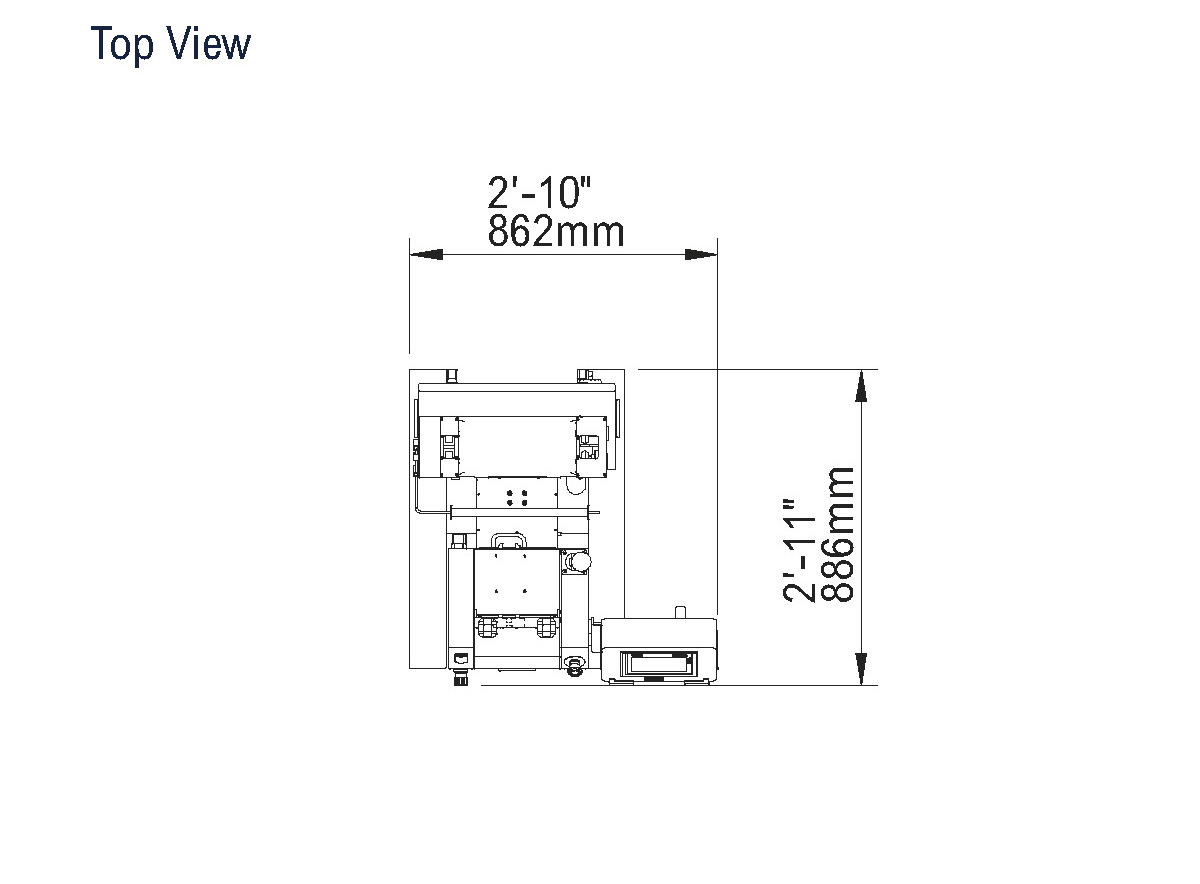

MACHINE LAYOUTS:


The dimensions shown are for standard machine. The conveyor can be extended: the length may vary based on selected options. This machine can run independently or be integrated into an automated packaging line. All CVC equipment is covered by a one-year par ts warranty. Full Warranty details are included in our equipment proposals or can be found on our website.


Technical Specifications CVC 1103 Technical Specifications
Power source 220 VAC, 50/60 Hz., 1 Phase
Power Consumption 350 W
Air Pressure 87 psi
Consumption Machine Dimensions 886mm x 862mm x 1539-1964mm (L x W x H)
Speed Up to 120 Bottles per Minute (BPM)
Width 17 – 30 mm(Applicable pouch sizes)
Length 33 – 73 mm(Applicable pouch sizes)
Thickness 3 – 10 mm(Applicable pouch sizes)
