The CVCL52 Label Inspection and Ejection System is the best solution for meeting customers’ requirements of label management. With the solution, customers can simply save time and increase labeling productivity through automatic label coding, bar code reading, vision inspection and ejection.
STANDARD FEATURES
Can be integrated into CVC 302 Wrap Around Labeler (factory installed only)
Label Inspection and Ejection are up to 250 labels per min. (for label 40mm long)
On-line label inspection and ejection for： - labels with incorrect bar codes, - labels with wrong code-dating imprinted - labels without code-dating imprinted.
Labels are continuously dispensing to CVC 302 Wrap Around Labeler without stopping
Unqualified labels are ejected and accumulated by a label reel without causing waste labeled bottles
Label ejection verification check
Type 304 Stainless steel and cast aluminum alloy construction, meeting GMP regulations

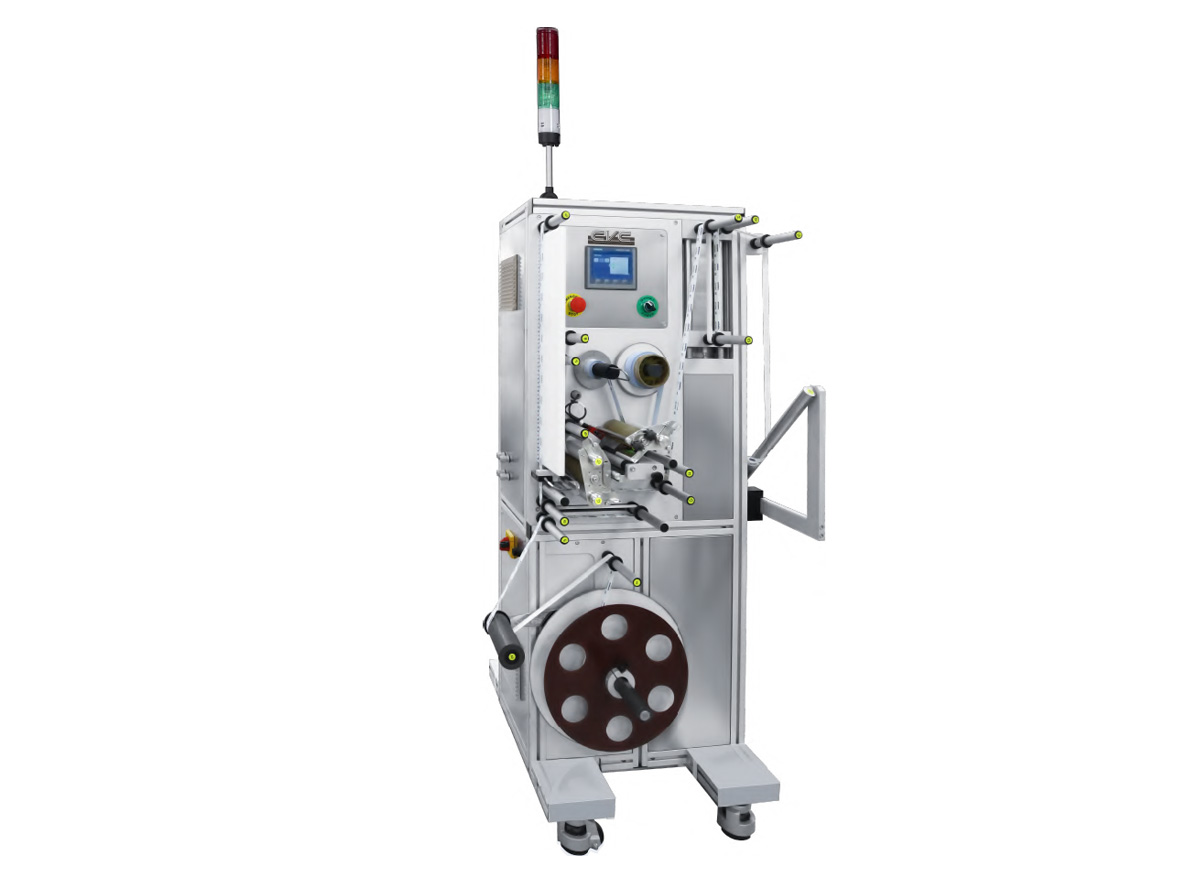

cvc-l52

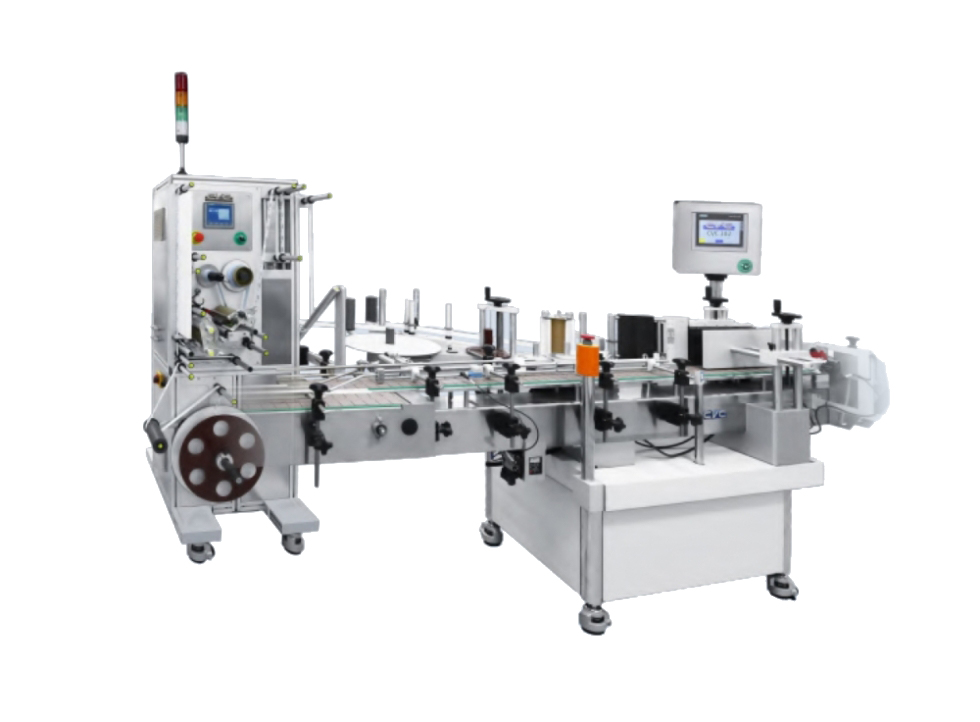

CVC L52 integratges into CVC 302 Labeler

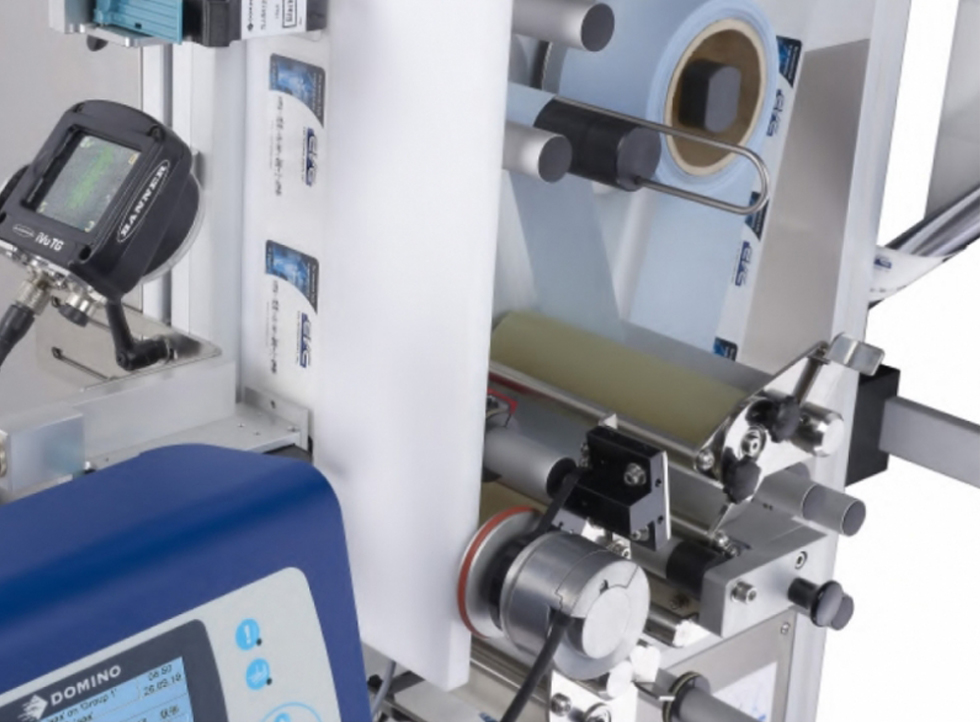

Label Inpsection and Ejection
TECHNICAL SPECIFICATIONS
AVAILABLE OPTIONS:
C70 Hot Stamp Printer
Thermal Transfer Overprinter, Ink Jet Printer
21CFR Part 11 compliance
Pharma Code Reader
Pharma Code / Bar Code and code-dating imprint Verification System (using Camera (OCV system))
Label Roll Inner Diameter: 35mm(1 1/2")
3-Color stack light
MACHINE LAYOUTS:
The dimensions shown are for standard machine. This machine can be integrated into CVC 302 wrap around labeler. All CVC equipment is covered by a one-year warranty. Full Warranty details are included in our equipment proposals.
Technical Specifications
CVC L52 Technical Specifications
Type
C
Productivity
Dispensing Speed：Max. 50 M/min
(subject to trial confirmation)
Ejection Output：Max. 250 LPM
Applicable Product
CVC 302 (Siemens S7-1200)
Power
220 V, 50/60 HZ, 1 PH
Power Consumption
1,300 VA (5 A)
Air Pressure
4~6 kgf/cm2 (Bar)
Air Consumption
57 NL/min (2 CFM)
Consumption Machine Dimensions
834x 736x 2,145 mm (Including tower lamp) (2’-9”x 2’-5”x 7’-1”)
