CVC Technologies, Inc. USA. Leading pharma packaging.

TABLET/CAPSULE COUNTER

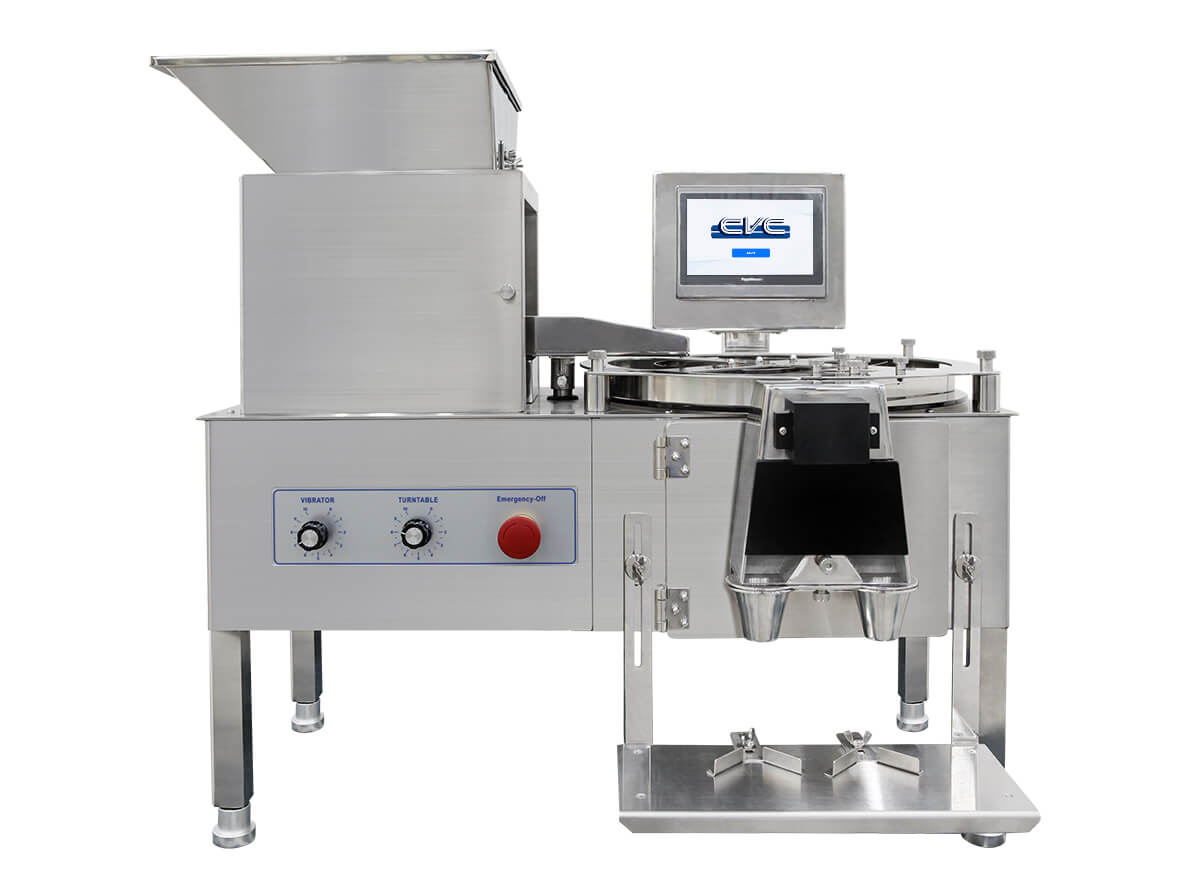

CVC SC202-TS

The CVC SC202-TS is equipped with two bottle nozzles for continuous counting and filling. One bottle is always in place for filling. The operator simply picks up a full bottle and replaces it with an empty bottle.

STANDARD FEATURES

  • Tablet (round): 1,000- 2,000 PPM
  • Tablet (round): 1,000- 2,000 PPM
  • Operator can easily setup and adjust machine parameters from the touch screen.
  • Equipped with the unique designed sensor to prevent miscount caused by voltage change or direct light to the counting head.
  • The counting speed is adjustable according to the operator.
  • Easy operator movement to place two empty bottles and take two filled bottles away each time.
  • Stainless steel construction, meets cGMP standards.
CVC SC202-TS
CVC SC202-TS
CVC SC202-TS
CVC SC202-TS
Previous Next Play Pause

TECHNICAL SPECIFICATIONS

AVAILABLE OPTIONS:

  • A dust accumulator is attached inside of the machine to protect machine count accuracy.
  • PC cover for disc and vibrating chute.

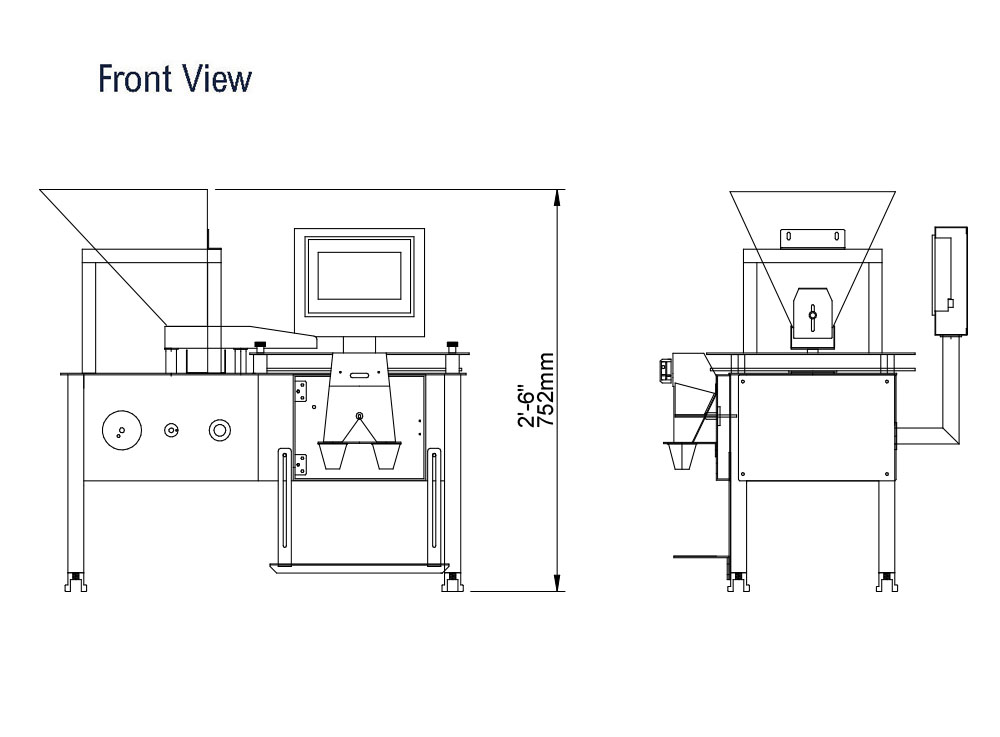

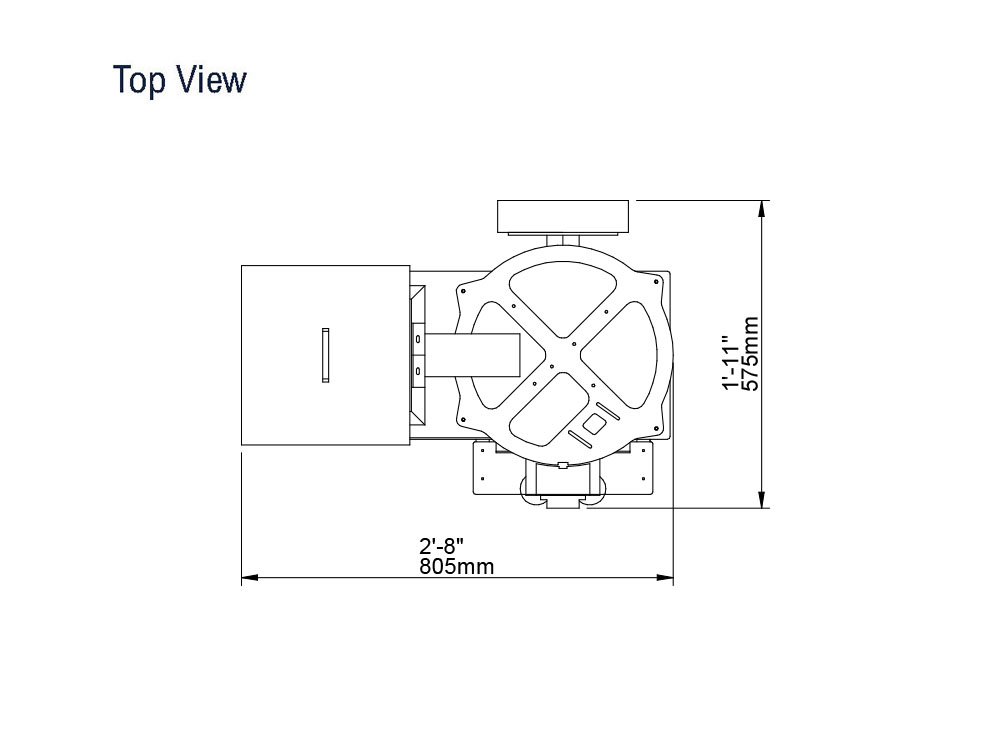

MACHINE LAYOUTS:


Technical data contained in this material are not binding and may be subject to change without prior notice.

Note: The actual rates may var y significantly depending on the following: products, product characteristics, required fill counts, quantity or volume, and bottle dimensions.

Technical Specifications CVC SC202-TS Technical Specifications
Productivity Round Tablet: 1,000-2,000 PPM / Capsule: 600-1,000 PPM (subject to trial confirmation)
Applicable Size Bottle:
Dia.: Ø30-100 mm (1 1/4” to 4”)
I.D. of Mouth: Ø25-100 mm (1” to 4 ”)
Height: 50-200 mm (2” to 8”)
Product:
Dia: Ø5-20 mm ( 1/4” to 3/4”)
Length: 5-30 mm ( 1/4” to 1 1/4”)
Width: 5-20 mm ( 1/4” to 3/4”)
Power source 110 V/ 220 V, 50/60 HZ, 1 PH
Power Consumption 110V: 200 VA (1.9 A)/ 220 V: 200 VA (0.9 A)
Air Pressure N/A
Air Consumption N/A
Consumption Machine Dimensions 855 x 498 x 824 mm (approx) (2’-10” x 1’-8” x 2’-8”)
Machine Weight 62 kg (137 lbs)
Noise Level ≦ 78 dB

CATALOG DOWNLOAD

Ask about this product
