Desiccant Canister Inserter

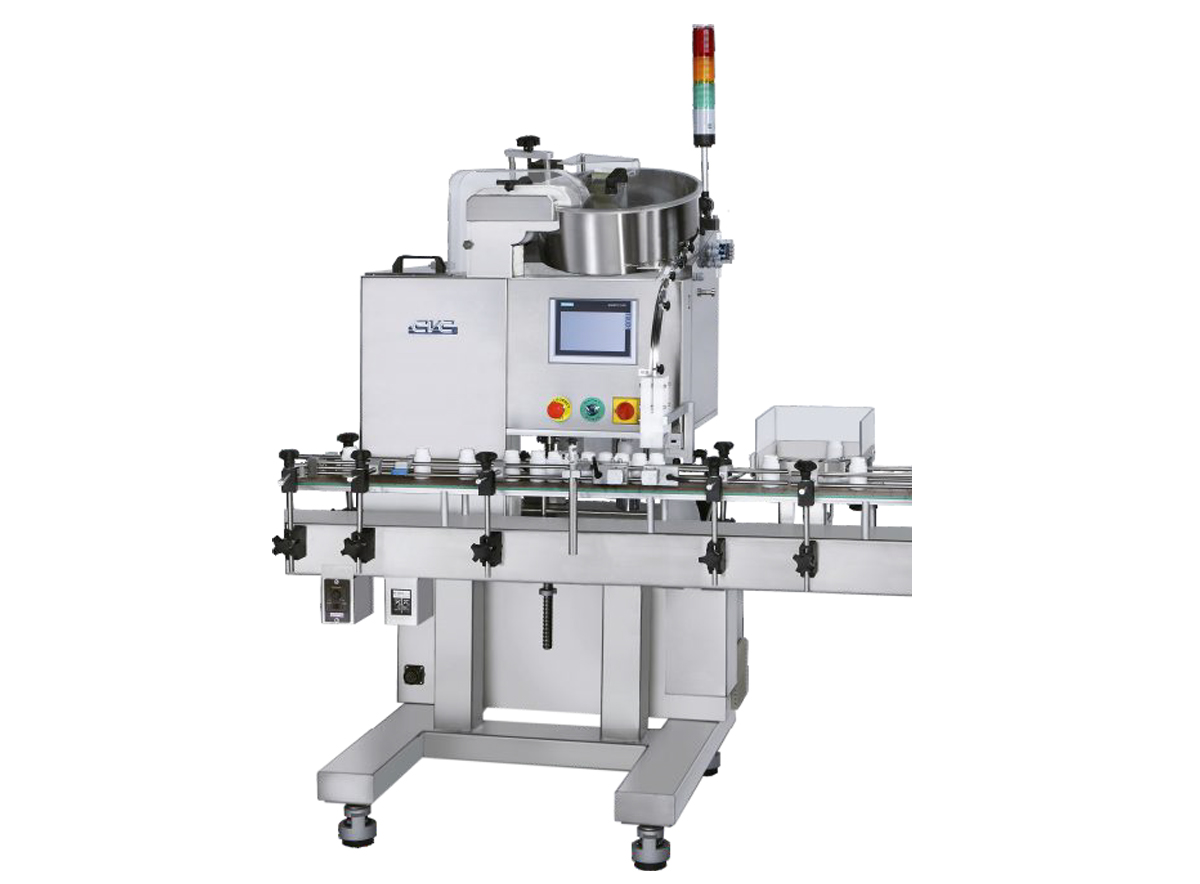

CVC 1112

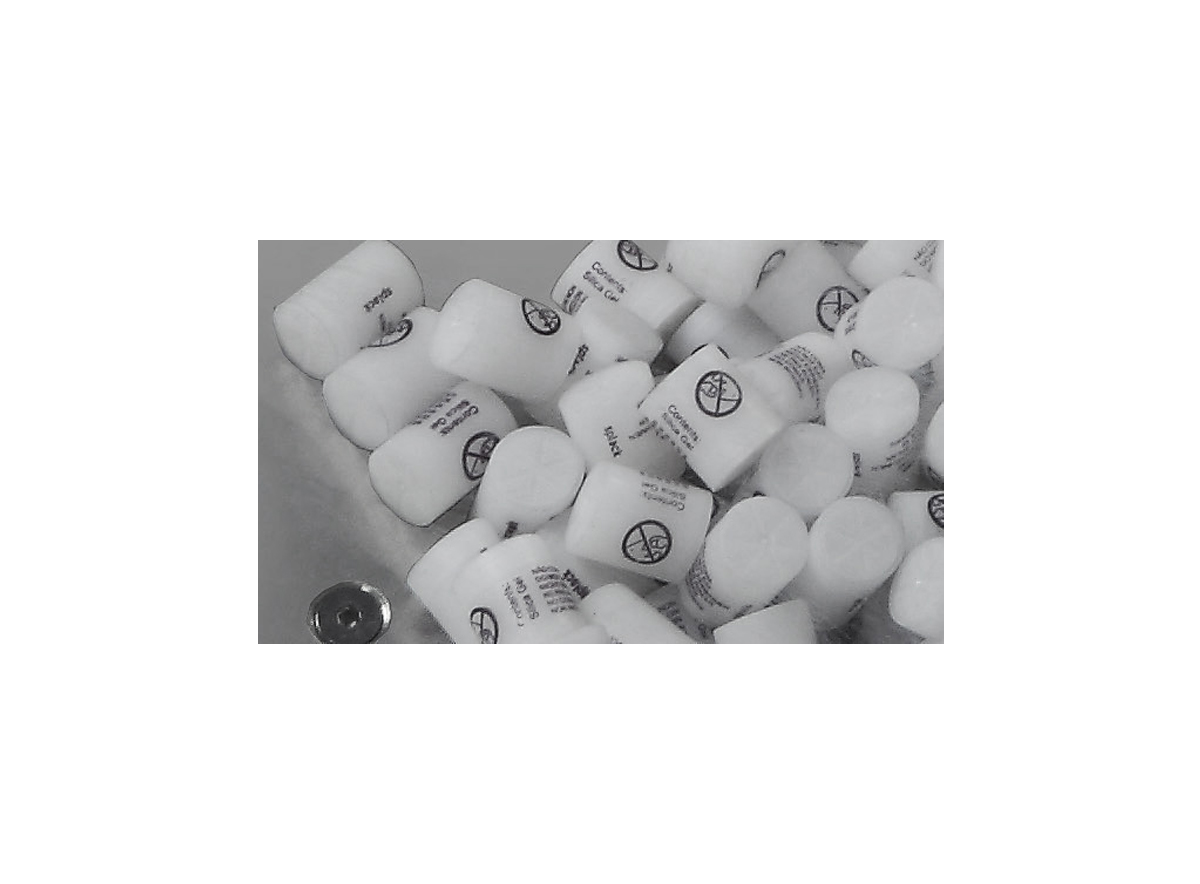

The CVC 1112 Canister Desiccant Inserter sorts and dispenses desiccant barrels into containers at speeds of up to 150 bottles per minute. The system is designed to comply with cGMP requirements and is controlled by Siemens PLC and servo motor.

STANDARD FEATURES

  • Servo Motor & Siemens PLC Controlled
  • No-bottle no-fill
  • Safety guards with automatic machine stop
  • Pneumatic gating for positive stop
  • cGMP compliance
CVC 1112
CVC 1112

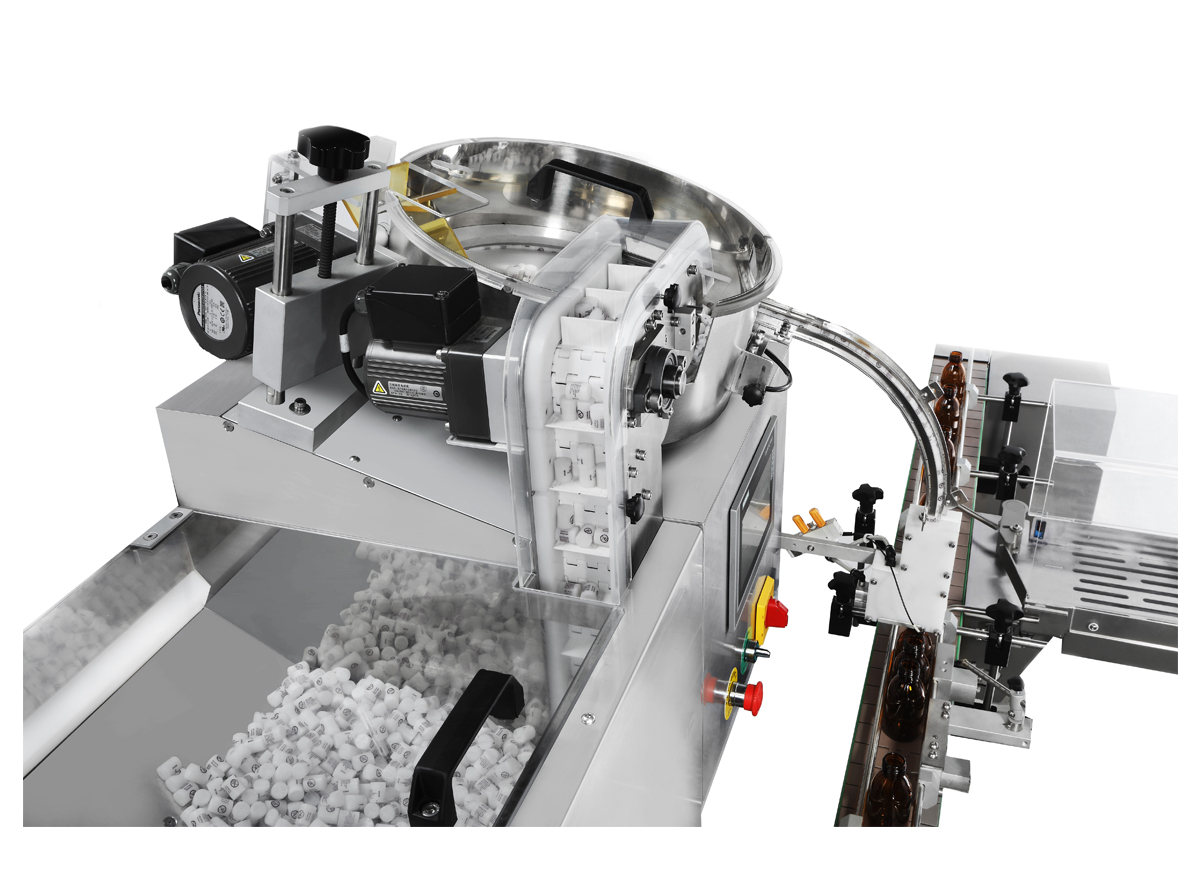

INTEGRATED PRODUCT HOPPER
INTEGRATED PRODUCT HOPPER
CVC 1112
CVC 1112
Previous Next Play Pause

TECHNICAL SPECIFICATIONS

AVAILABLE OPTIONS:

  • Infeed feed screw system for high speed applications
  • Tower lamp
  • 21 CFR Part 11 License

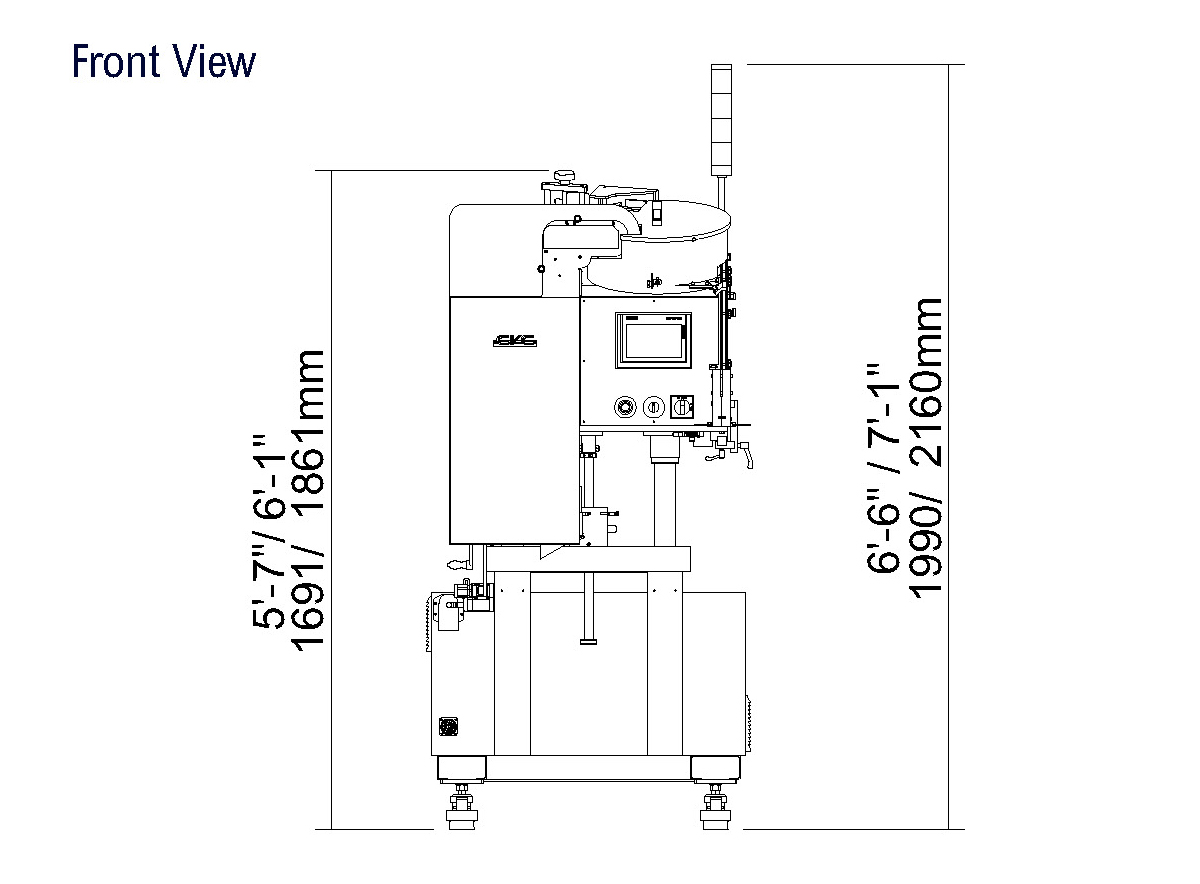

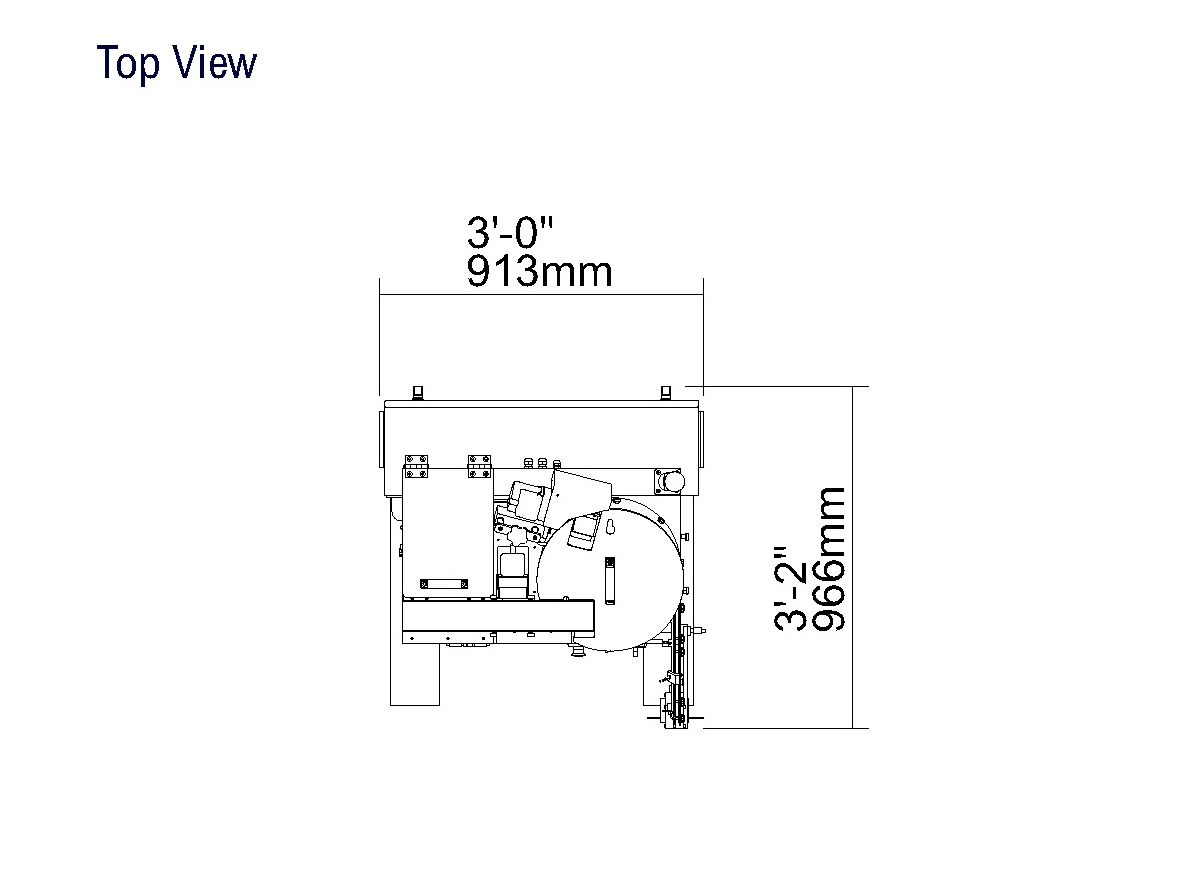

MACHINE LAYOUTS:

The dimensions shown are for standard machine. The conveyor can be extended: the length may var y based on selected options. This machine can run independently or be integrated into an automated packaging line. All CVC equipment is covered by a one-year parts warranty. Full Warranty details are included in our equipment proposals or can be found on our website.


1.25 : 1.00, Canister diameter cannot equal canister height.

Note: Rate is based on 1 gram canister with one insertion per bottle and canister size is 14mm Diam. X 18mm Ht.

Technical Specifications CVC 1112 Technical Specifications
Capacity CVC1112: Up to 150 Bottles per minutes (BPM)
Canister Height 18 -25 mm
Canister Diameter 14-20 mm
Desiccant canister (Ht/diam. Ratio) 1.25 : 1.00
Power source 220 VAC / 50/60Hz., 1 Phase
Power Consumption 350 W
Air Pressure 87 psi
Consumption Machine Dimensions 913mm (L) x 966mm (W) x 2160mm (H)
