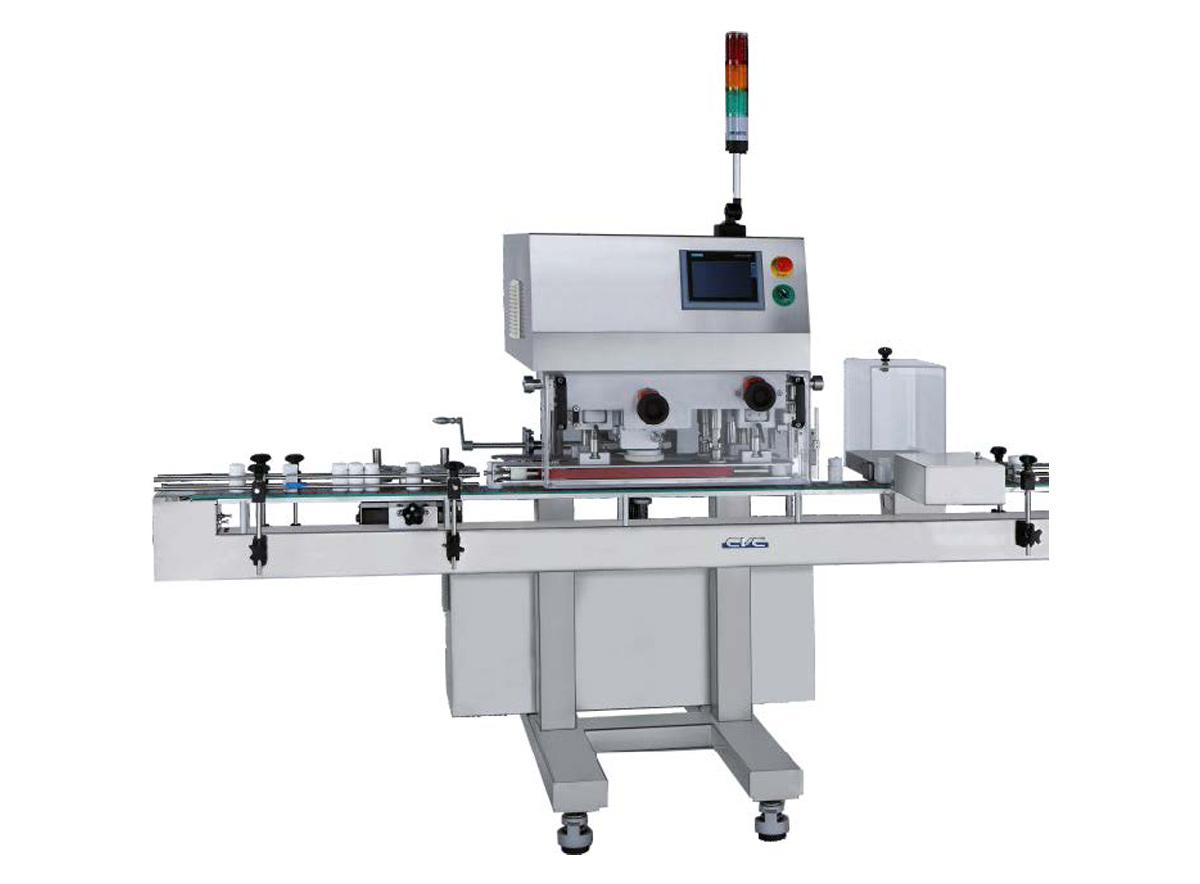

In-Line Cap Retorquer

CVC 1208

The CVC 1208 In-Line Cap Retorquer is designed to retighten screw-on caps after induction sealing at speeds of up to 120 bottles per minute.

The 1208 is Siemens PLC controlled. Options include tower lamp, servo torque metering, reject, and reject verification.

STANDARD FEATURES

  • PLC Controlled
  • Cap tightening station with 1 sets of spindles
  • ISO 9001:2000 certified
CVC 1208
CVC 1208
Previous Next Play Pause

TECHNICAL SPECIFICATIONS

AVAILABLE OPTIONS:

  • Motorized sanitary conveyor (6" wide belt available)
  • Tower lamp, torque metering (servo motor)
  • Rejection system, reject confirmation
  • 21 CFR Part 11 License

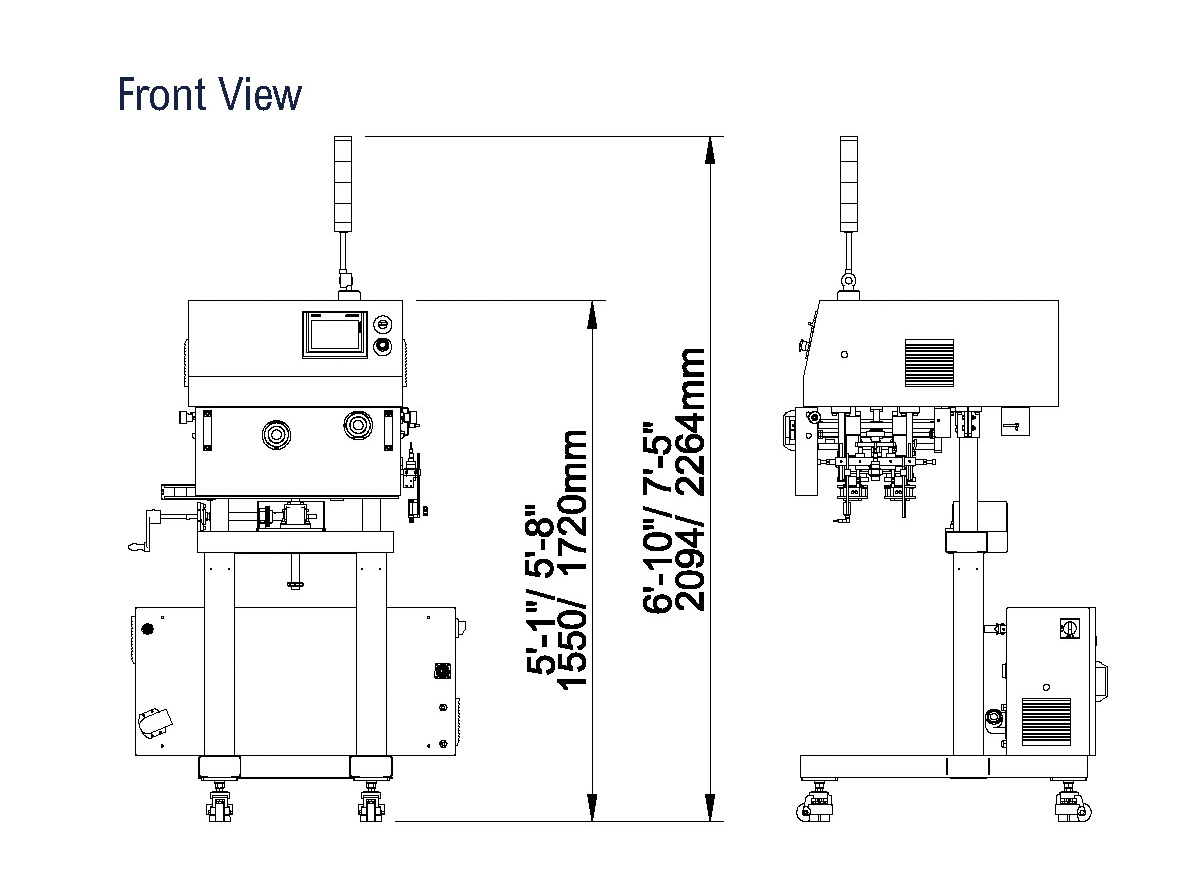

MACHINE LAYOUTS:


The dimensions shown are for standard machine. The conveyor can be extended: the length may var y based on selected options. This machine can run independently or be integrated into an automated packaging line. All CVC equipment is covered by a one-year par ts warranty. Full Warranty details are included in our equipment proposals or can be found on our website.


Technical Specifications CVC 1208 Technical Specifications
Productivity Up to 180-200 PPM
(subject to trial confirmation)
Applicable Size Bottle:
Dia: Ø30-110 mm (1 3/4" to 4 1/4”)
with Cap Height: 50~200mm (2” to 8 1/2")
Power source 220 V, 50/60Hz, 1PH
Power Consumption 484 VA (2.2 A)
Air Pressure 6 bar (87 psi)
Air Consumption 28.5 NL/min (1 CFM)
Machine Dimensions ( L x W x H ) 1,115 x 1,075 x 2095-2,265mm (3’-8” x 3’-6“ x 6’-10”to7’-5”)
(approx)
Machine Weight 319 kg (5,368 lbs)
Noise Level ≤ 60 dB
