CVC Technologies, Inc. USA. Leading pharma packaging.

In-Line Capper

CVC 1206H

The CVC 1206H Capper is a very flexible machine designed to apply and tighten screw-on caps onto containers at rates of up to 150 bottles per minute.

The CVC 1206 is Siemens PLC controlled. The system is designed with two pair of belt tightening belt assemblies. Options include tower lamp, hopper level control, cap inspection (level cap, foil seal, and no cap), reject, and reject verification.

  • Built to cGMP standards
  • Stainless steel construction
  • Quick and easy change over

STANDARD FEATURES

  • Siemens PLC Controlled
  • Cap tightening station with 2 belt tightening systems
  • 9.1 cu ft. integrated cap hopper elevator
  • ISO 9001:2000 certified

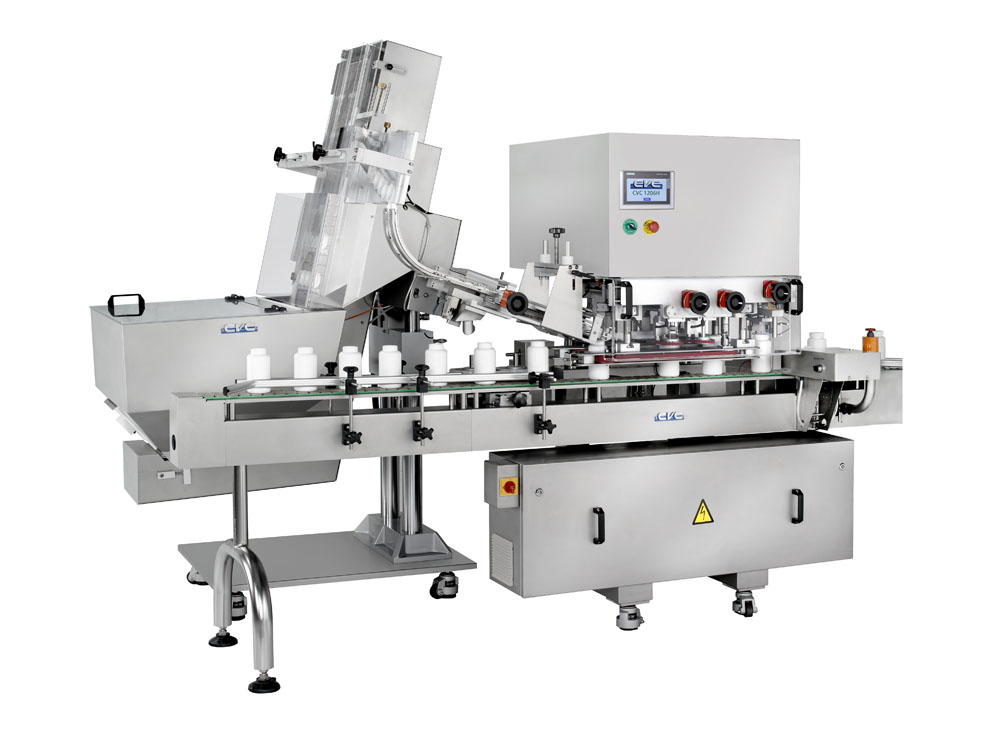

CVC 1200W & CVC 1206H
CVC 1200W & CVC 1206H

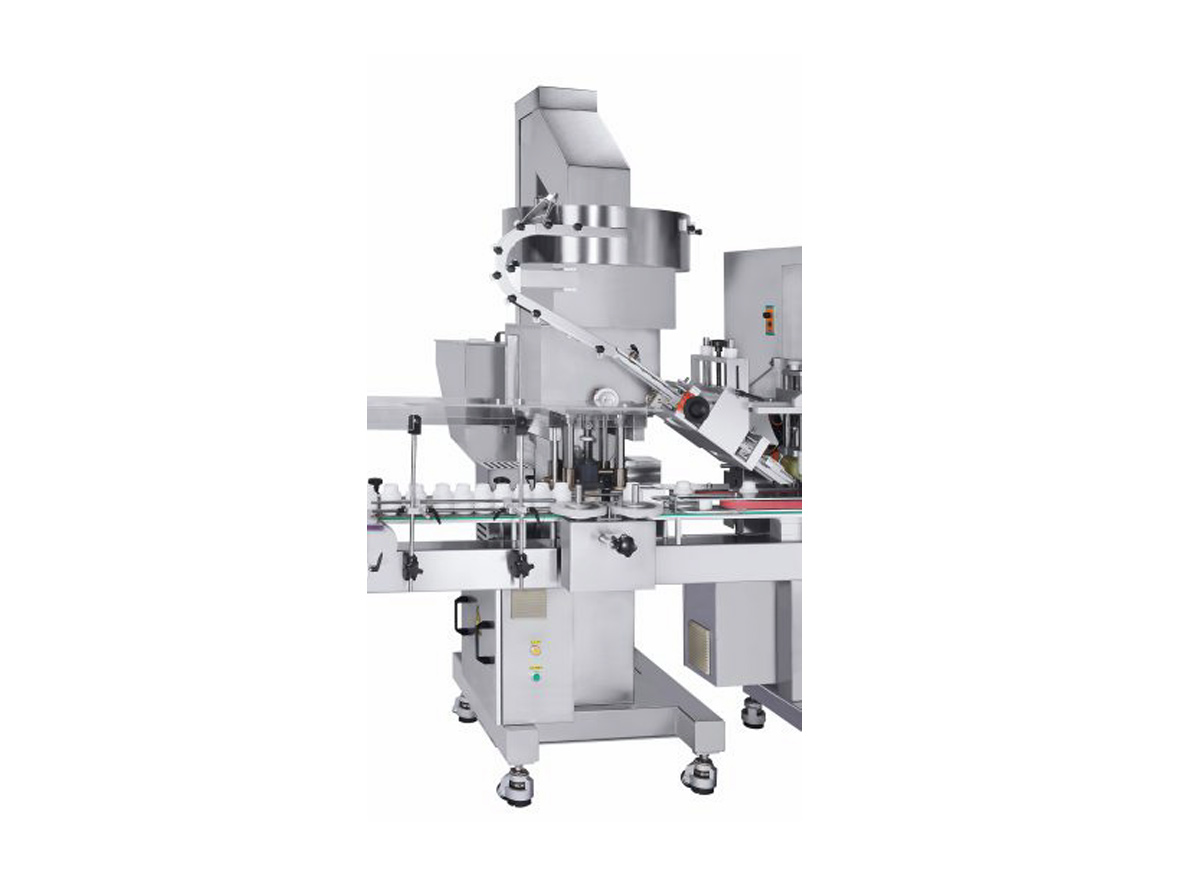

CVC 1200K CENTRIFUGAL CAP FEEDER
CVC 1200K CENTRIFUGAL CAP FEEDER
Previous Next Play Pause

TECHNICAL SPECIFICATIONS

AVAILABLE OPTIONS:

  • Motorized sanitary conveyor (6" wide belt available)
  • Tower lamp, hopper level control
  • Cap inspection package (level cap, no cap, foil presence)
  • Rejection system, reject confirmation
  • Dual-belt gripping system
  • 21 CFR Part 11 License

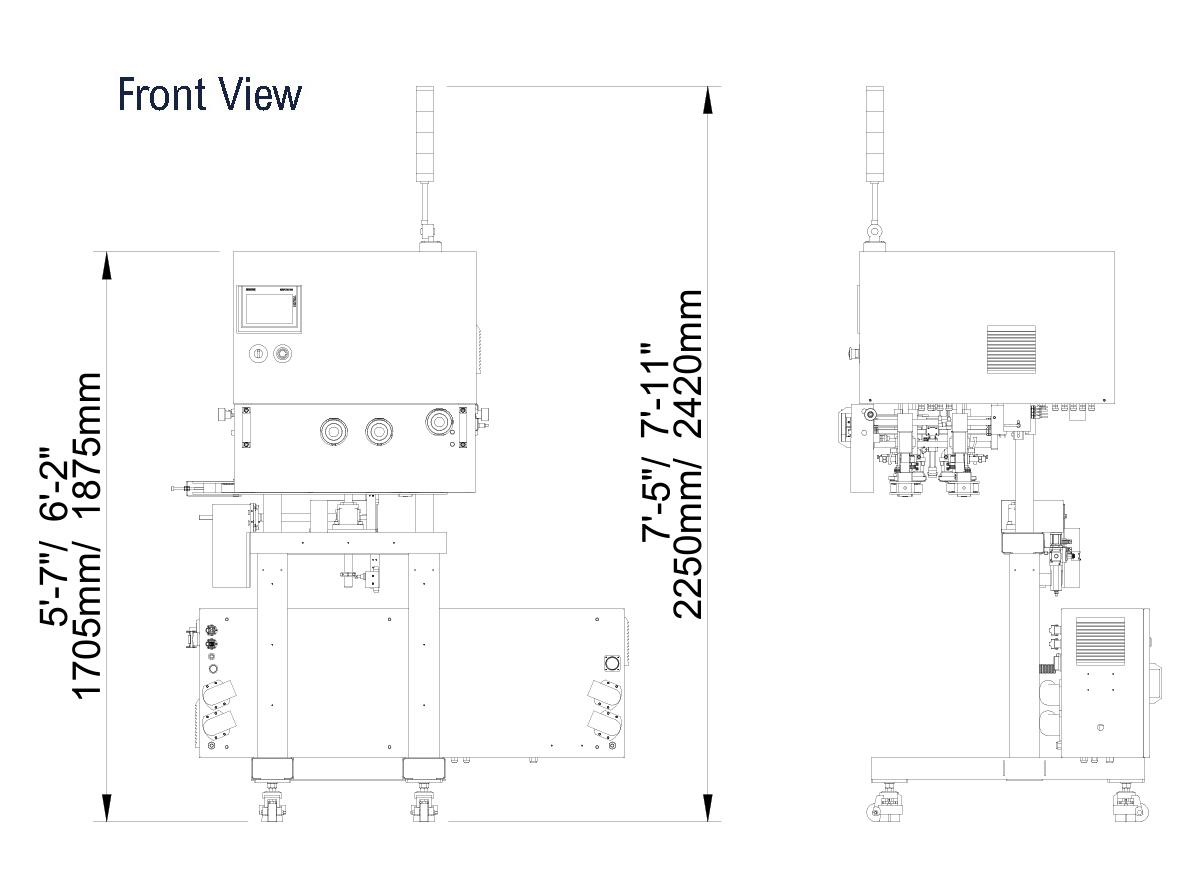

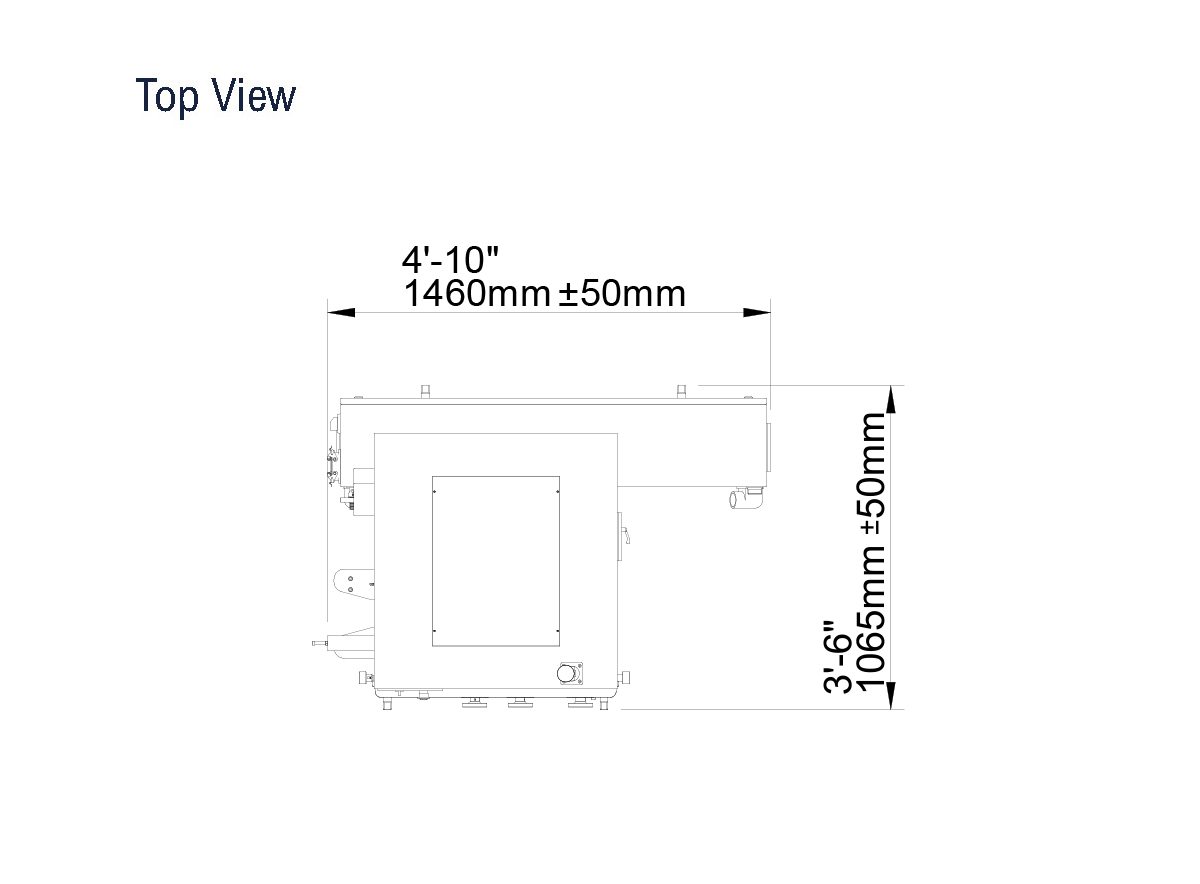

MACHINE LAYOUTS:


The dimensions shown are for standard machine. The conveyor can be extended: the length may var y based on selected options. This machine can run independently or be integrated into an automated packaging line. All CVC equipment is covered by a one-year parts warranty. Full Warranty details are included in our equipment proposals or can be found on our website.


Technical Specifications CVC 1206H + CVC1200W Technical Specifications
Type U4
Productivity Up to 180-200 BPM
(base on 40-100 cc round bottle,subject to trial confirmation)
Applicable Size Cap:
Dia.: Ø30-80 mm (1 1/4" to 3") ; Height: 10-25 mm(3/8" to 1")
Bottle:
Dia.: Ø30-110 mm (1 1/4" to 4 1/4")
with Cap Height: 50-220 mm (2” to 8 1/2")
Hopper Capacity 220 L (7.8 Cuft)
Power source 220 V, 50/60 HZ, 1 PH
Power Consumption CVC 1206H: 1,320 VA (6 A)
CVC 1200W: 220 VA (1 A)
Air Pressure 6 bar (87psi)
Air Consumption CVC 1206H: 84 NL/min (2.9 CFM)
CVC 1200W: 168 NL/min (5.8 CFM)
Machine Dimensions ( L x W x H ) CVC 1206H: 1,460 x 1,065 x 2,420 mm (4’-10” x 3’-6” x 7’-11”)
CVC 1200W: 1,385x 1,225x 2,290 mm (4’-7”x 4’x 7’-6”)
Machine Weight CVC 1206H: 385 kg (849 lbs)
CVC 1200W: 435 kg (959 lbs)
Noise Level ≤ 60 dB
