Cotton Inserter

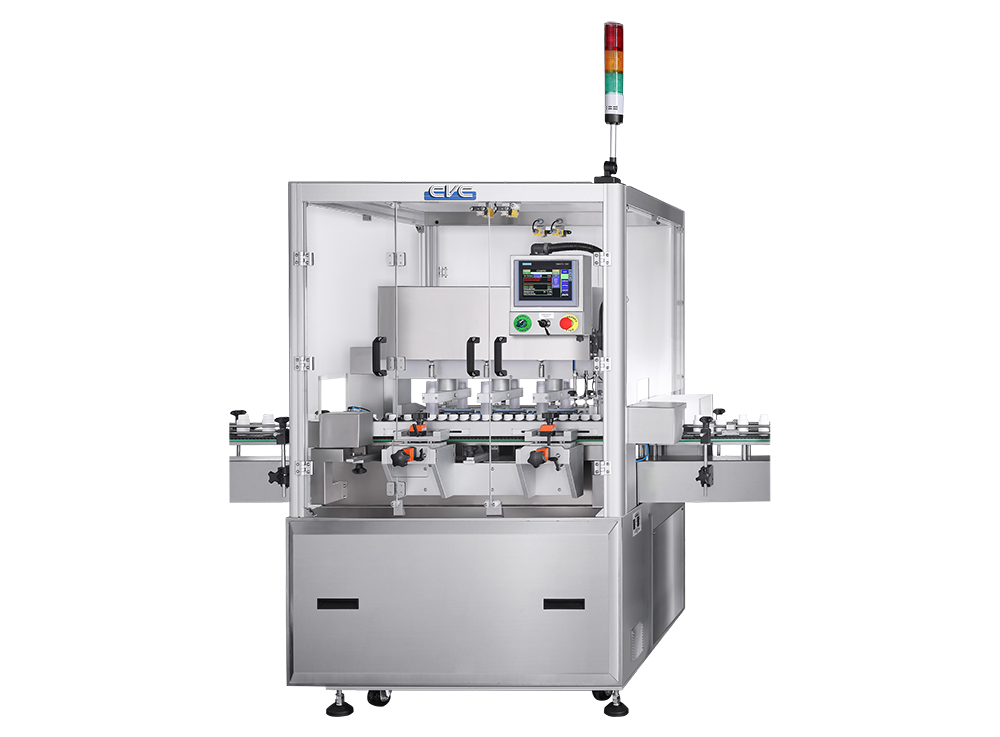

CVC 1117H

The CVC 1117H of Cotton Inserter is designed to insert polyester, rayon, or cotton coil into containers at speeds up to up to 200-210 bottles per minute. The CVC 1117H is Siemens PLC controlled and Servo Motor driven. Options include tower lamp, missing cotton in bottle detection, reject, and reject verification. The cotton piece length can be set from 60mm to 150mm.

STANDARD FEATURES

  • Built to cGMP standards
  • Stainless steel construction
  • Quick and easy change over
  • Servo motor and PLC controlled
  • Memory capacity for over 50 jobs
  • Interlocked safety shields
  • Servo motor driven screw feeder
  • 1-9 insertions per bottle
  • ISO 9001:2000 Certified
  • Type 304 stainless steel frame, enclosure
  • Type 316L stainless steel product contact parts
  • ISO 9001 : 2015 certified.
CVC 1117H
CVC 1117H

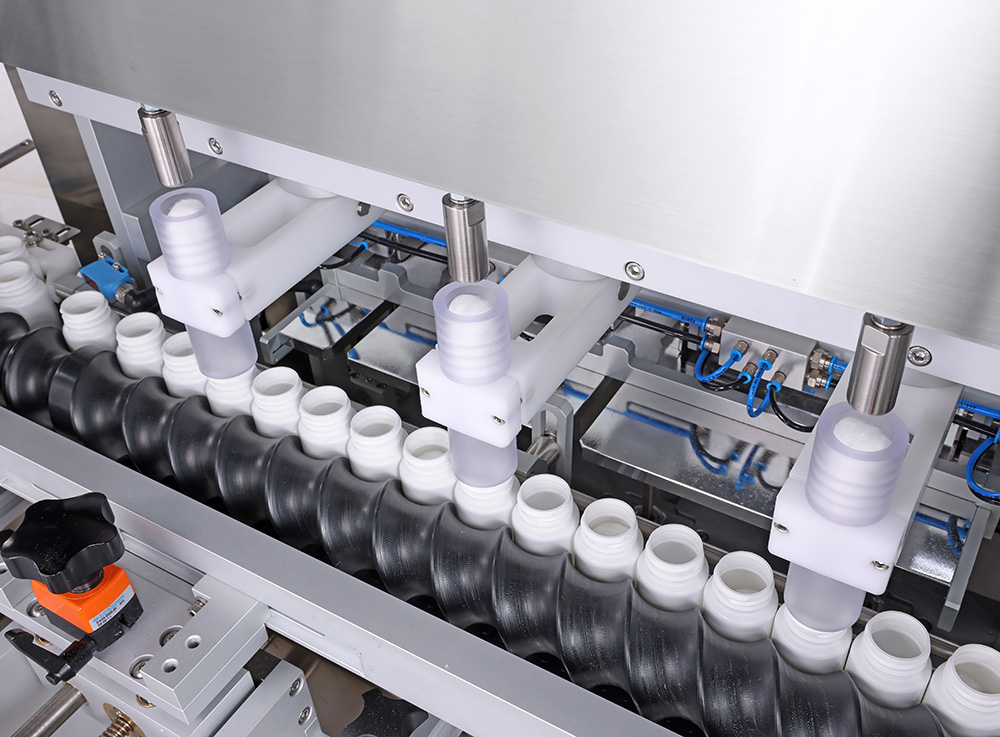

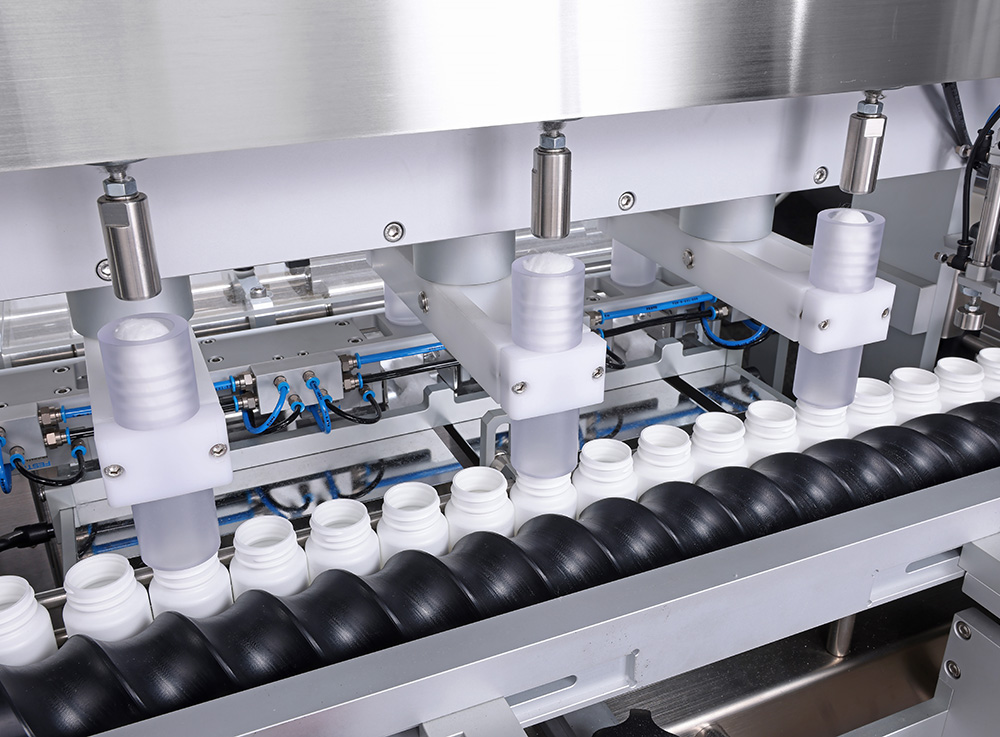

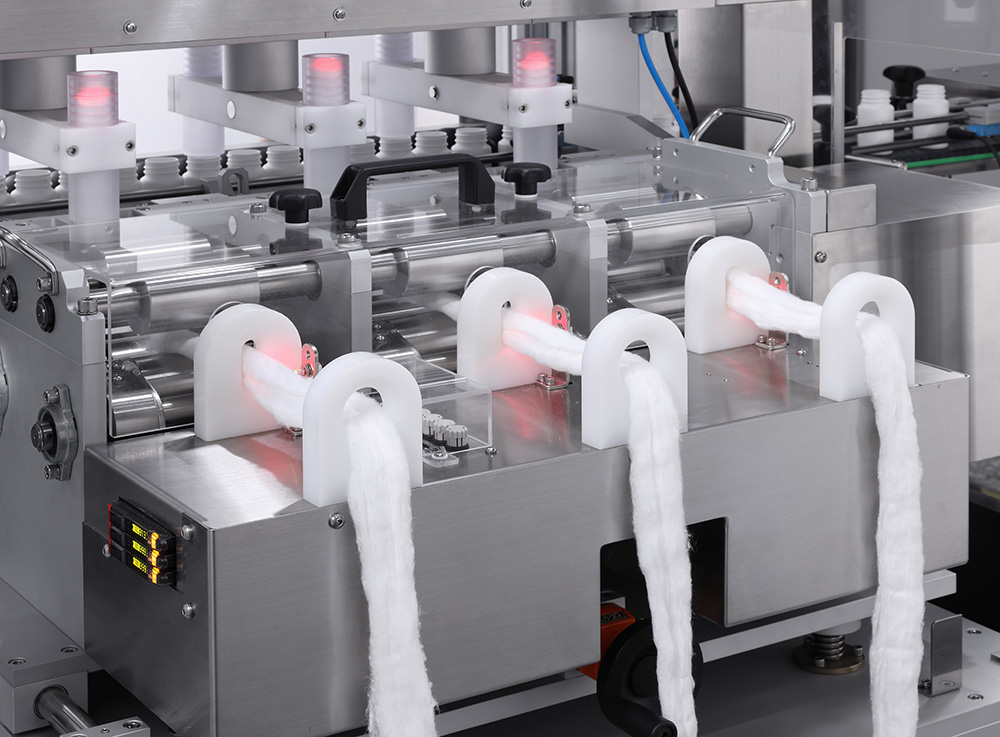

Two-way insertion turret: 3 stations
Two-way insertion turret: 3 stations

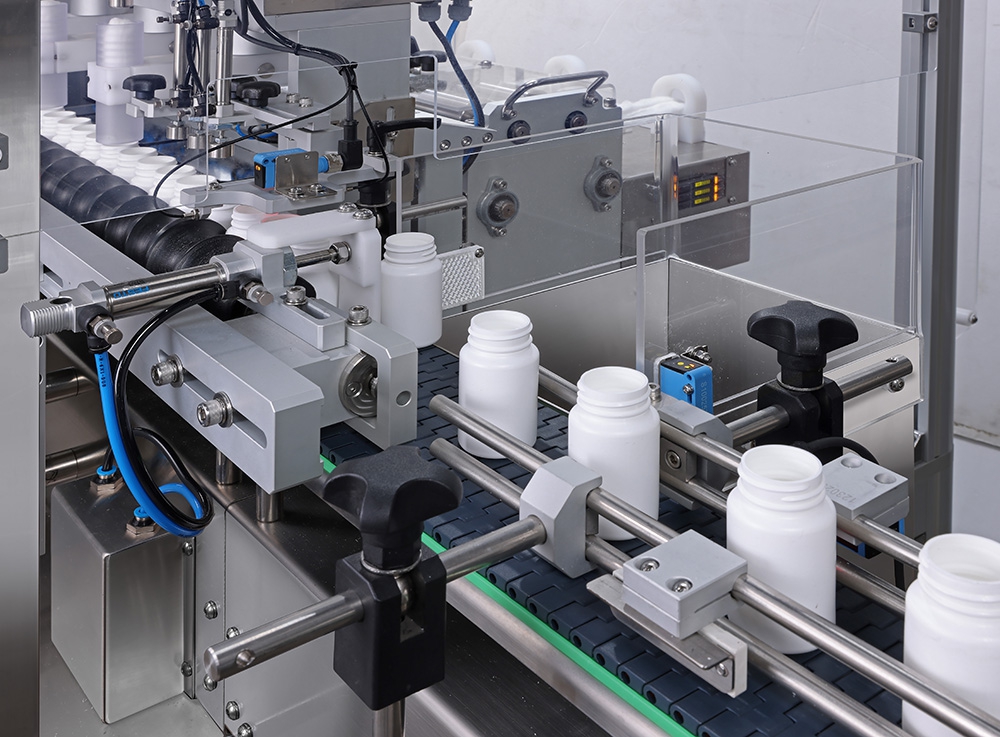

Bottle Reject Station
Bottle Reject Station
Previous Next Play Pause

TECHNICAL SPECIFICATIONS

AVAILABLE OPTIONS:

  • Cotton holding bin
  • Bottle reject system
  • Integrated conveyor
  • Conveyor extension
  • Cotton presence inside bottle check
  • 3-Color stack tower light
  • 21 CFR Part 11 License
  • OPC UA server for data collection



MACHINE LAYOUTS:

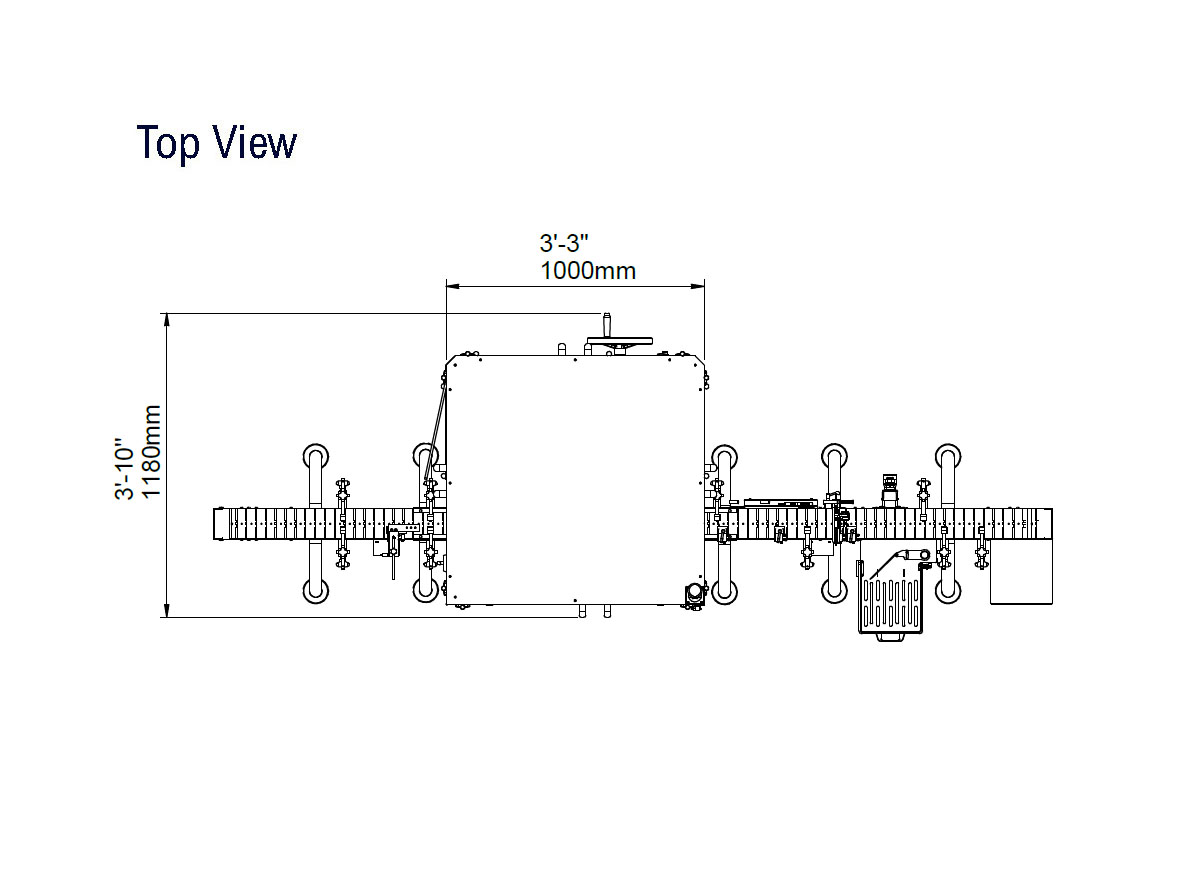

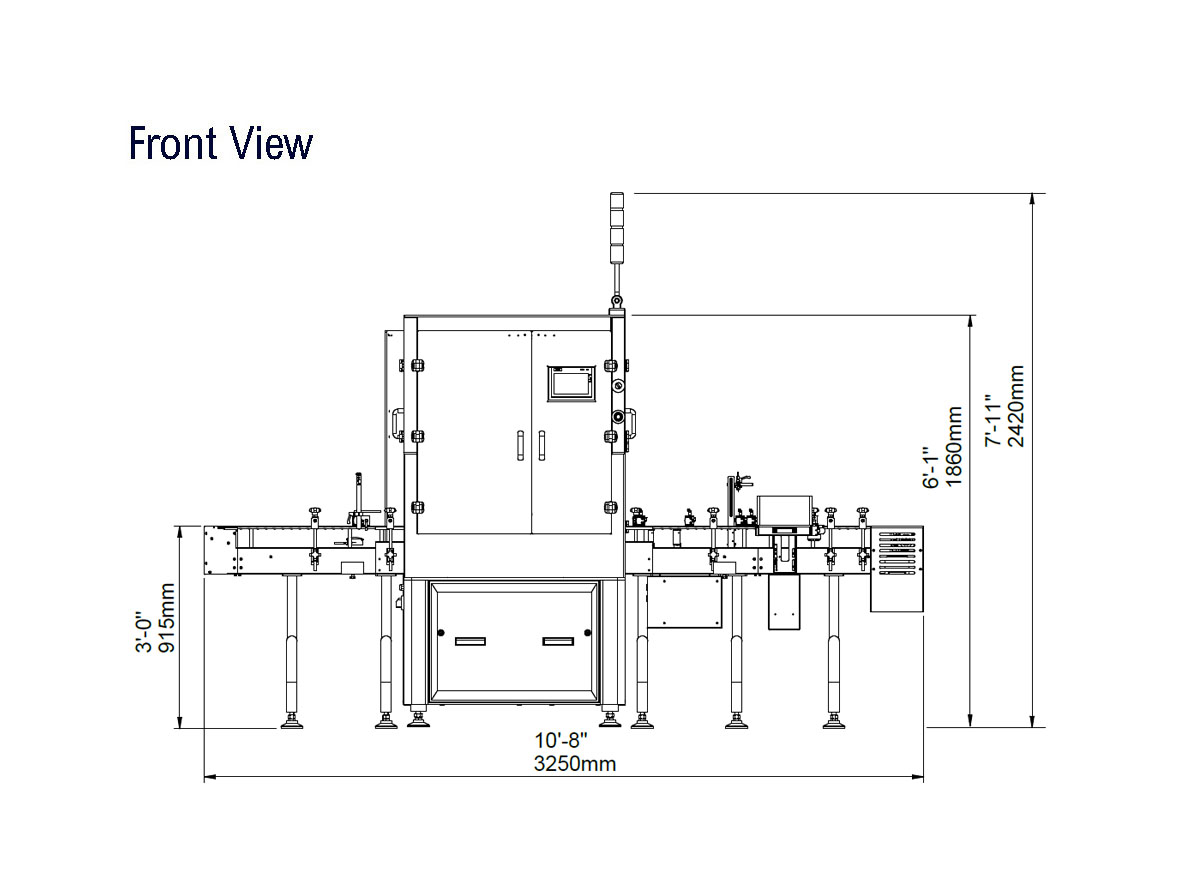

The dimensions shown are for standard machine. The conveyor can be extended: the length may vary based on selected options. This machine can run independently or be integrated into an automated packaging line. All CVC equipment is covered by a one-year par ts warranty. Full Warranty details are included in our equipment proposals or can be found on our website


Technical Specifications CVC 1117H Technical Specifications
Type U4
Productivity Up to 200-210 BPM (based on one insertion of cotton per bottle for 60 ml round bottle and cotton piece length: 70 mm, subject to trial confirmation)
Applicable Size Bottle:
Dia.: Ø30-110 mm (1¼" to 4¼")
I.D. of Mouth: Ø25-50 mm (1” to 2”)
Height: 50-200 mm (2" to 7 3⁄4”)
Cotton:
Weight: 7-16 g/yard
Length: 60-150 mm (2¼" to 5 3⁄4”)
Power source 220 V, 50/60 HZ, 1 PH
Power Consumption 890 VA (4.1 A)
Air Pressure 6 bar (87 psi)
Air Consumption 566 NL/min (20 CFM)
Consumption Machine Dimensions 1,000 x 1,180 x 1,860 mm (3’-3” x 3’-10” x 6’-1”)
Machine Weight 500 kg (1,103 lbs)
Noise Level ≦80 dB
