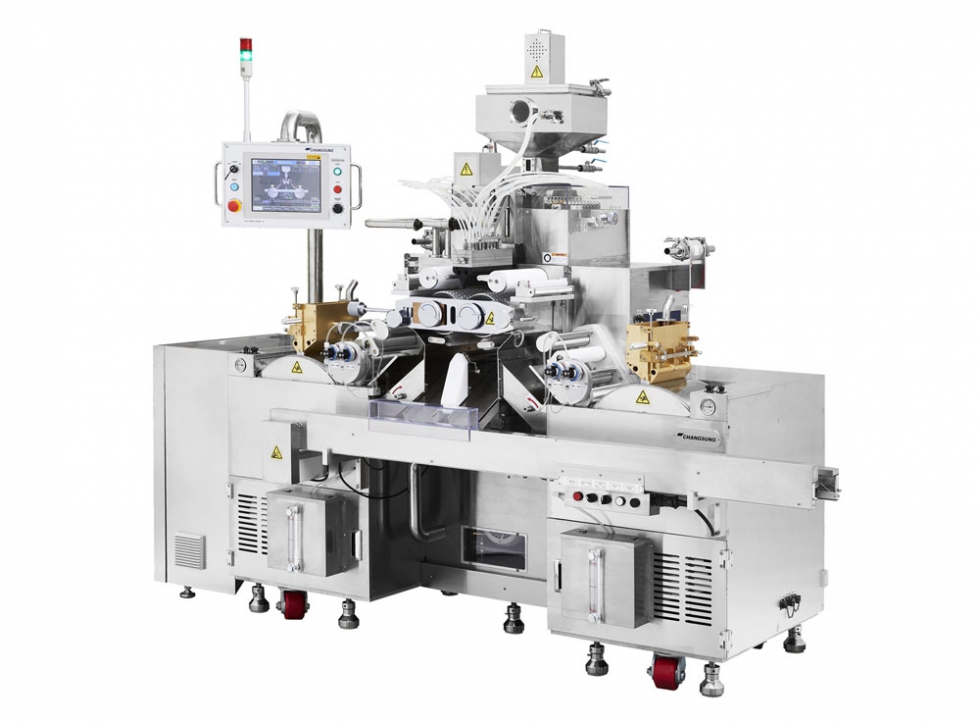

Softgel Machine

500R

STANDARD FEATURES

  • Pharmaceutical & Nutraceutical
  • Easy maintenance
  • Anodizing aluminum and stainless steel frame
  • Contact part with stainless steel 316 or 304
  • Complying with GMP for various safety standard
  • Digital die roll pressure indicator (Load- cell)
  • Metering Pump
  • Complying with TIR securely

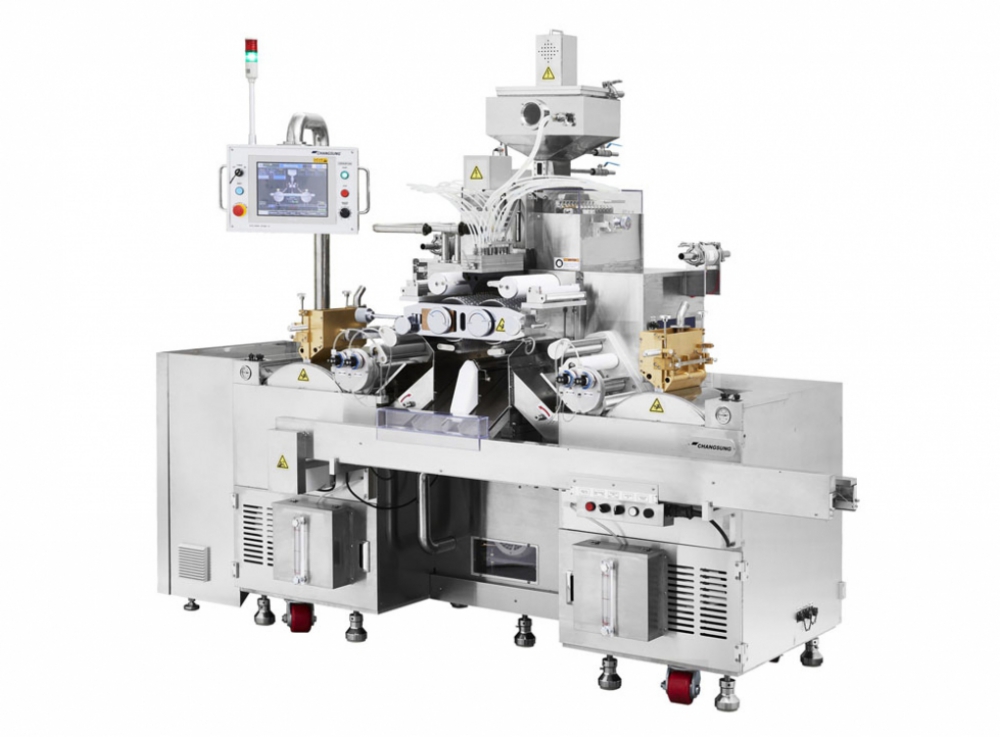

500R
500R

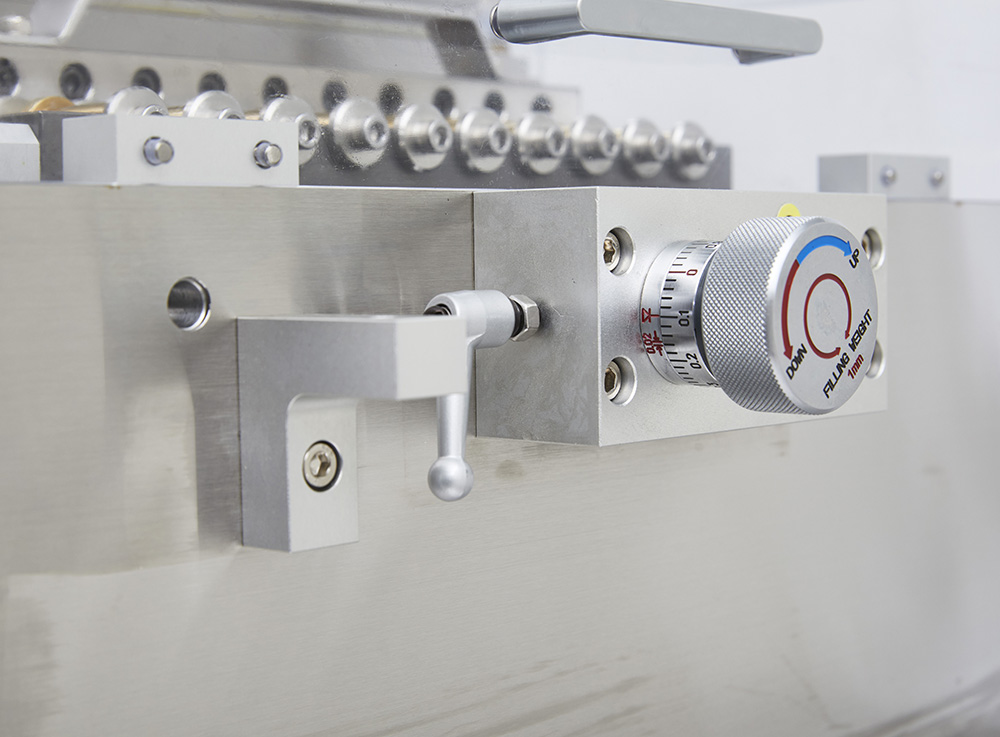

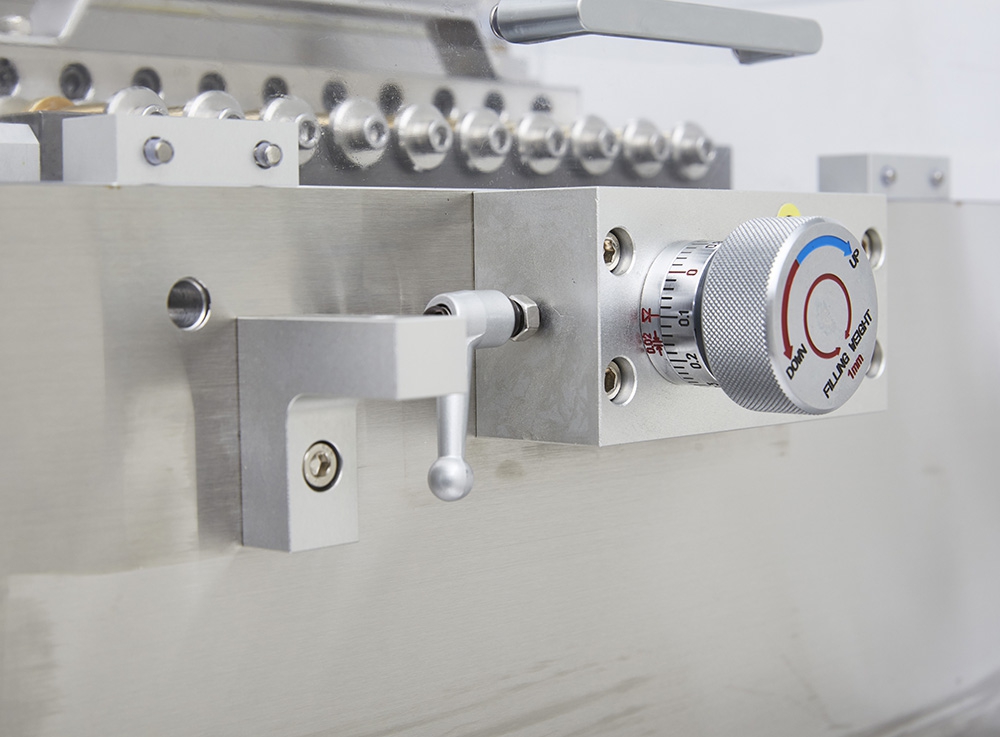

Medicine Filling Adjustable Knob
Medicine Filling Adjustable Knob
Oil Roller
Oil Roller

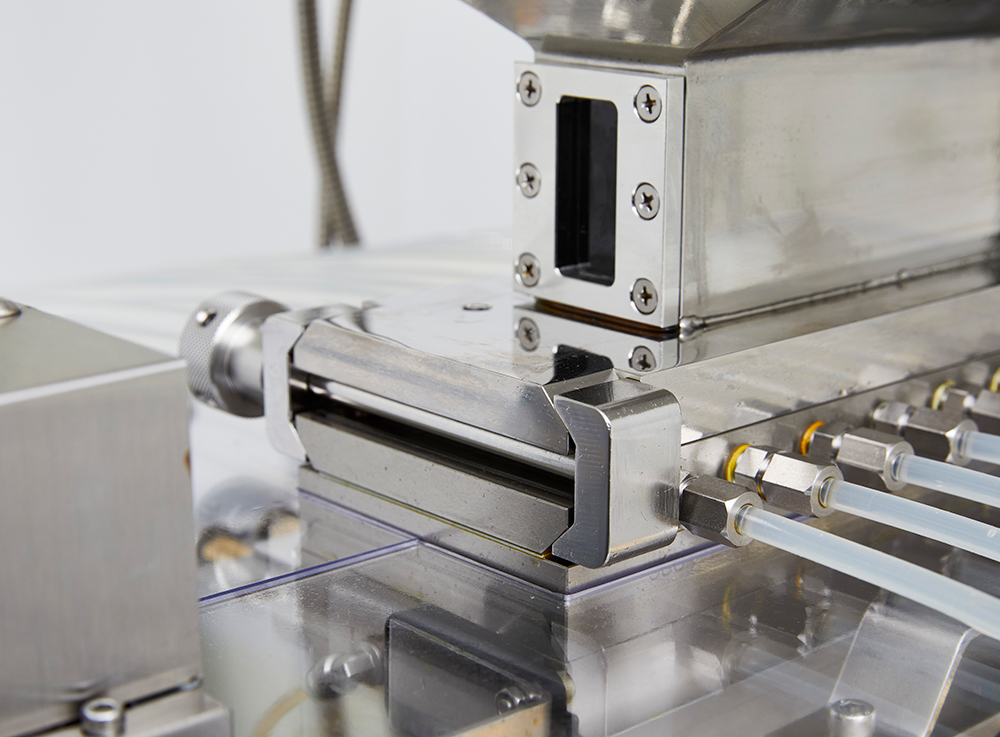

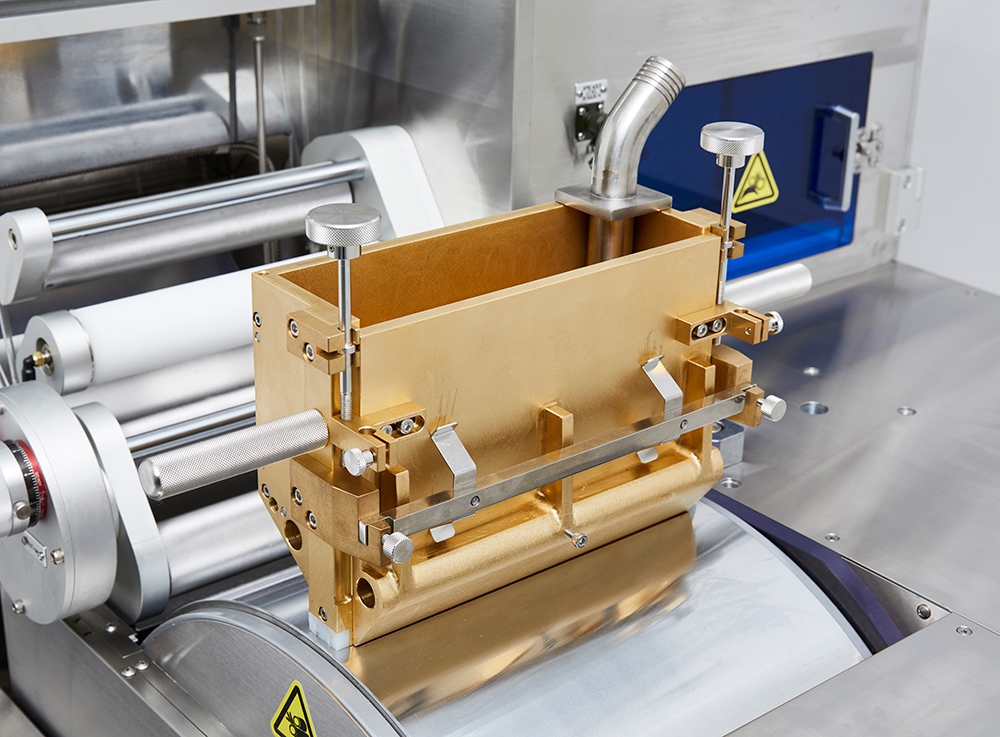

Spreader Box
Spreader Box

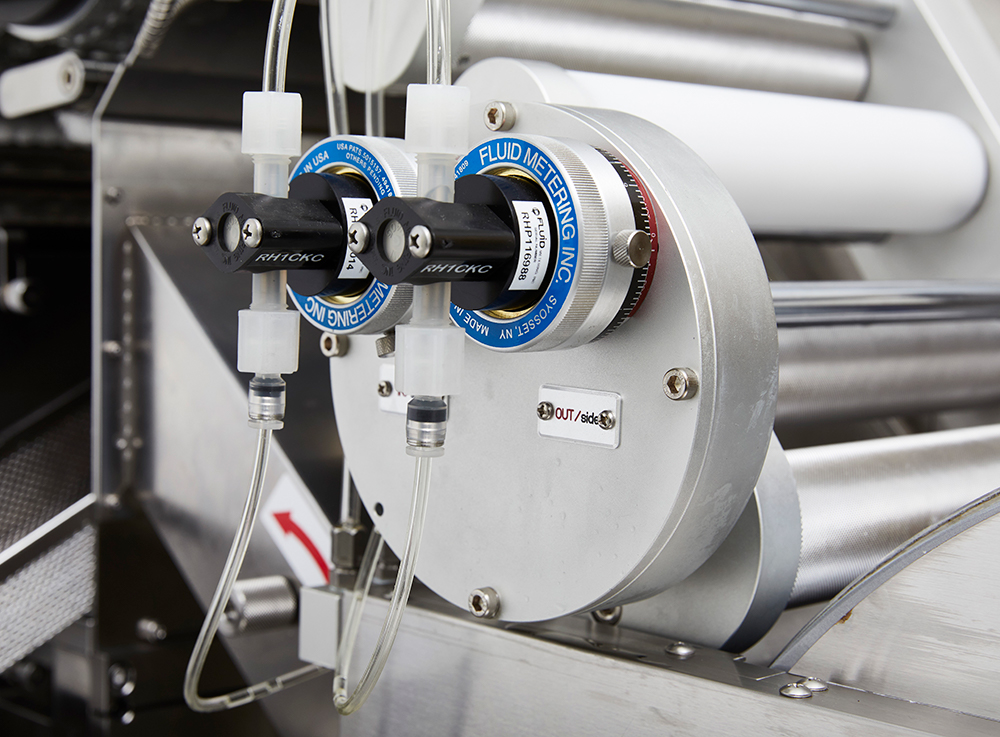

Medicine Filling Pump
Medicine Filling Pump

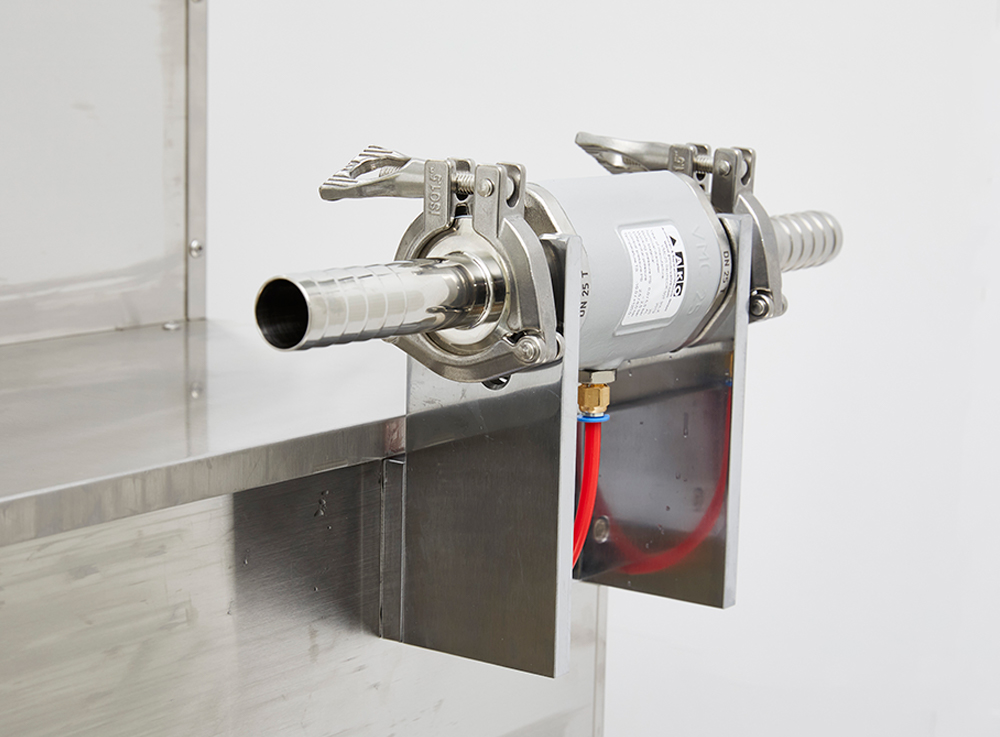

Pinch Valve
Pinch Valve

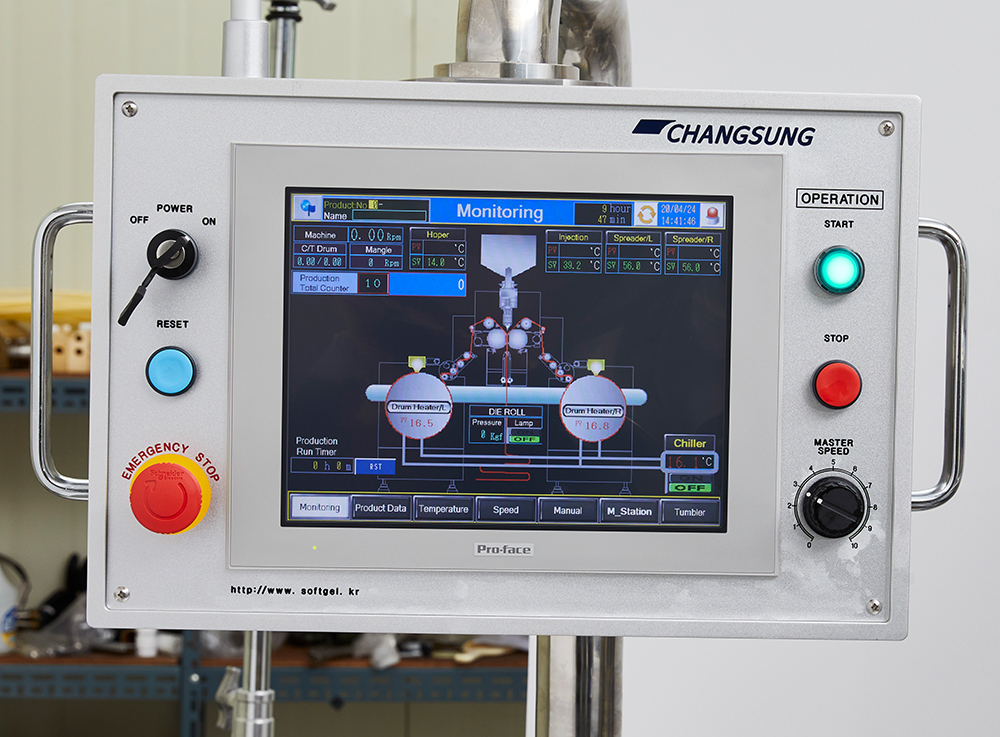

HMI
HMI

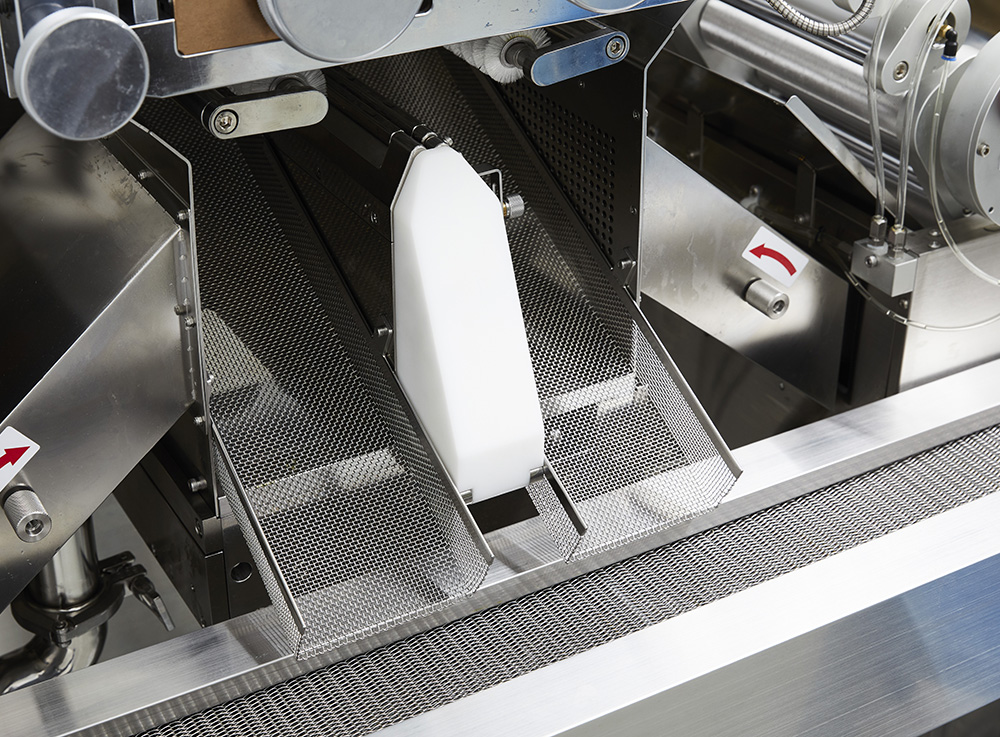

Conveyor
Conveyor
Previous Next Play Pause

TECHNICAL SPECIFICATIONS

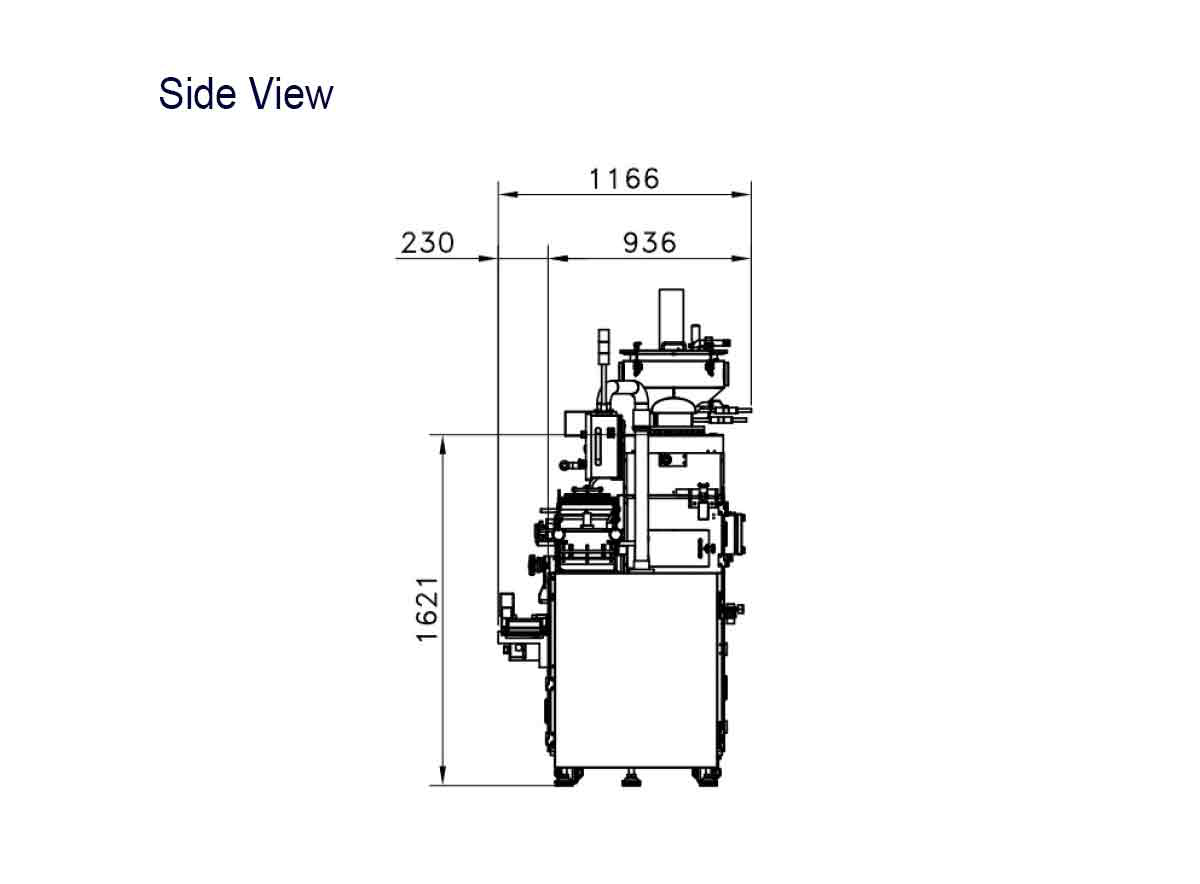

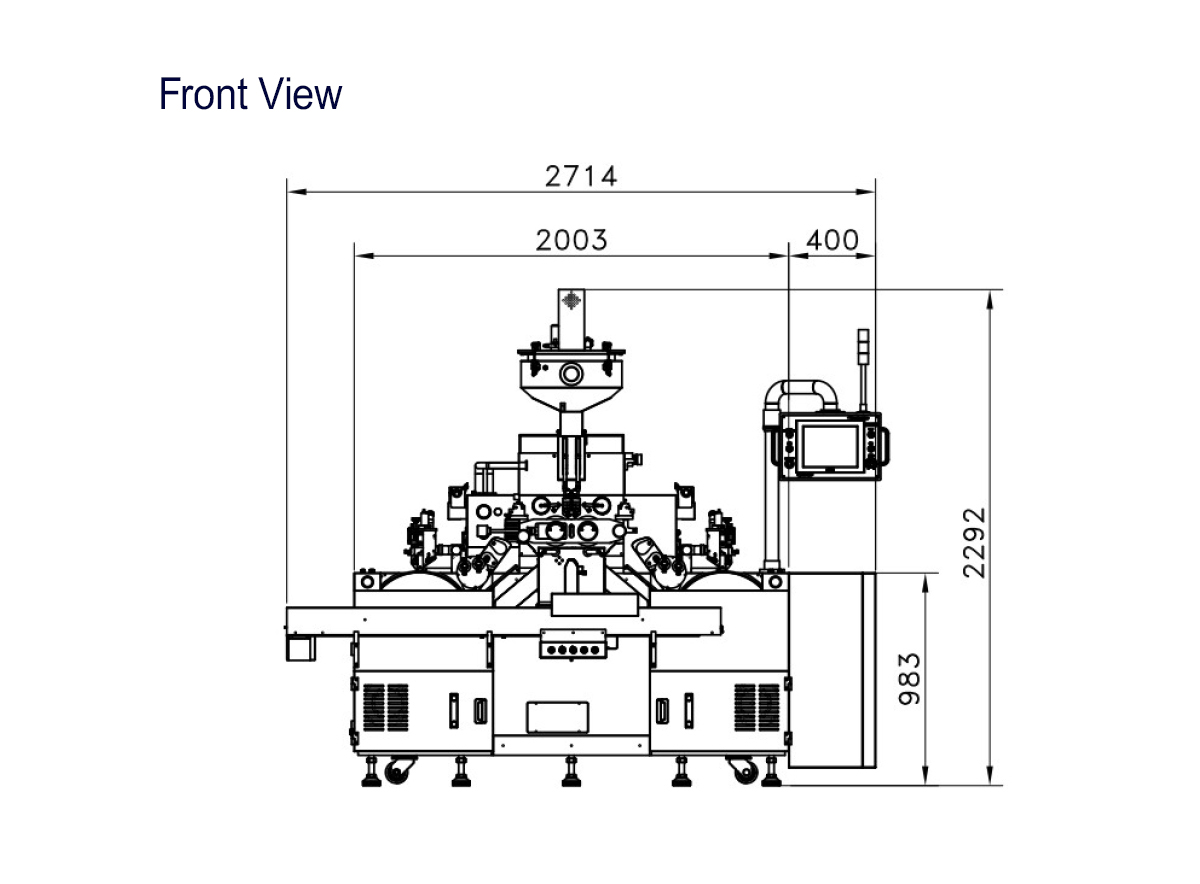

MACHINE LAYOUTS:



Technical Specifications 500R Technical Specifications
Dimension 2,714(L) x 1,166(W) x 2,292(H) mm
Weight 1,800 KG
Electric Power AC 220, 380, 440 V / 50,60 Hz / 3 Ph
Power Consumption 21 kW
Die Roll Speed 5 rpm
Compressed Air 5 kg f/cm²
Die Roll Size Ø150 x 250 mm
Productivity AVG. 64,600 caps/hr at 4.5 rpm (Ob#20)

CATALOG DOWNLOAD

  • 500R
    pdf | 589.87 KB | 619 hits
