Bottom Labeler

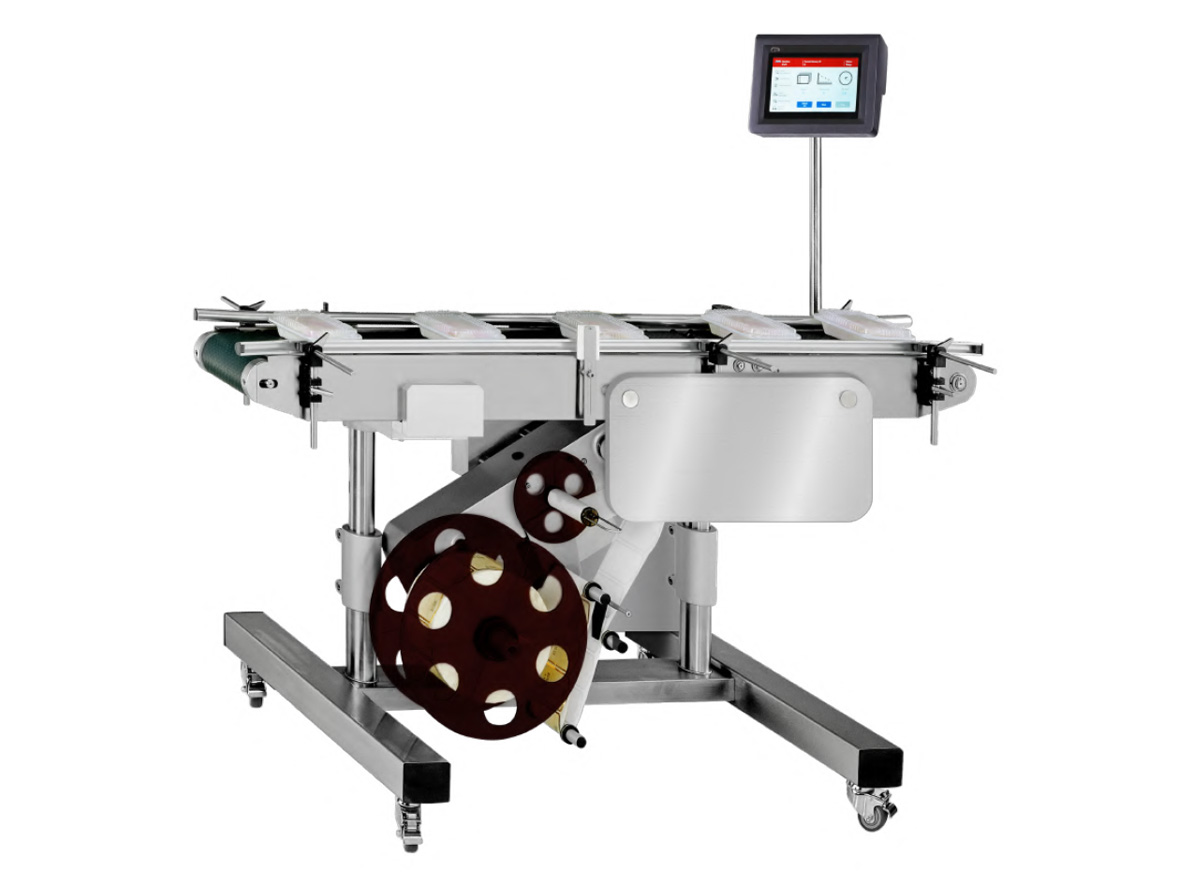

CVC 210

The CVC 210 Bottom Labeler is built to automatically apply pressure sensitive labels onto the bottom of flat and indented containers. The CVC 210 comes standard with a 6” wide belt conveyor and is ideal for contract packagers and manufacturers serving the nutraceutical, food, cosmetic, personal care, and consumer electronic markets.

All CVC labelers include our patented SelfSet™ software which utilizes a high frequency encoder for extremely easy setup and wrinkle free labeling at the touch of a button.

STANDARD FEATURES

  • SelfSet™ Auto Adjusting Control System/li>
  • Stainless Steel Frame on Lockable Casters
  • Stainless Steel Flatbed Conveyor, 6” Wide Endless Green Belt
  • Touchscreen HMI
  • Label Head with up to ± 1 mm (1/32”) Accuracy
  • Label Sensor for Paper or Opaque Labels
  • Capacity: up to 150 Pieces Per Minute (PPM) (subject to our factory trial confirmation)
CVC 210
CVC 210
Previous Next Play Pause

TECHNICAL SPECIFICATIONS

AVAILABLE OPTIONS:

  • Clear, Metallic or Color Label Sensor
  • End to End Transfer Plates
  • Infeed and Outfeed Conveyor Extensions (Factory installed only)
  • Separator Wheel for Controlled Spacing (Factory installed only)



MACHINE LAYOUTS:


The dimensions shown are for standard machine. The conveyor can be extended: the length may var y based on selected options. This machine can run independently or be integrated into an automated packaging line. All CVC equipment is covered by a one-year parts warranty. Full Warranty details are included in our equipment proposals or can be found on our website.

Technical Specifications CVC 210 Technical Specifications
Type U1
Productivity Up to 150 PPM (subject to trial confirmation) Dispense Speed: 24 M/min (78 ft/min)
Applicable Size Label Length: 15-250 mm (1/2” to 10")
Label Width: (dependent on label head type)
A:15-80 mm (1/2" to 3")
B:15-120 mm (1/2" to 4 3/4")
Product Length: 30-260 mm (1 1/4" to 10 1/4")
Product Width: 25-150 mm (1" to 6")
Product Height: 25-150 mm (1/2" to 6")
Power source 110/220 V, 50/60 Hz, 1 PH
Power Consumption 350 VA (110V: 3.2 A, 220V: 1.6 A)
Air Pressure 6 bar (87 psi)
Air Consumption 50 NL/min (1.8 CFM)
(for optional Lot/Date printer)
Consumption Machine Dimensions 1,440 x 895 x 1470 mm (4’-9” x 2’-11“ x 4’-10”)
Machine Weight 130kg (287 lbs)
Noise Level ≤ 75 dB
