Wrap-Around Labeler

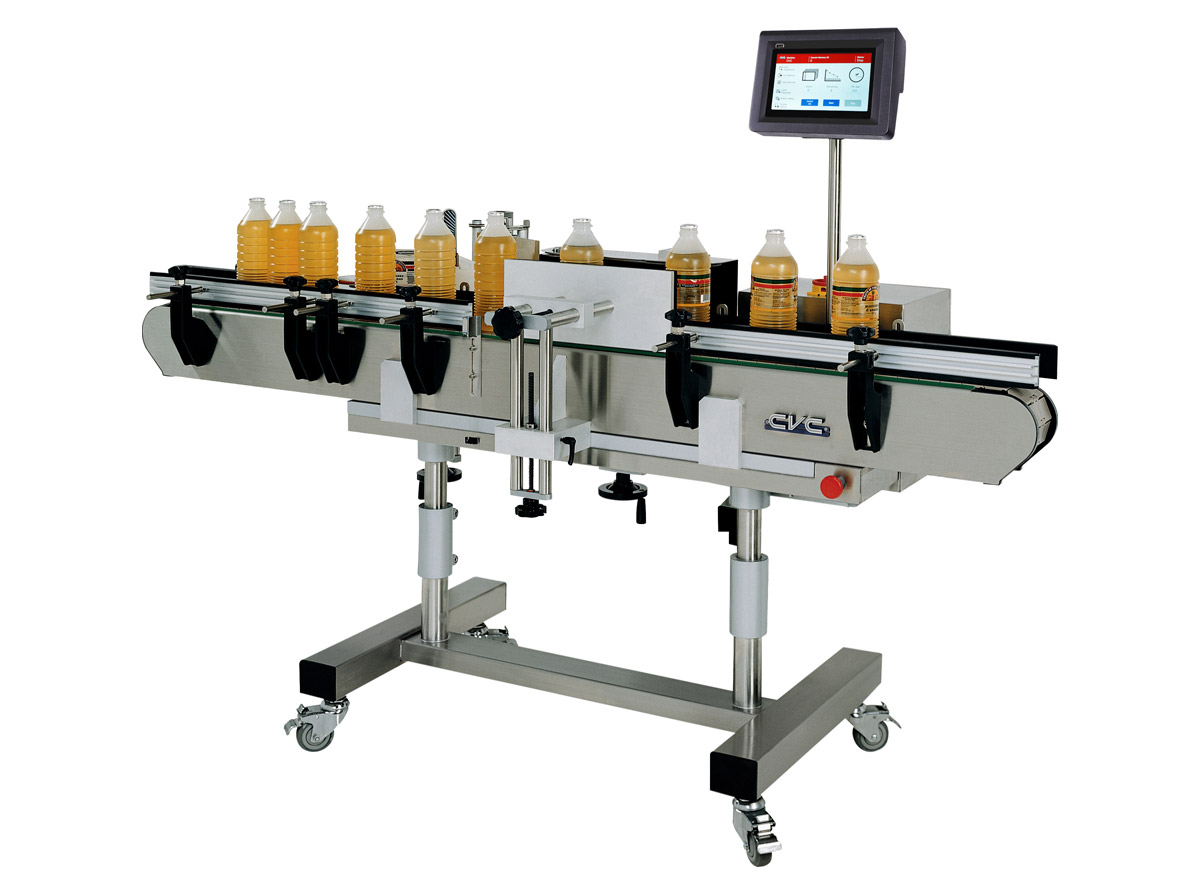

CVC 300

The CVC 300 Wrap Labeler is built to automatically apply pressure sensitive labels onto round containers. It is an ideal machine for contract packagers and manufacturers serving the nutraceutical, food, cosmetic, personal care, and household product markets.

All CVC labelers include our patented Self Set™ software which utilizes a high frequency encoder for extremely easy setup and wrinkle free labeling at the touch of a button.

STANDARD FEATURES

  • Self Set™ auto adjusting control system
  • Stainless steel frame on lockable casters
  • Stainless steel flat-bed conveyor with 4" wide table top chain (raised sanitary bed) Upgradeable to 6" wide
  • Touchscreen HMI
  • Label head with up to ± 1/32” accuracy
    (* bottles / containers dependent)
  • Label sensor for paper or opaque labels
  • Product sensor with opaque and clear bottle mode
  • Variable speed separator wheel
CVC 300
CVC 300

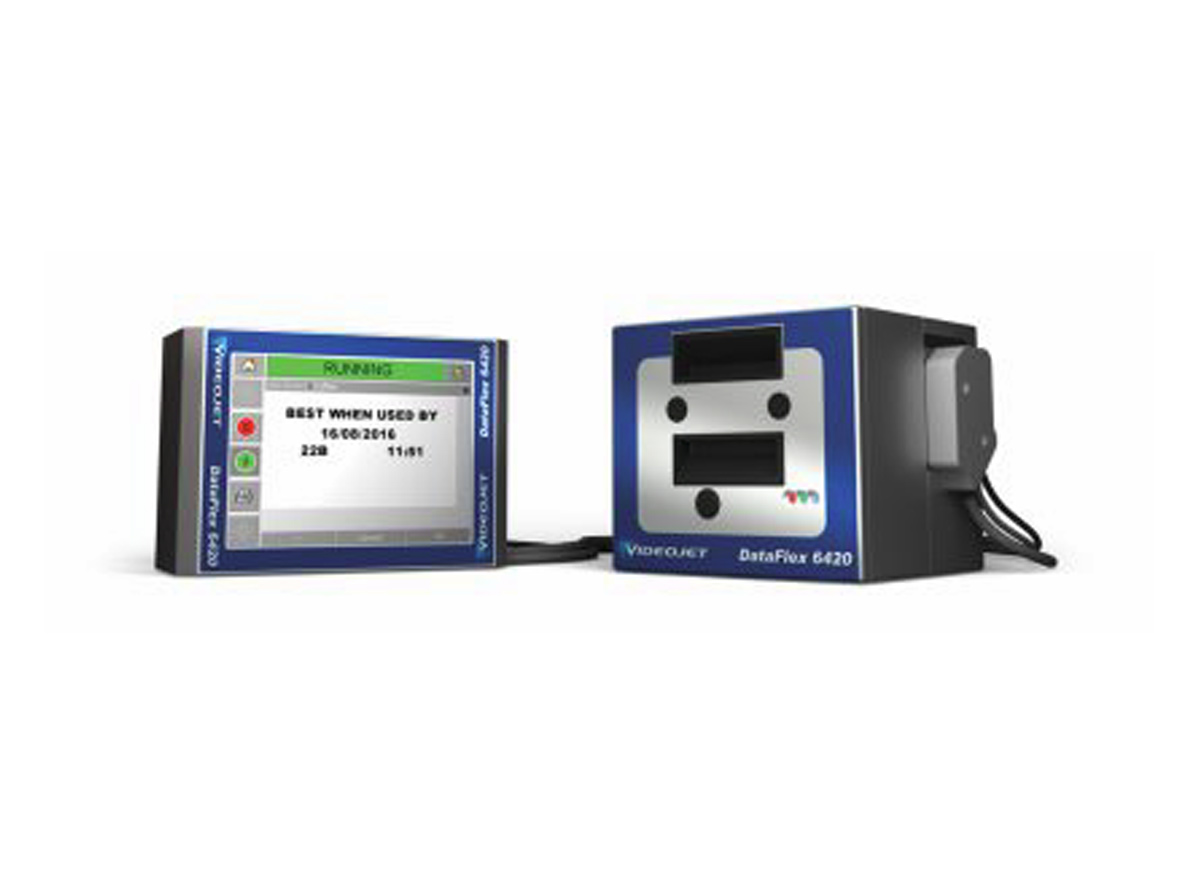

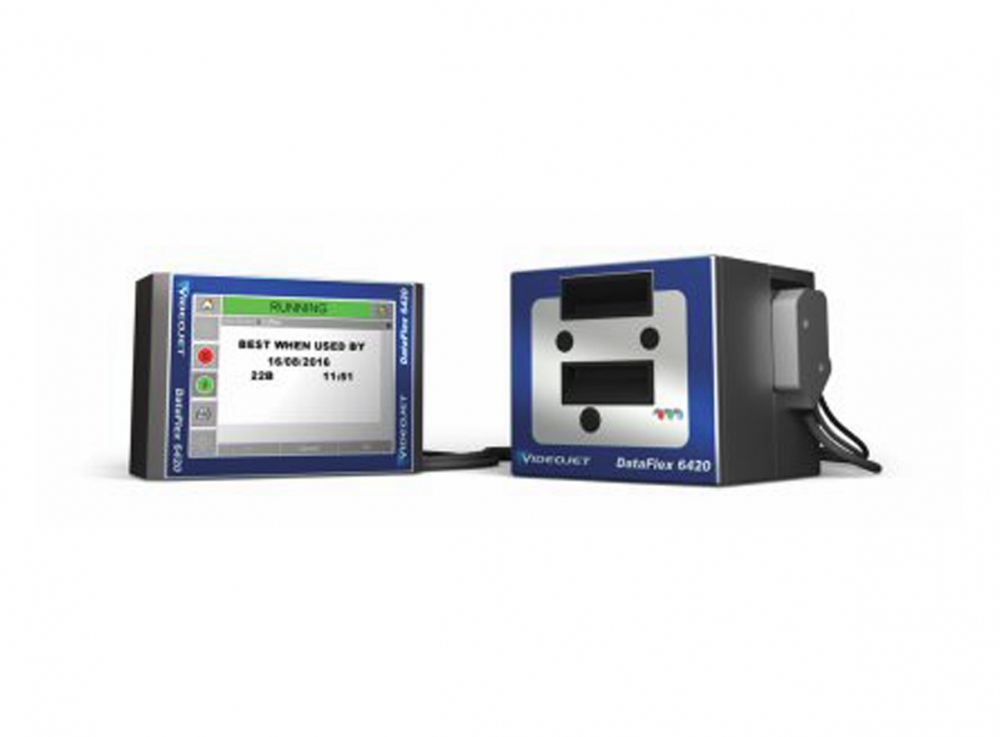

THERMAL TRANSFER PRINTER
THERMAL TRANSFER PRINTER

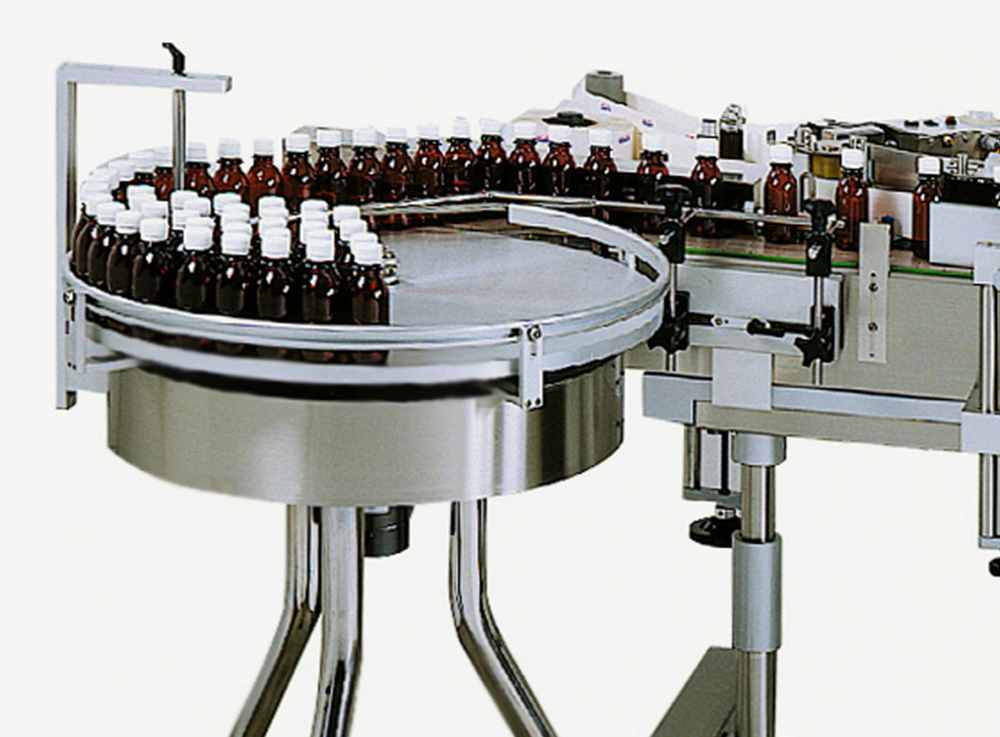

turntable
turntable

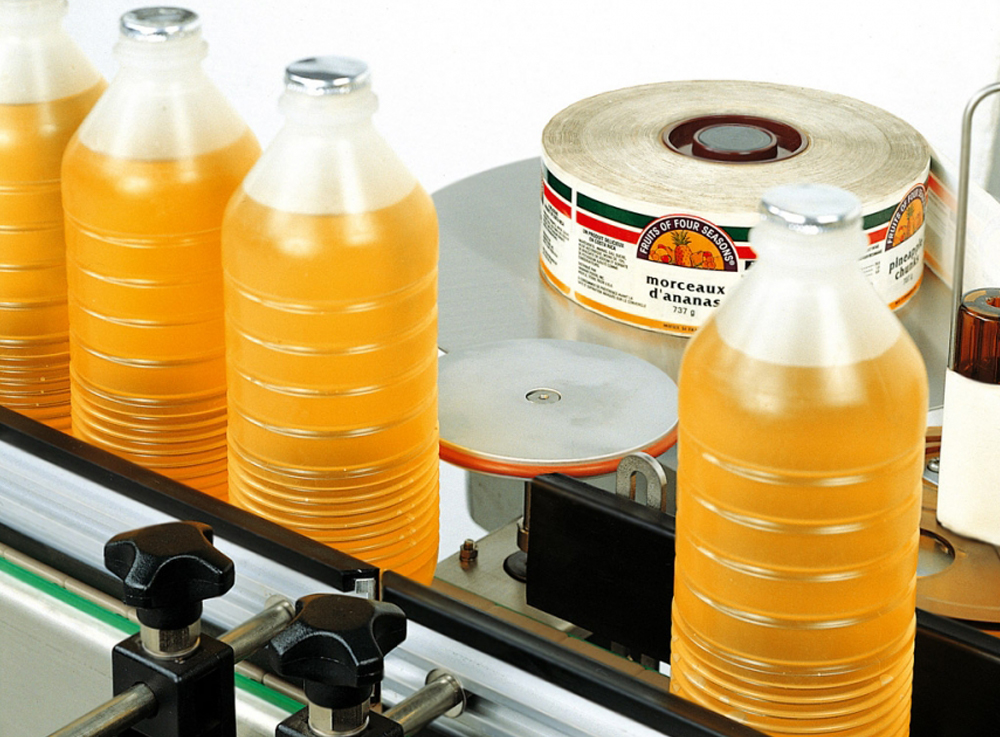

standard product separator wheel
standard product separator wheel
Previous Next Play Pause
CVC 300 THERMAL TRANSFER PRINTER turntable standard product separator wheel

TECHNICAL SPECIFICATIONS

AVAILABLE OPTIONS:

  • Hot Stamp (Lot/Date Coding) or Integrated Thermal Encoder
  • Adjustable tilt for tapered bottles
  • Clear label sensor, custom wrap belts, feed screw assembly
  • Infeed and outfeed conveyor extensions
  • Missing Hot Stamp Imprint Check System
  • Ribbon Check Sensor

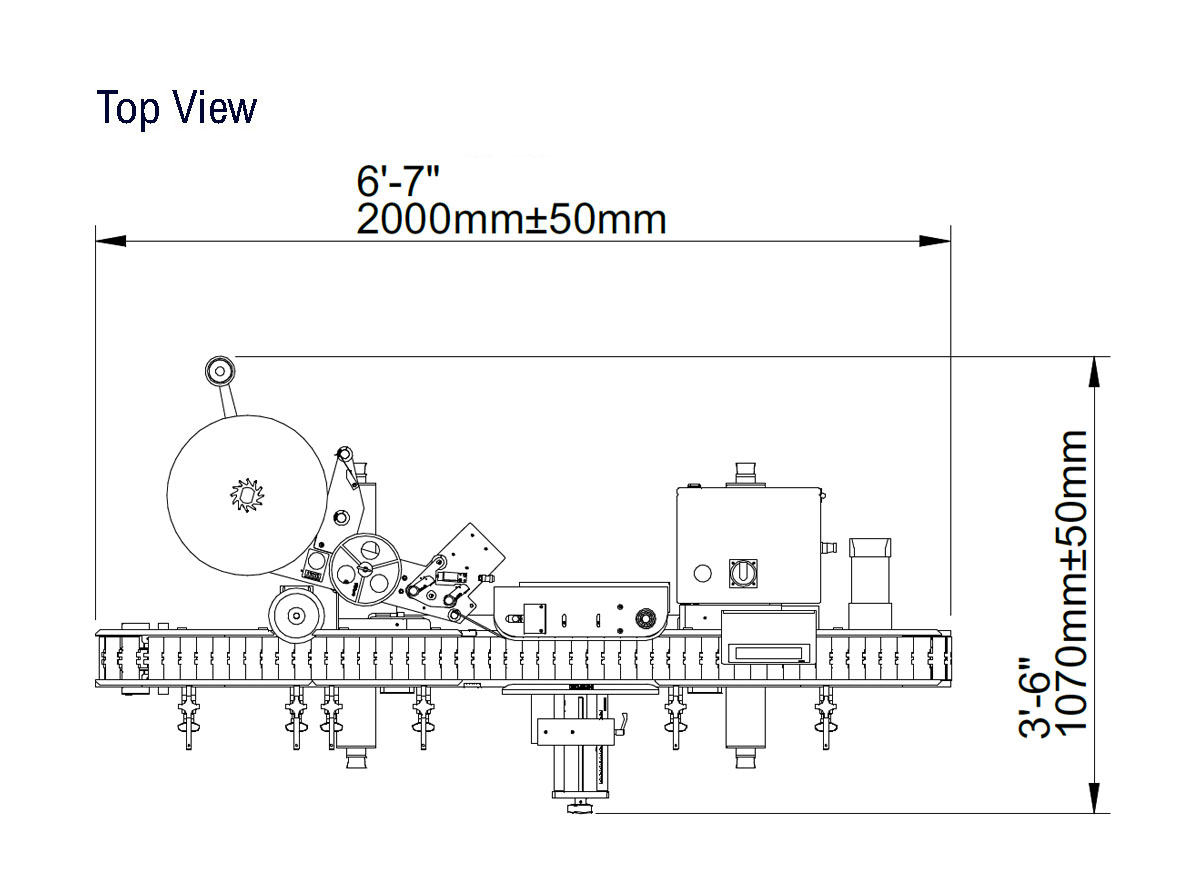

MACHINE LAYOUTS:

The dimensions shown are for standard machine. The conveyor can be extended: the length may var y based on selected options. This machine can run independently or be integrated into an automated packaging line. All CVC equipment is covered by a one-year parts warranty. Full Warranty details are included in our equipment proposals or can be found on our website.

All CVC labelers include our patented Self Set™ software which utilizes a high frequency encoder for extremely easy setup and wrinkle free labeling at the touch of a button.

Speed Rates in Excess of 100 BPM (Format Dependent)
Power 110V, 50/60 Hz, Single Phase, 3.2 Amp (208V optional)
Air Pressure Minimum 87 psi
Air Consumption 50 NLit/m (for optional reject and Lot/Date printer)
Label Width / Height 5/8" to 8-5/8" (15mm - 220mm) dependent on label head type
Label Length 5/8" to 10" (15mm - 254mm)
Label Roll Max 13-3/4" (350mm) outside diameter with 3" (76mm) core
Bottle Height 2" to 12-5/8" (50mm - 320mm)
Bottle Diameter 1" to 4" (25mm - 102mm) dependent on conveyor width
Conveyor Width Standard 4" (also available in 6")
Conveyor Length Standard 79" (also available in 94" sanitary)
Conveyor Bed Height Standard 36" (+/- 2")
Machine Weight 174 kg (383 LBS)
