Front and Back Labeler

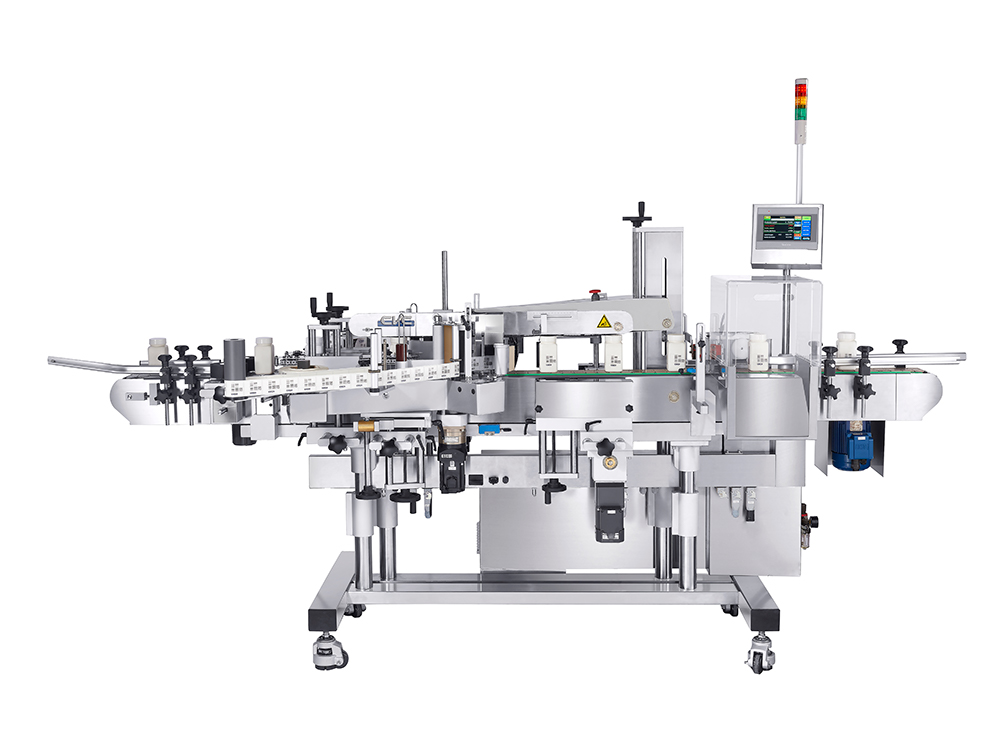

CVC 400.U2

The CVC 400.U2 Front & Back Labeler is built to automatically apply pressure sensitive labels onto the front and back of flat sided, oval, and some round containers. The 400.U2 can be ordered with one or two labeling heads and has an optional assembly for applying a label to 3, 4, panels of a square or rectangular container.

The 400.U2 is an ideal machine for contract packagers and manufacturers serving the food, nutraceutical, pharmaceutical, gas, oil, and personal care markets.

STANDARD FEATURES

  • SelfSet™ Auto Adjusting Control System
  • Stepper Motor (or Servo Motor) Driven Head Labeling
  • Touch Screen HMI
  • Label Head with up to ± 1 mm ( 1/32”) Accuracy (*Bottle/ Containers Dependent)
  • Label Sensor for Paper or Opaque Labels
  • Product Sensor with Opaque and Clear Bottle Mode
  • Separator Wheel for Controlled Spacing
  • Stainless Steel Frame on Lockable Casters
CVC 400.U2
CVC 400.U2

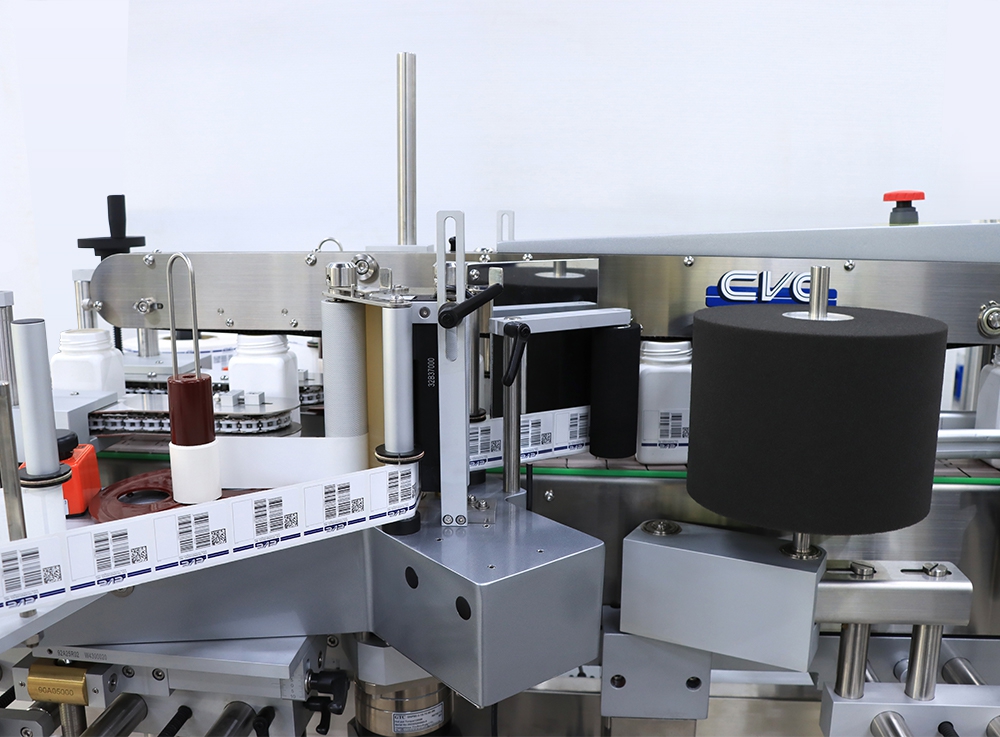

Adjustable Tilt for Tapered Bottles
Adjustable Tilt for Tapered Bottles
Previous Next Play Pause
CVC 400.U2 Adjustable Tilt for Tapered Bottles

TECHNICAL SPECIFICATIONS

AVAILABLE OPTIONS:

  • Infeed Rotary Table / Rotary Accumulation Table
  • C60 Hot Stamp (Lot/Date Coding)
  • Clear Label Sensor
  • Integrated Bar Code Reader
  • 3/4 Panel Labeling Stations
  • Missing Label on Bottle Check
  • Bottle Sorting and Verification
  • 3-Color Tower Stack Light

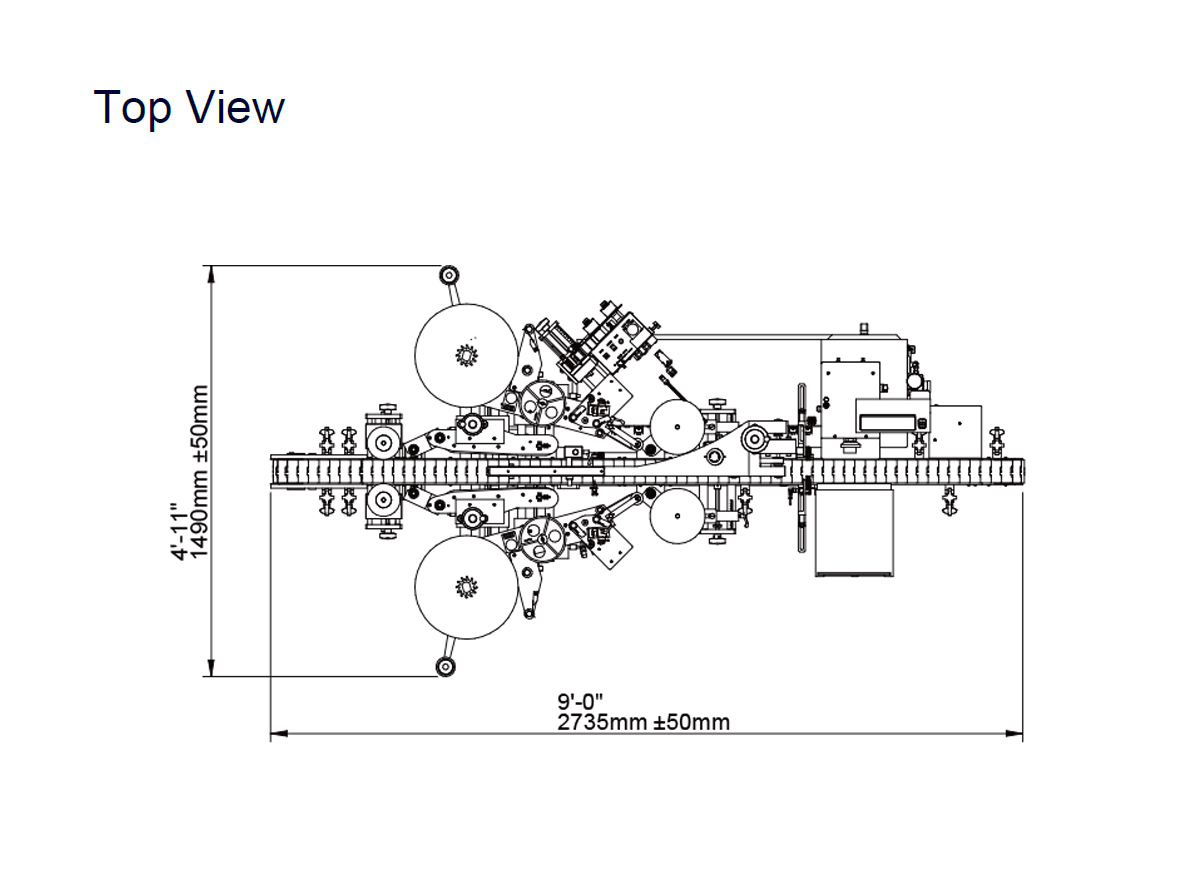

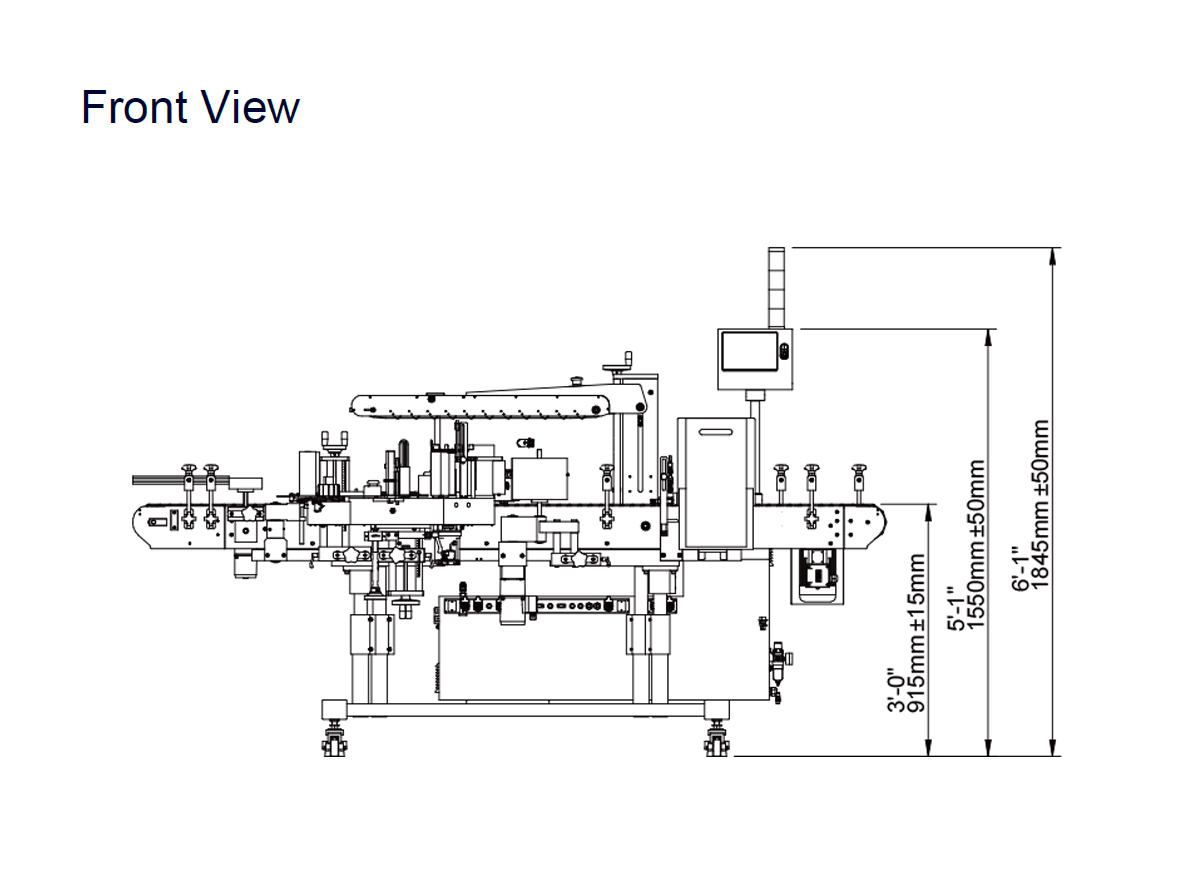

MACHINE LAYOUTS:

The dimensions shown are for standard machine. The conveyor can be extended: the length may vary based on selected options. This machine can run independently or be integrated into an automated packaging line. All CVC equipment is covered by a one-year parts warranty. Full Warranty details are included in our equipment proposals or can be found on our website.

All CVC labelers include Self Set™ software which utilizes a high frequency encoder for extremely easy setup and wrinkle free labeling at the touch of a button.

Note: The actual rates may vary significantly depending on the following: products, product characteristics, required fill counts, quantity or volume, and bottle dimensions.

Technical Specifications CVC 400 Technical Specifications
Type U2
Productivity Up to 90 BPM (base on L.60 x W.59 x H.120 mm square bottle, label
L.50 x W.40 mm)
(subject to trial confirmation)
Applicable Size Label:
Length: 15-254mm (1/2" to 10”)
Width: (dependent on label head type)
A: 15-80 mm (1/2" to 3")
B: 15-120 mm (1/2" to 4 3/4")
C: 15-150 mm (1/2"” to 6")
D: 15-180 mm (1/2"” to 7")
E: 15-220 mm (1/2"” to 8 3/4")
F: 15-265 mm (1/2"” to 11 1/2")

Flat/ Square Bottle:
Length: Flat Bottle: 30-110 mm (1 1/4” to 4 1/4”)

Square Bottle: 30-200 mm (1 1/4” to 8”)
Width: 30-110 mm (1 1/4” to 4 1/4”)
Height: 75- 320 mm (3” to 12 1/2”)
Power source 110/220 V, 50/60 HZ, 1 PH
Power Consumption 1,078 VA (110V: 9.8 A, 220V: 4.9 A)
Air Pressure 6 bar (87 psi)
Air Consumption 50 NL/min (1.8 CFM) (for optional Lot/Date printer)
Machine Dimensions ( L x W x H ) 2,735 x 1,430 x 1,870 mm
Machine Weight 305 kg
Noise Level ≤ 75 dB
