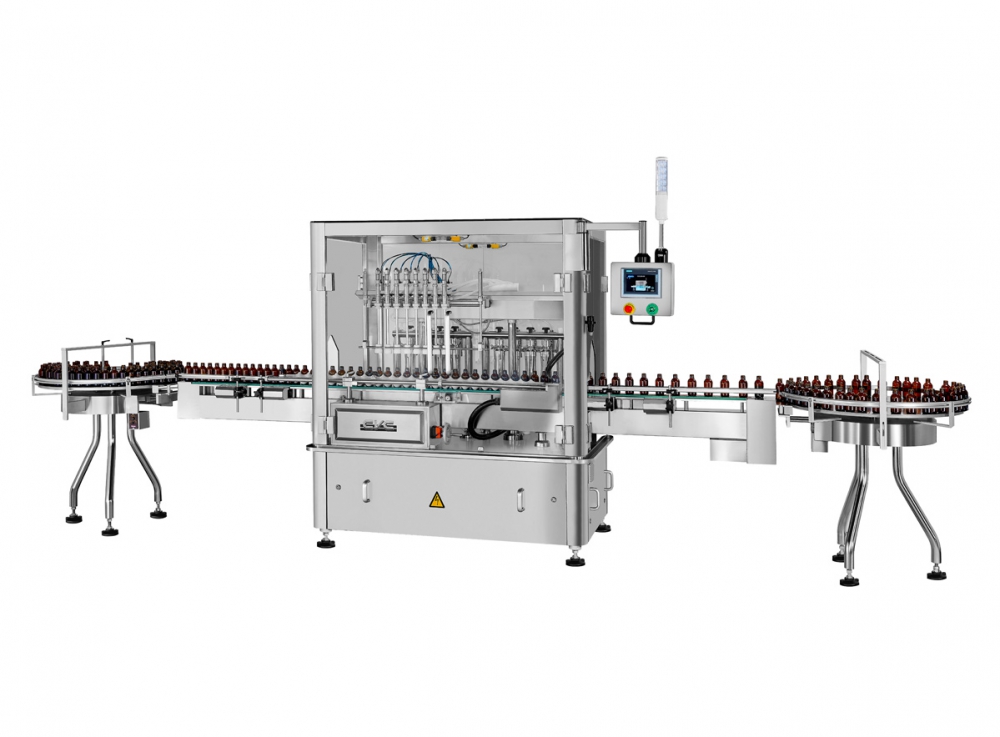

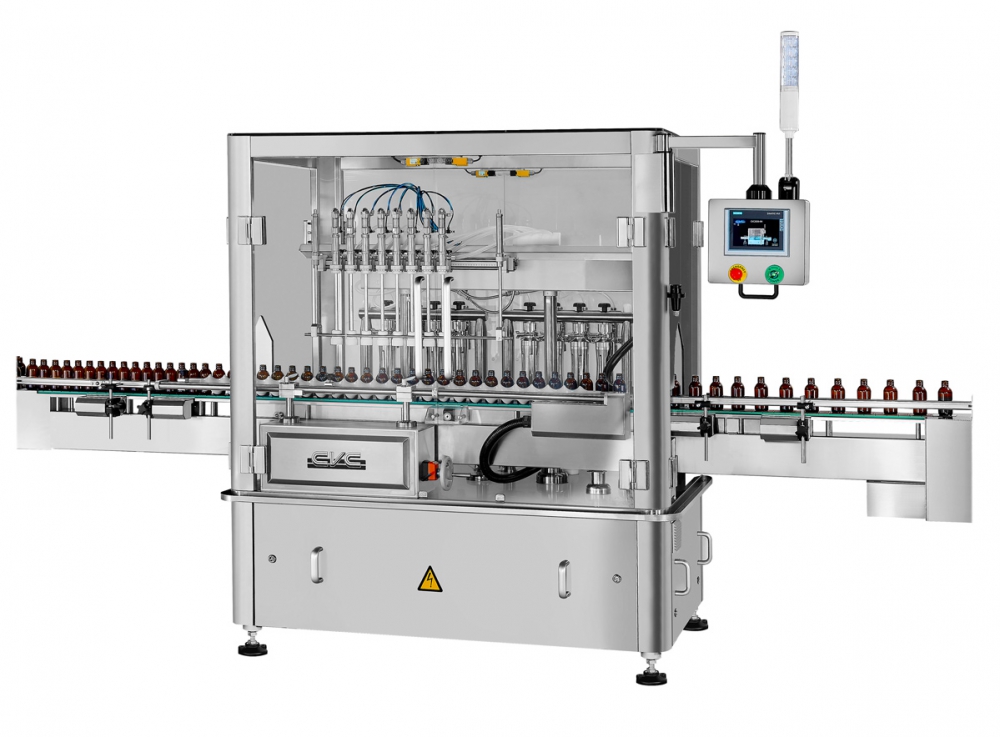

CVC 3036-8H with in-line configuration are really versatile fillers that easily - and inexpensively - accommodates to different bottle sizes.

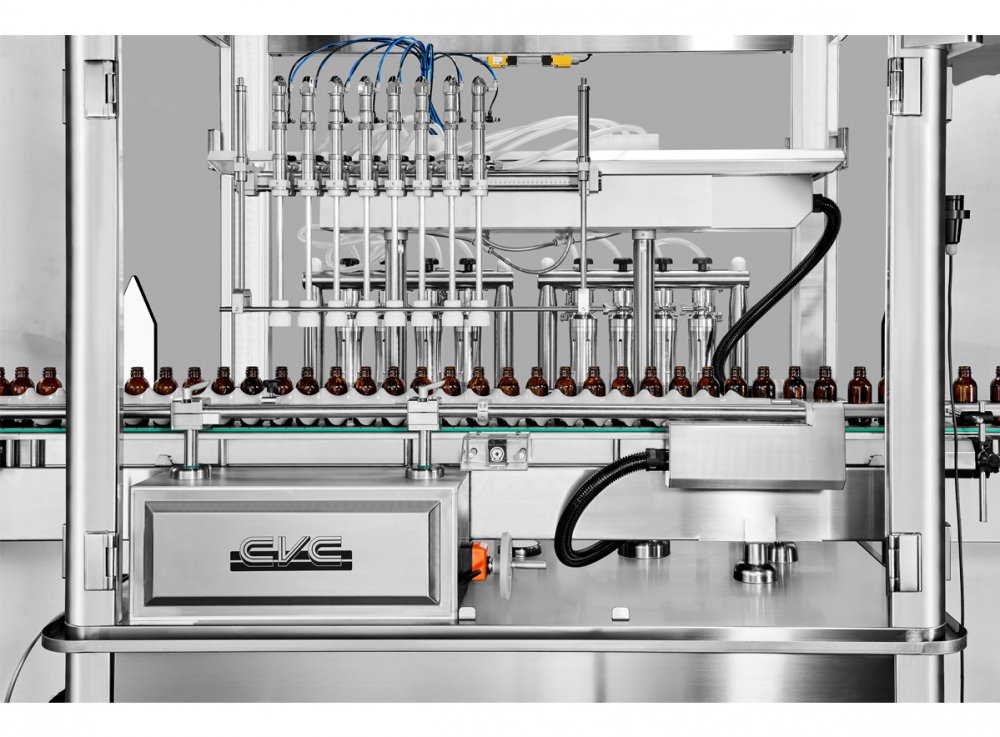

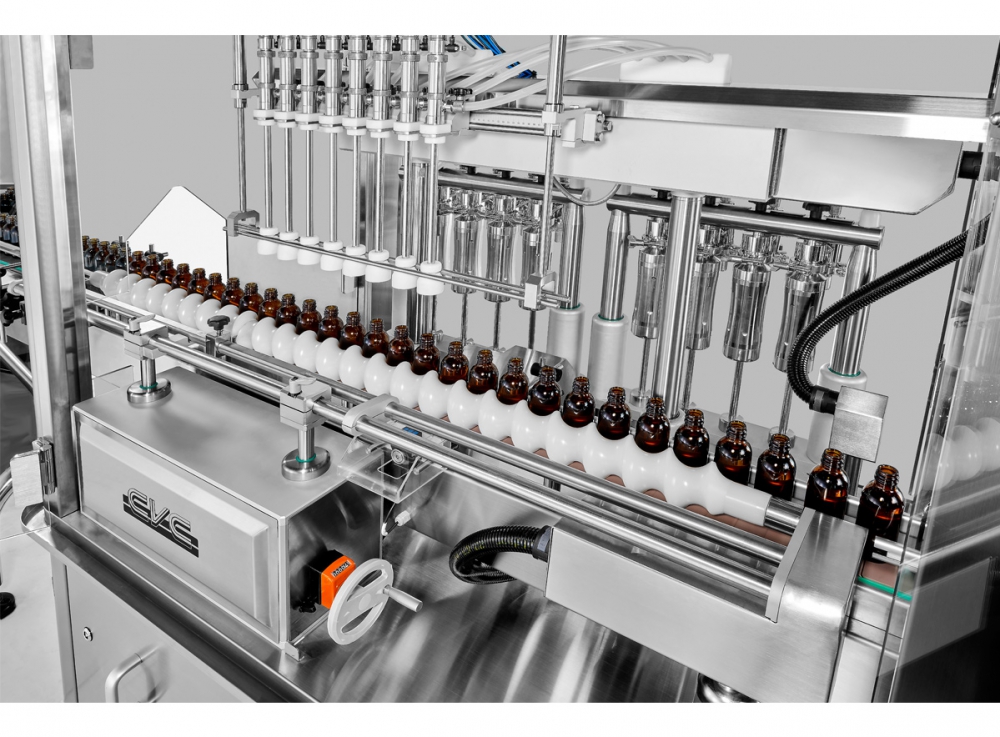

Diving type filling mechanism: filling nozzles dip into bottles and move up while liquid is being filled. It features less foaming during filling.
8 filling stations.
Servo driven on both volumetric pistons and nozzles.
Flexible adjustments can meet different product characteristics and bottle shapes.
Various speed settings of liquid filling.
Capability of recipe storage.
Simple and quick tech mode setup.
Track full / track empty sensors.
Bottle mouth holder design for special applications (require to conduct our factory test).
PLC control with user-friendly operation.

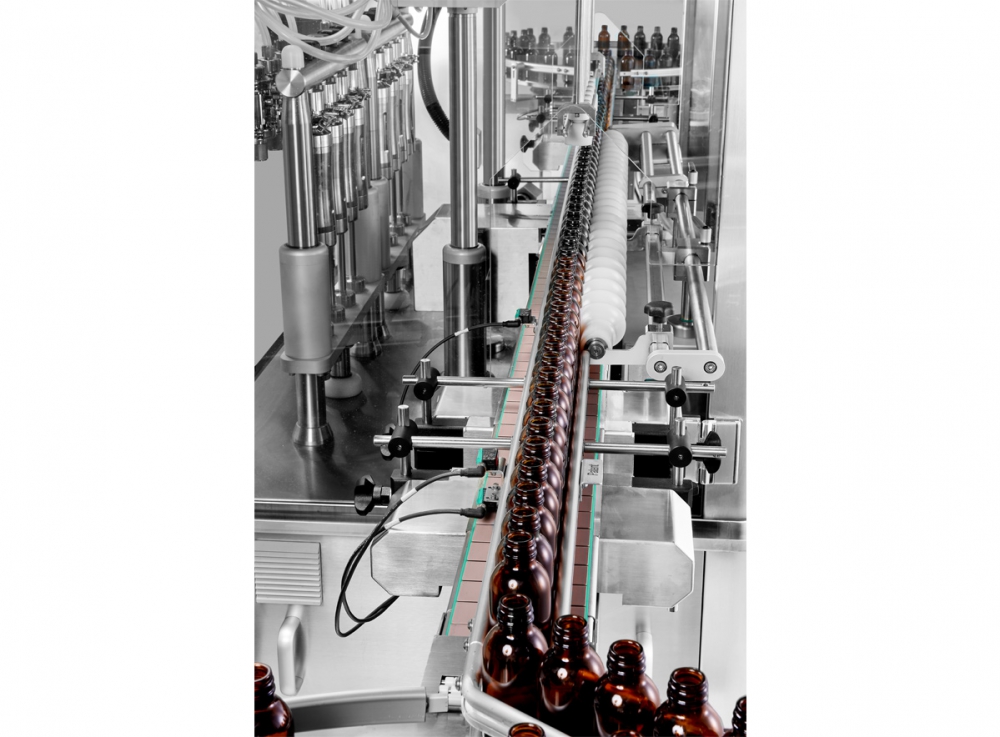

Motorized single lane sanitary conveyor. customized conveyor lengths are available upon request.
Type 304 stainless steel bin, frame, enclosure panels.
Type 316L stainless steel contact parts.
ISO 9001 : 2015 certified.
Include various sizes of volumetric pistons with fill volume capacity range from 20 ml up to 500 ml
1-on-8 manifold pipe
Liquid buffer/storage tanks
21 CFR PART 11 compliance
OPC UA for data collection
Bottle neck holders
Bottle feed screw
Bottle feed screw for handling irregular shaped containers
The dimensions shown are for standard machine. The conveyor can be extended: the length may var y based on selected options. This machine can run independently or be integrated into an automated packaging line. All CVC equipment is covered by a one-year parts warranty. Full Warranty details are included in our equipment proposals or can be found on our website.
CVC 3036-8H Technical Specifications
Up to 96 Bottles per Minute(BPM)
Plastic bottles, Glass bottles
Bottle Dia.: 1 ⅛" to 2 ⅝" (30 to 68 mm)
Bottle Height: 2 ½" to 6 ½" (65 to 165 mm)
Mouth Opening (I/D):⅜" to ⅝" (10 to 15 mm), suitable for ¼"(6.5 mm) nozzle,over ⅝"(15 mm) need to match ½"(13 mm) nozzle.
380 V/ 50(60) HZ/ 3 PH
6 bar (87 psi)
50 NLit/m (1.8 CFM)
Consumption Machine Dimensions
11'-10" x 3'-5" x 5'-7" (3600mm x 1050mm x 1700mm) (L x W x H)
Filling Range & Accuracy
20 ml ~ 500 ml ± 1% (Need to adapt different volumetric
piston pumps and proper nozzles)
