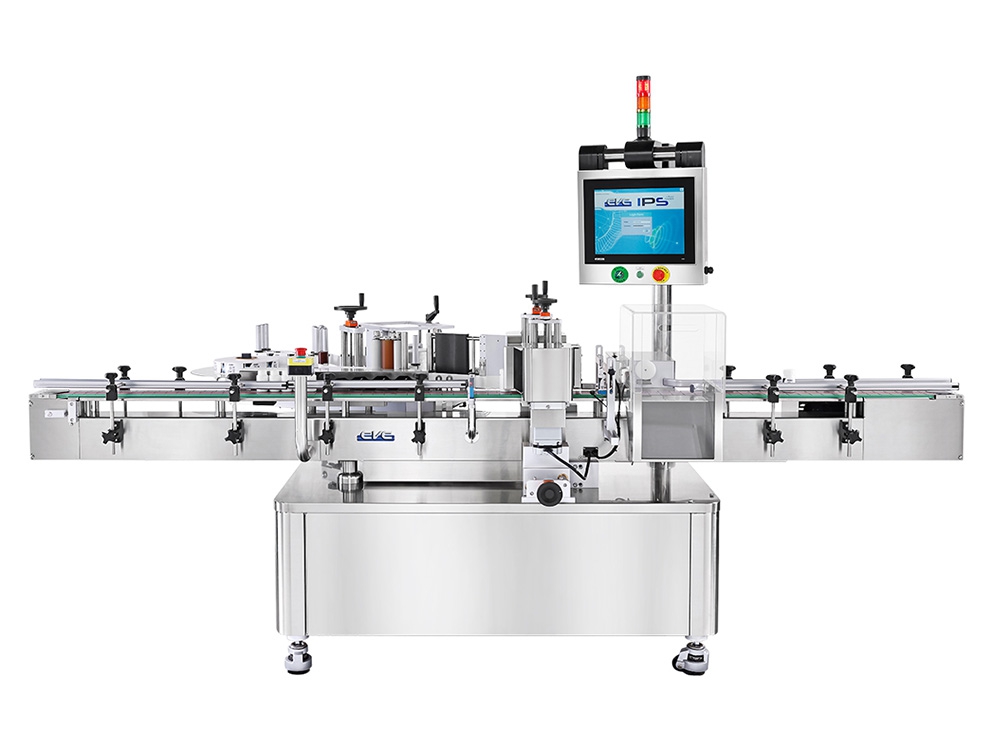

The new CVC 302 with IPC system is an integrated solution that combines CCD inspection and printing within a single, streamlined interface—eliminating the need for multiple screens.
Its built-in database enables efficient production data storage, quick search, and report generation.
It also supports multi-user login with role-based access control, fully compliant with 21 CFR Part 11 for electronic records and user management.
STANDARD FEATURES
- Intuitive Touchscreen UI: Simplifies operation and reduces training time.
- Real-Time Alerts & Visual Guidance: Enhances safety and provides immediate troubleshooting cues.
- Quick Manual Access: Instantly view operating guides within the system interface.
- 15” Touchscreen: Larger display for clearer visuals and improved interaction.

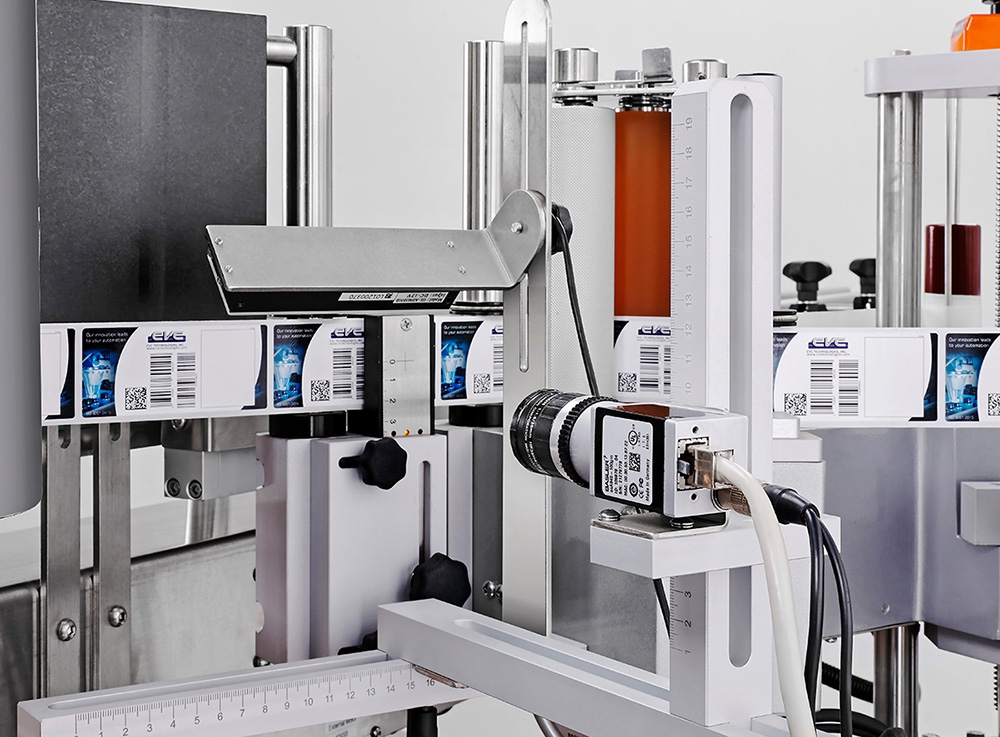

- All-in-One Smart Integration: Built-in CCD inspection and thermal printing in a unified interface.
- i-Print System (iPS) is available to be installed in theCVC302 IPC system to print and store reports for CVC packaging line machines.
- Integrated Reporting
-Report integration(Production/Alarm/Audit)
-Report query by batch (Production/Alarm/Audit)
-Independent query (Alarm/Audit)...
TECHNICAL SPECIFICATIONS
AVAILABLE OPTIONS:
- Clear Label Sensor
- Bar Code Verification
- Missing Imprint Check system
- Missing Label on Bottle Check
- Bottle Sorting and Verification
- 3-Color Tower Stack Light
- Bottle Feed Screw
- Infeed Rotary Table / Rotary Accumulation Table
- Infeed and outfeed Conveyor Extensions
- IPC (21CFR)

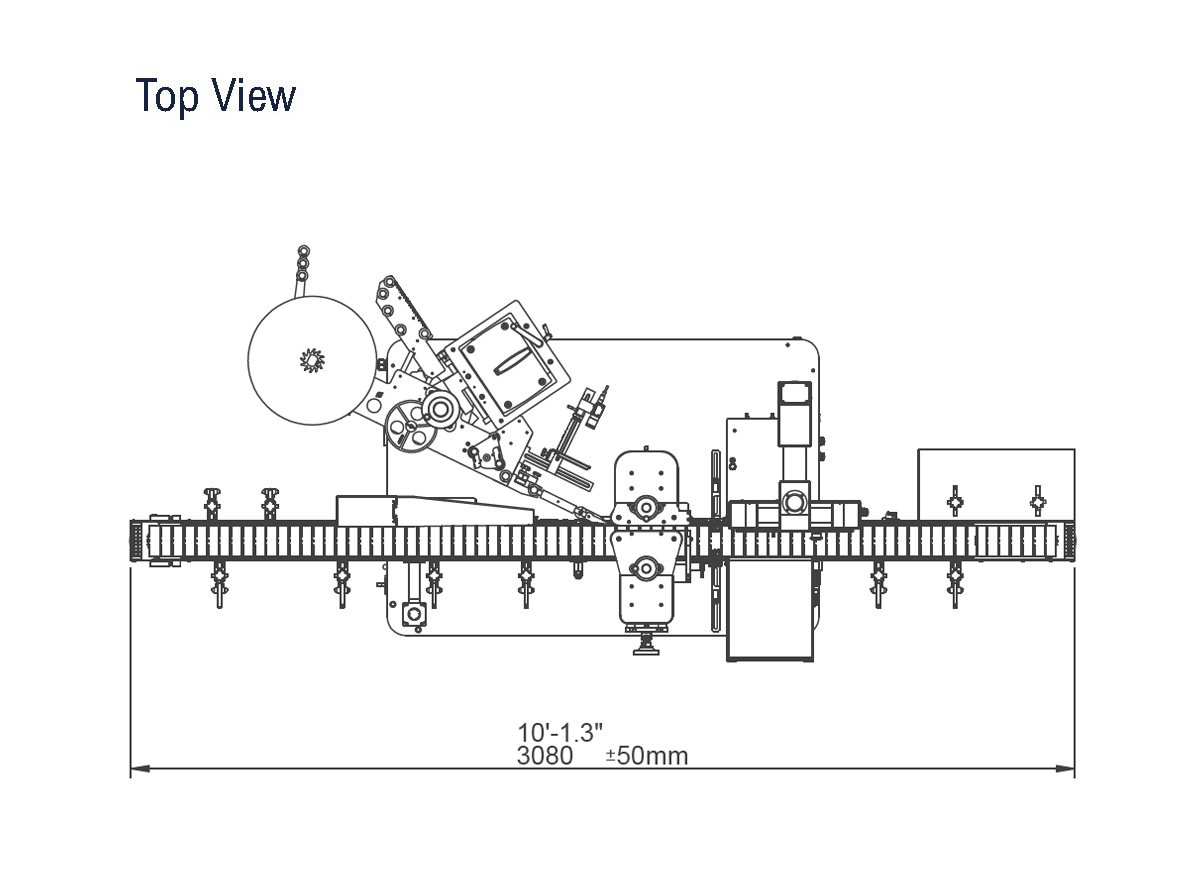

MACHINE LAYOUTS:
The dimensions shown are for standard machine. The conveyor can be extended: the length may vary based on selected options. This machine can run independently or be integrated into an automated packaging line. All CVC equipment is covered by a one-year parts warranty. Full Warranty details are included in our equipment proposals or can be found on our website.
All CVC labelers include our patented Self Set™ software which utilizes a high frequency encoder for extremely easy setup and wrinkle free labeling at the touch of a button.
