Front and Back Labeler with Wrap Station

CVC 432

CVC Front and Back Labeler with Wrap Station CVC 432 is a dual-purpose machine designed to automatically apply pressure-sensitive labels onto the front and/or wrapping labels onto round containers. CVC 432 using the advanced system(Self Set), through this system users can effortlessly set up the diverse parameters like the speed of the motor, label length, labeling speed.

It can also be ordered with an optional assembly for applying a label to 3, 4, or 5 panels of a square or rectangular container. Self Set inspecting all the parameters. Moreover, CVC 432 will record every data and able to output. CVC 432 can satisfy all your requirements. Multiple applications but 1 Machine!

STANDARD FEATURES

  • Self-Set Auto Adjusting Control System
  • HMI touch screen
  • Stainless Steel Frame on lockable casters
  • Stainless Steel flatbed conveyor with table top chain
  • Servo Motor control
  • Label head with up to ±1mm accuracy
  • Variable Speed Separator Wheel
  • Type 304 stainless steel construction
  • ISO 9001 : 2015 certified

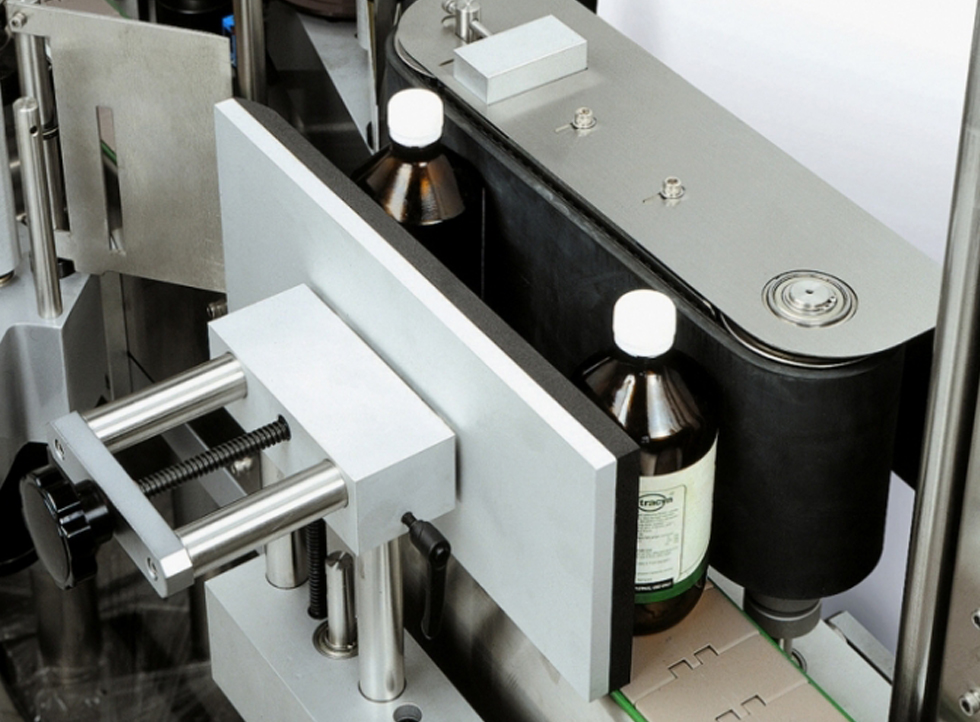

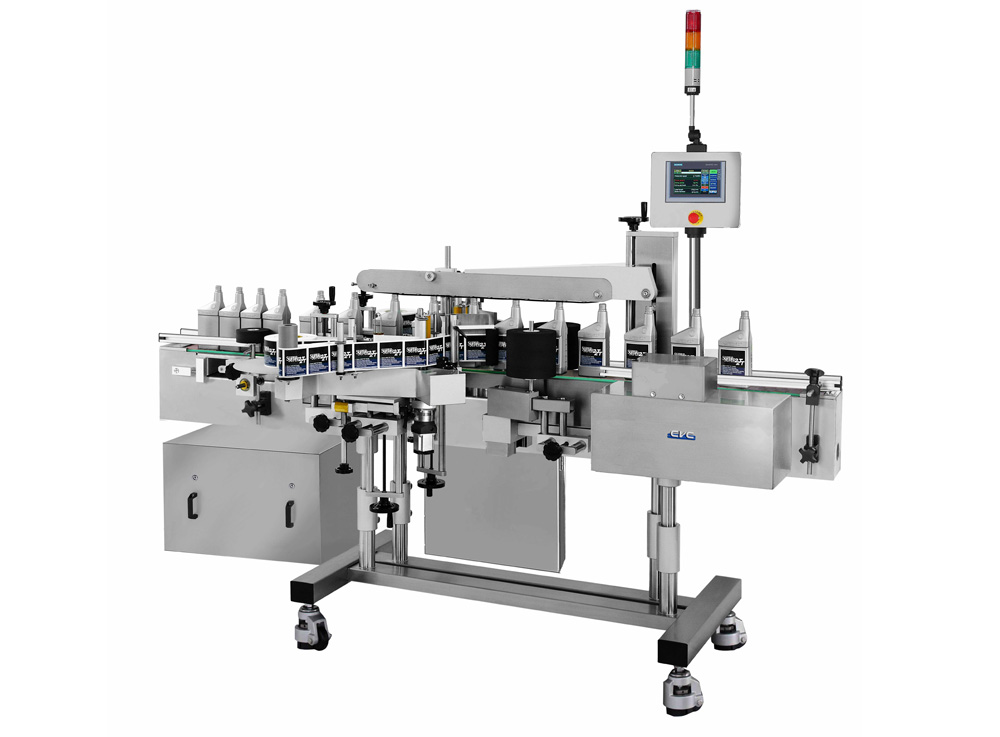

CVC 432
CVC 432
CVC 432
CVC 432

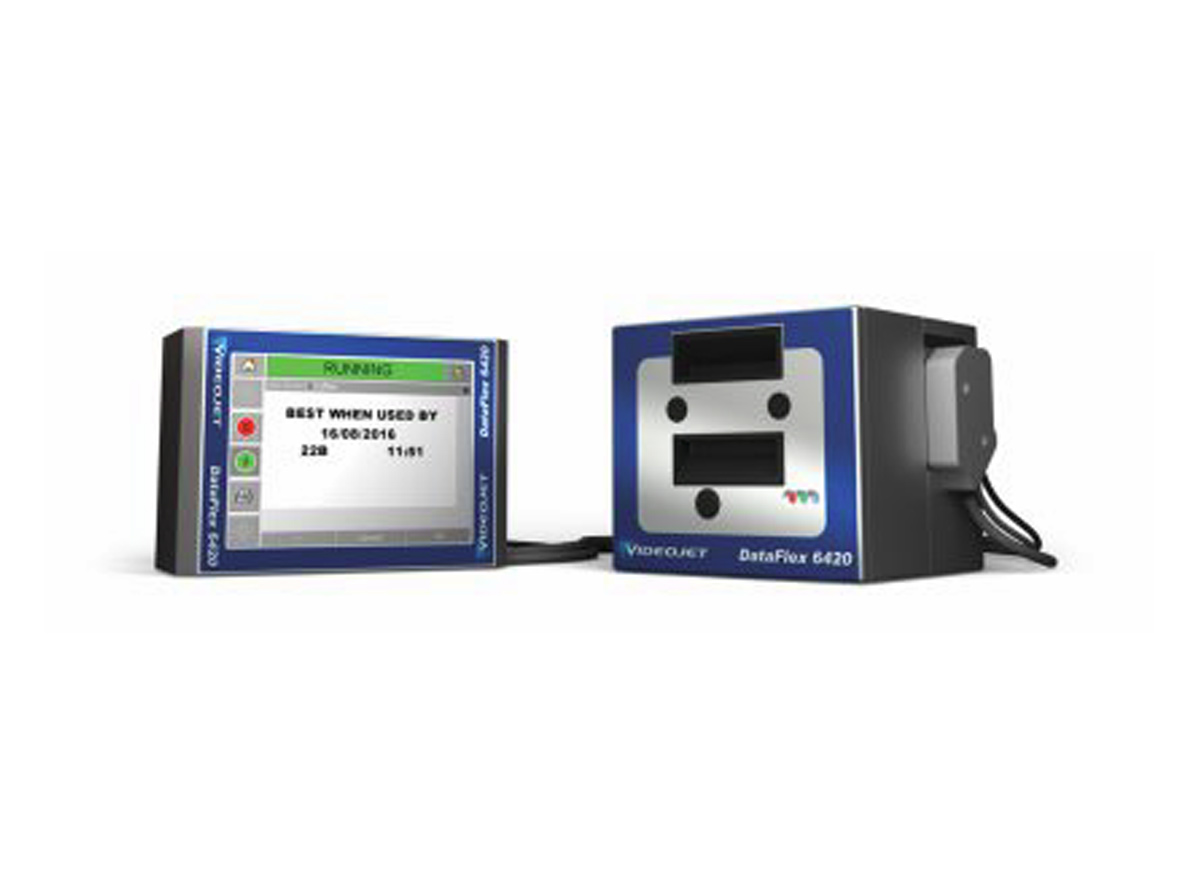

THERMAL TRANSFER PRINTER
THERMAL TRANSFER PRINTER
Previous Next Play Pause
CVC 432 CVC 432 THERMAL TRANSFER PRINTER

TECHNICAL SPECIFICATIONS

AVAILABLE OPTIONS:

  • Hot Stamp (Lot/Date Coding)
  • Integrated Thermal Encoder (Lot/Date, Bar Code and Graphics)
  • Adjustable Tilt for Tapered Bottles
  • Bottle Rejection system ( air blow or cylinder)
  • Clear Label Sensor
  • Custom Wrap Belts and Feed Screw
  • Infeed and Outfeed Conveyor Extensions
  • Bar Code verification
  • Low Label (Factory Installed Only)
  • Missing Label Detection System (UV)
  • Automatically generate the report on system
  • Oufeed Turntable
  • Missing Imprint Check system
  • 21 CFR PART 11 compliance
  • OPC UA for data collection



MACHINE LAYOUTS:

The dimensions shown are for standard machine. The conveyor can be extended: the length may var y based on selected options. This machine can run independently or be integrated into an automated packaging line. All CVC equipment is covered by a one-year parts warranty. Full Warranty details are included in our equipment proposals or can be found on our website.

All CVC labelers include our patented Self Set™ software which utilizes a high frequency encoder for extremely easy setup and wrinkle free labeling at the touch of a button.

Note: The actual rates may var y significantly depending on the following: products, product characteristics, required fill counts, quantity or volume, and bottle dimensions.

Technical Specifications CVC 432 Technical Specifications
Applicable Bottle Diameter Ø1¼" to Ø4¼" (Ø30 mm - Ø110 mm)
Bottle with Cap Height 2" to 8¾" (50 mm - 220 mm)
dependent on conveyor width
Applicable Size Length Flat Bottle: 1¼" to 8" (30 mm - 200 mm)
Square Bottle: 1¼" to 4¼" (30 mm - 110 mm)
Width 1¼" to 4¼" (30 mm - 110 mm)
Height 2¾" to 12½" (75 mm - 320 mm)
Power 220V, single phase, 950 VA (4.3 Amp)
Air Pressure 6 bar (87 psi) (ISO 8573-1)
Air Consumption 78.5 NLit/m (2.8cfm) (for optional reject and Lot/Date printer)
Consumption Machine Dimensions 8'-7" x 4'-11" x 7'-5" (2,615 mm x 1,490 mm x 2,260 mm) (L x W x H)
Speed Rates in Excess of 260 Bottles Per Minute (Format Dependent)
Label Width / Height Configurable from ½" to 11½" (15mm - 265mm) dependent on label head type
Label Length ½” to 10" (15mm - 250mm)
Label Roll Max 14" (356mm) outside diameter with 3" (76mm) core
Conveyor Width Configurable up to 4" (100mm)
Conveyor Length Standard 103" (2615mm) (Extendable)
Machine Weight 400 kg (881 lbs)
Noise Level ≦ 75 dB
