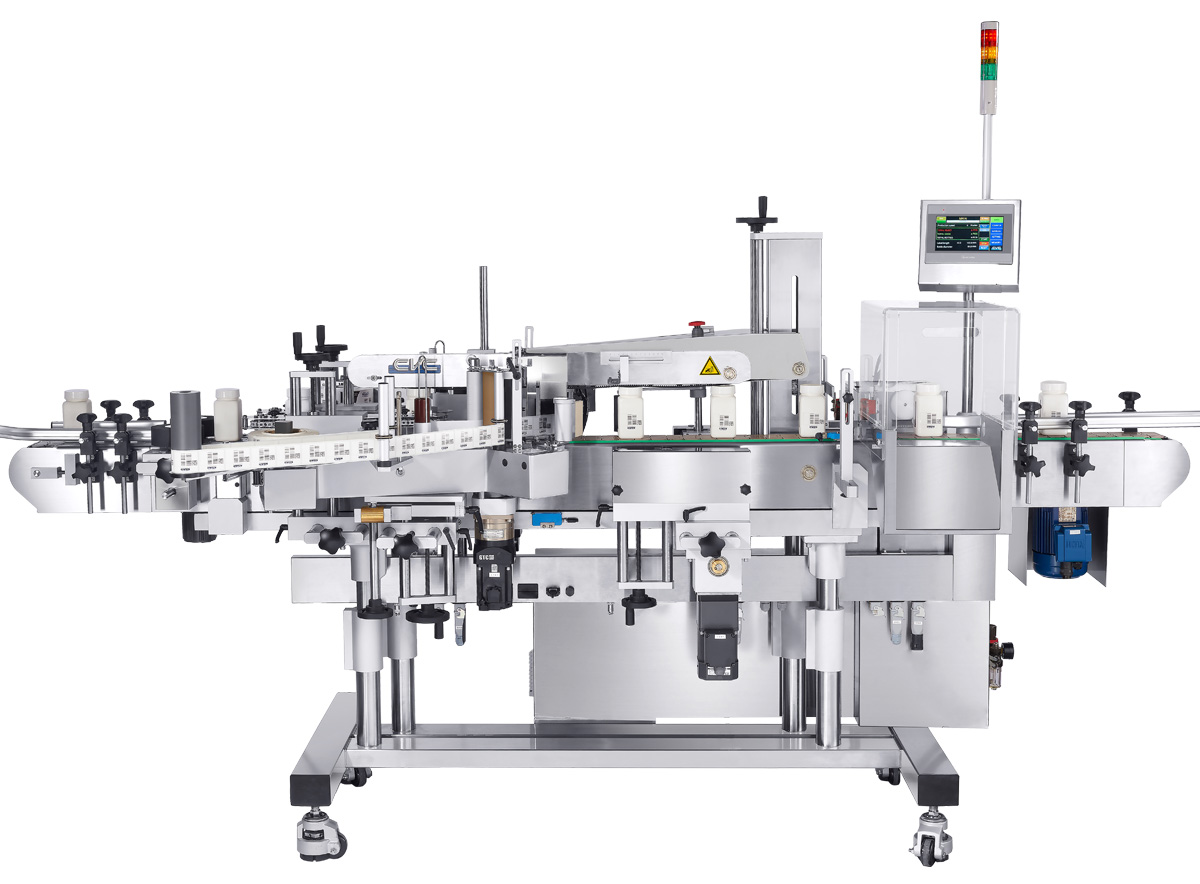

FRONT and BACK LABELER with WRAP STATION

CVC 430.U2

CVC Front and Back Labeler with Wrap Station CVC 430.U2 is Dual-purpose machine designed to automatically apply pressure sensitive labels onto square or rectangular containers, and wrapping labels onto round containers.

It can also be ordered with an optional assembly for applying a label to 3, 4, or 5 panels of a square or rectangular container. The CVC 430.U2 can satisfy all your requirements. Multiple applications but 1 Machine!

STANDARD FEATURES

  • SelfSet™ Auto Adjusting Control System
  • Servo Motor Driven Label Head

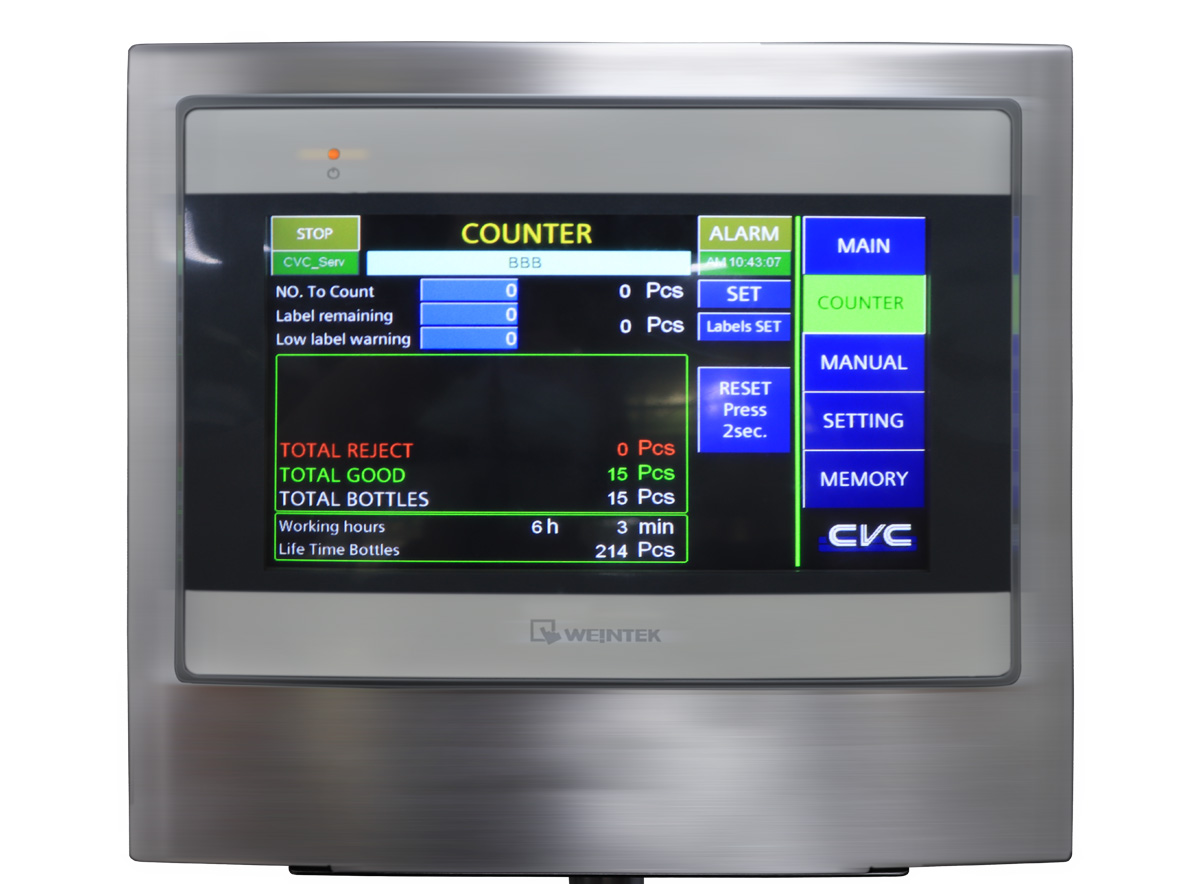

  • Touch Screen HMI
  • Label Head with up to ± 1 mm (1/32”) Accuracy

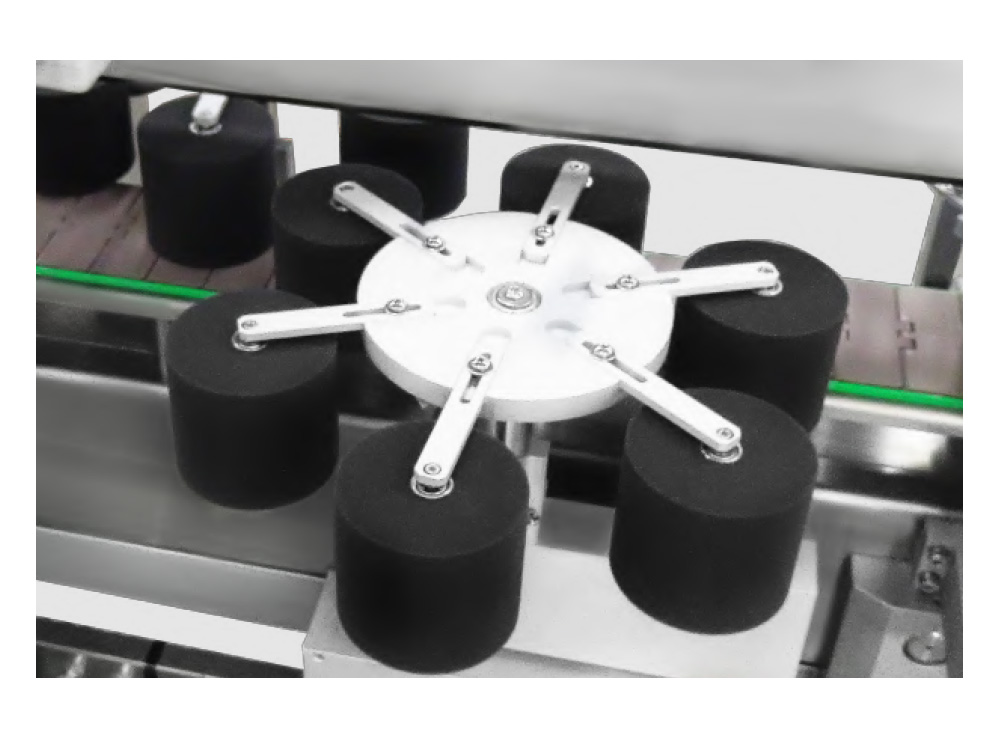

  • Separator Wheel for Controlled Spacing
  • Top Hold Down Belt Assembly
  • Stainless Steel Frame on Lockable Casters
  • Stainless Steel Conveyor with Top Chain
  • Product sensor with opaque and clear bottle mode
  • Variable speed separator wheel
  • Type 304 Stainless Steel Frame, Enclosure Panels

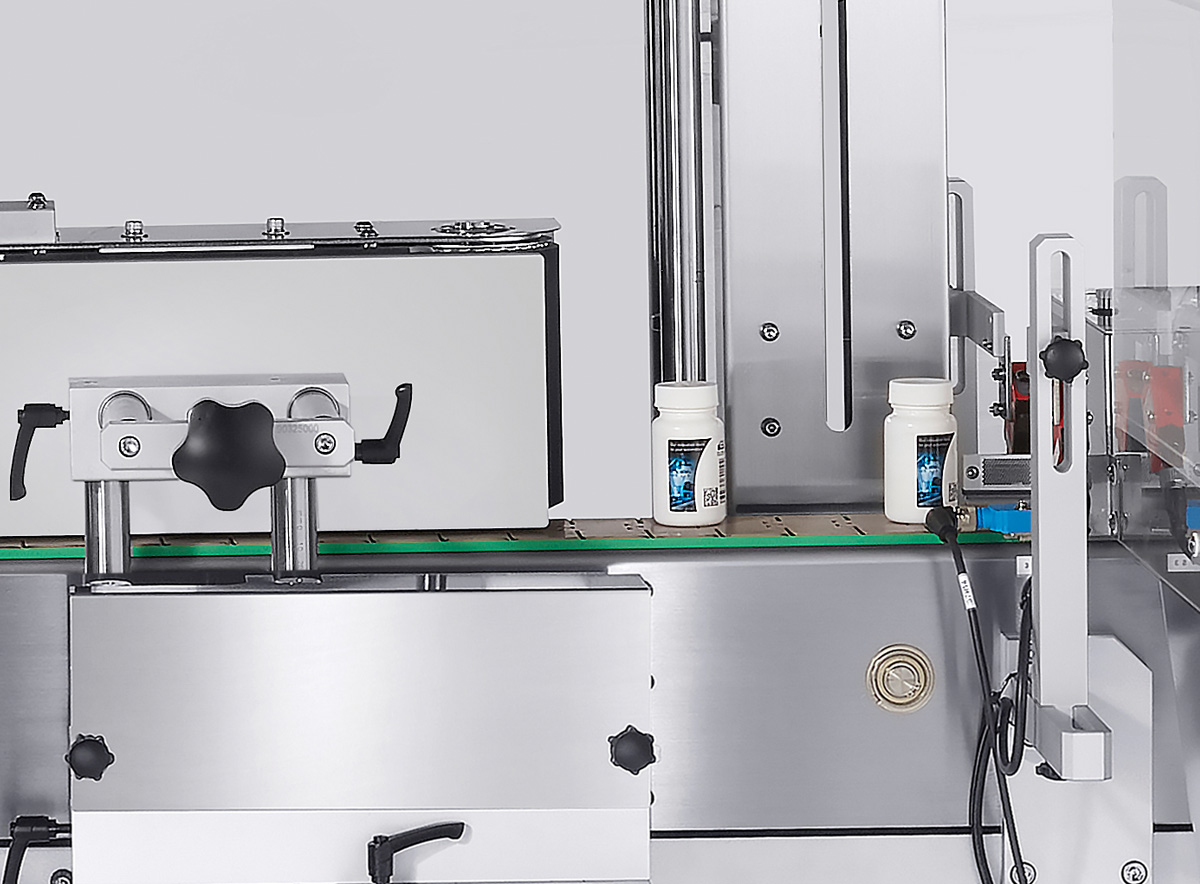

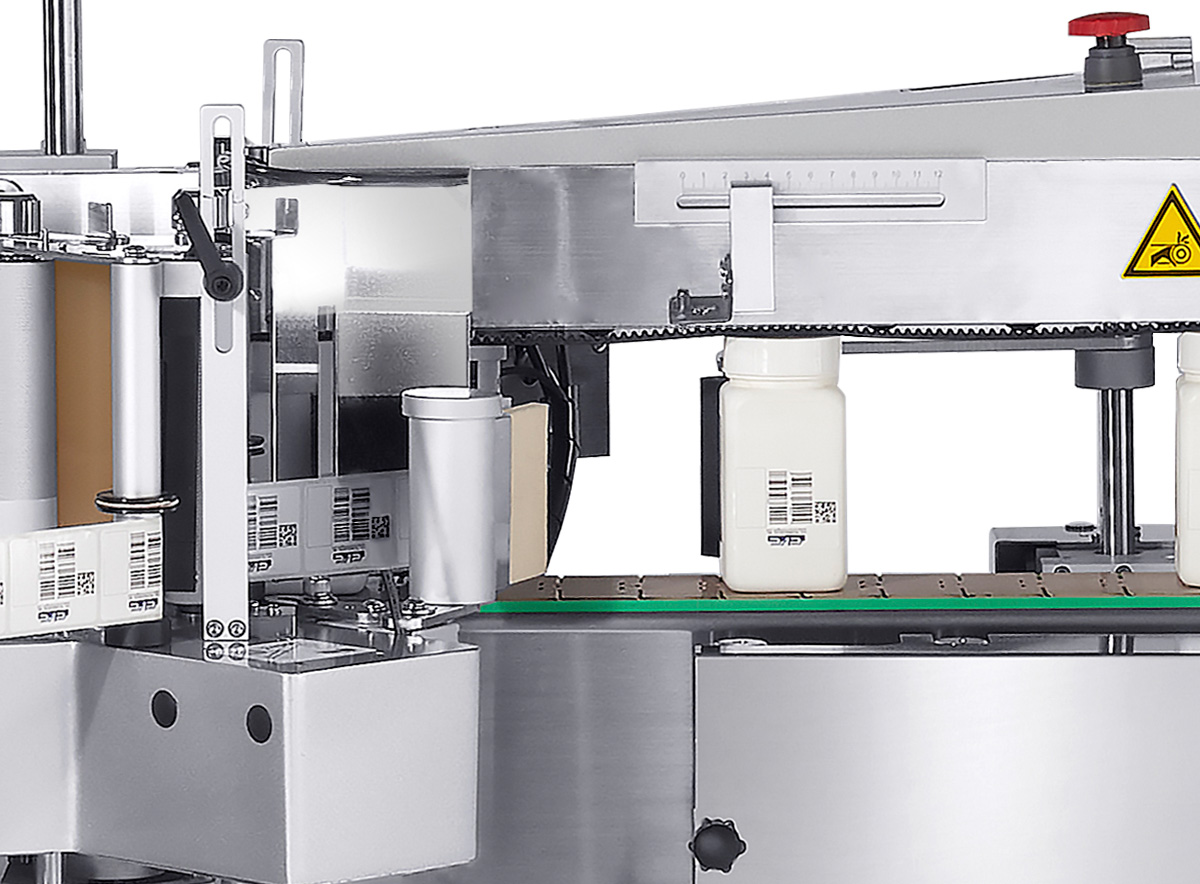

CVC 430.U2
CVC 430.U2
CVC 430.U2
CVC 430.U2
CVC 430.U2
CVC 430.U2
CVC 430.U2
CVC 430.U2
5-panel wrap station. (option)
5-panel wrap station. (option)
Previous Next Play Pause
CVC 430.U2 CVC 430.U2 CVC 430.U2 CVC 430.U2 5-panel wrap station. (option)

TECHNICAL SPECIFICATIONS

AVAILABLE OPTIONS:

  • C60 Hot Stamp (Lot/Date Coding)
  • Missing Hot Stamp Imprint Check
  • Integrated Thermal Printer (Lot/Date, Bar Code and Graphics)
  • Dataflex or Similar Lot/Date Code Printer
  • Clear, Metalic or Color Label Sensor
  • End to end Transfer Plates
  • Infeed and outfeed Conveyor Extensions
  • Adjustable Tilt for Tapered Bottles
  • Feed Screw
  • Stainless Steel Raised Bed Sanitary Conveyor (Factory installed only)
  • Push and Press Attachment
  • 3-panel, 4-panel or 5-panel Labeling Attachments

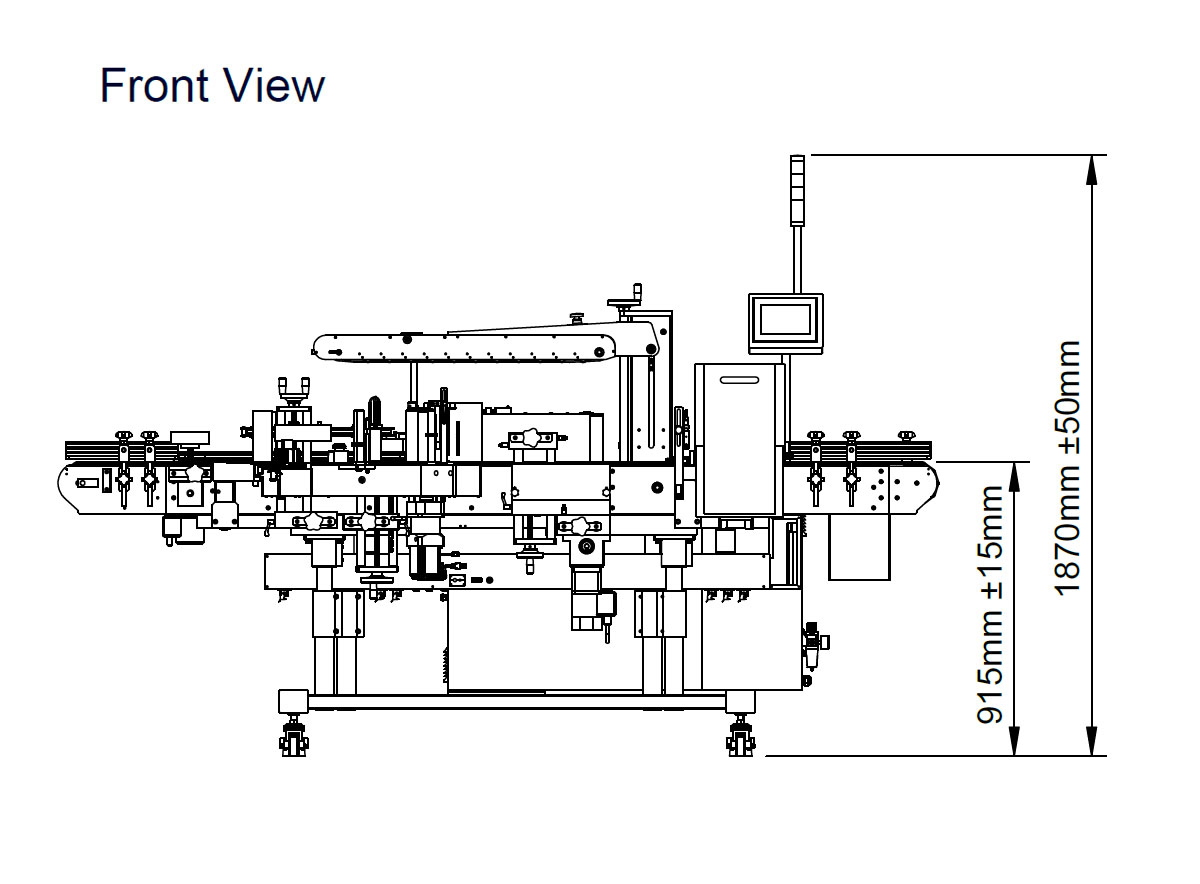

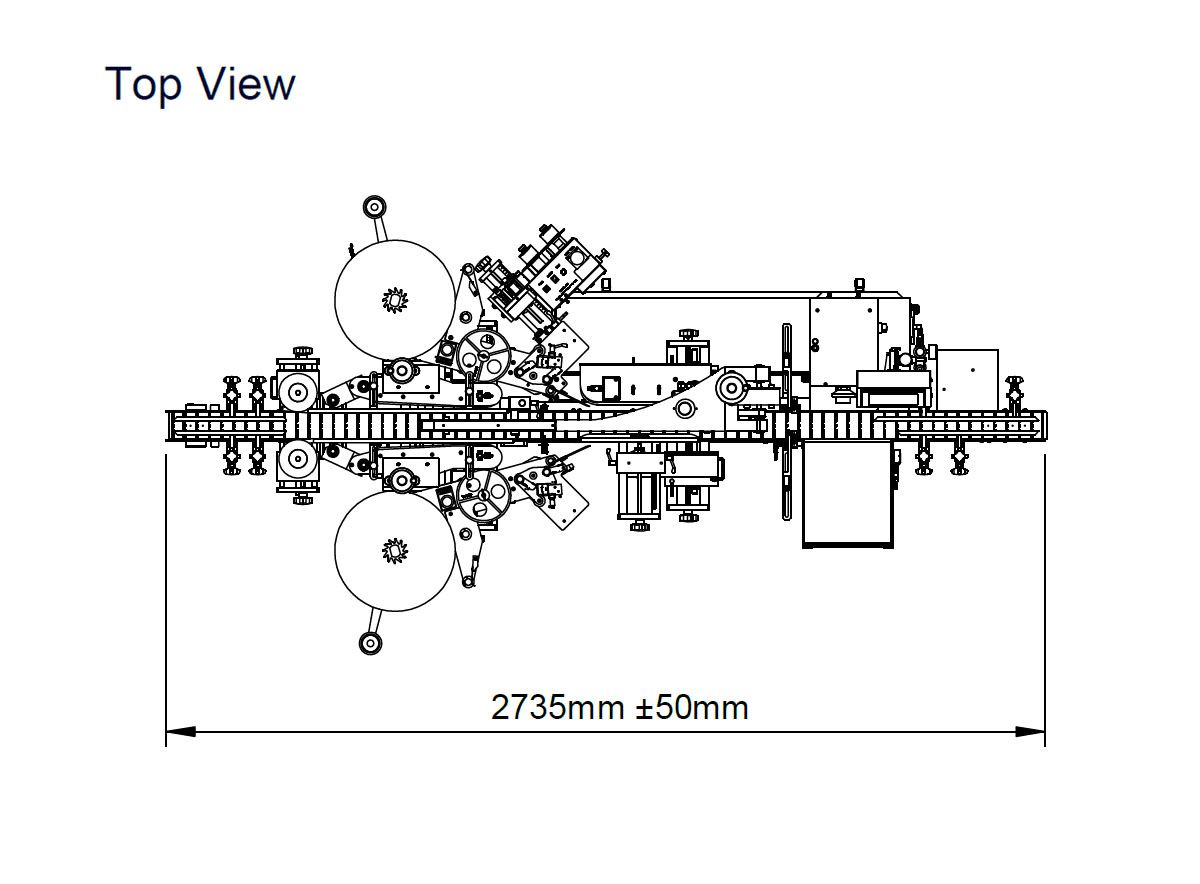

MACHINE LAYOUTS:

The dimensions shown are for standard machine. The conveyor can be extended: the length may var y based on selected options. This machine can run independently or be integrated into an automated packaging line. All CVC equipment is covered by a one-year parts warranty. Full Warranty details are included in our equipment proposals or can be found on our website.

All CVC labelers include our patented Self Set™ software which utilizes a high frequency encoder for extremely easy setup and wrinkle free labeling at the touch of a button.

Technical data contained in this material are not binding and may be subject to change without prior notice.

Technical Specifications CVC 430.U2 Technical Specifications
Type U2
Productivity Up to 260 BPM (base on L.60 x W.59 x H.120 mm square bottle,label L.50 x W.40 mm)
(subject to trial confirmation) Up to 230 BPM (base on Ø 41 x H.80 mm round bottle, label L.50 x W.40 mm) (subject to
Applicable Size Label:
Length: 15-254mm (1⁄2” to 10”)
Width: (dependent on label head type)
A: 15-80 mm (1⁄2” to 3")
B: 15-120 mm (1⁄2” to 4 3⁄4”)
C: 15-150 mm (1⁄2”” to 6")
D: 15-180 mm (1⁄2”” to 7")
E: 15-220 mm (1⁄2”” to 8 3⁄4” )
F: 15-265 mm (1⁄2”” to 11 1⁄2” )
Flat/ Square Bottle:
Length: Flat Bottle: 30-110 mm (1 1⁄4” to 4 1⁄4” )
Square Bottle: 30-200 mm (1 1⁄4” to 8”)
Width: 30-110 mm (1 1⁄4” to 4 1⁄4”)
Round Bottle:
Dia.: Ø 30- 110 mm (1 1⁄4”- 4 1⁄4”)
Height: 50- 220 mm (2”- 8 3⁄4”)
Power source 110/220 V, 50/60 HZ, 1 PH
Power Consumption 1320 VA (110V: 12 A, 220V: 6 A)
Air Pressure 6 bar (87 psi)
Air Consumption 28.5 NL/min (1 CFM) (for optional reject)
128.5 NL/min (4.5 CFM) (for optional reject and Lot/Date printer)
Consumption Machine Dimensions 2,735 x 1,430 x 1,870 mm (9’ x 4’-8” x 6’-2”)( L x W x H )
Machine Weight 426 kg
Noise Level ≤ 75 dB
